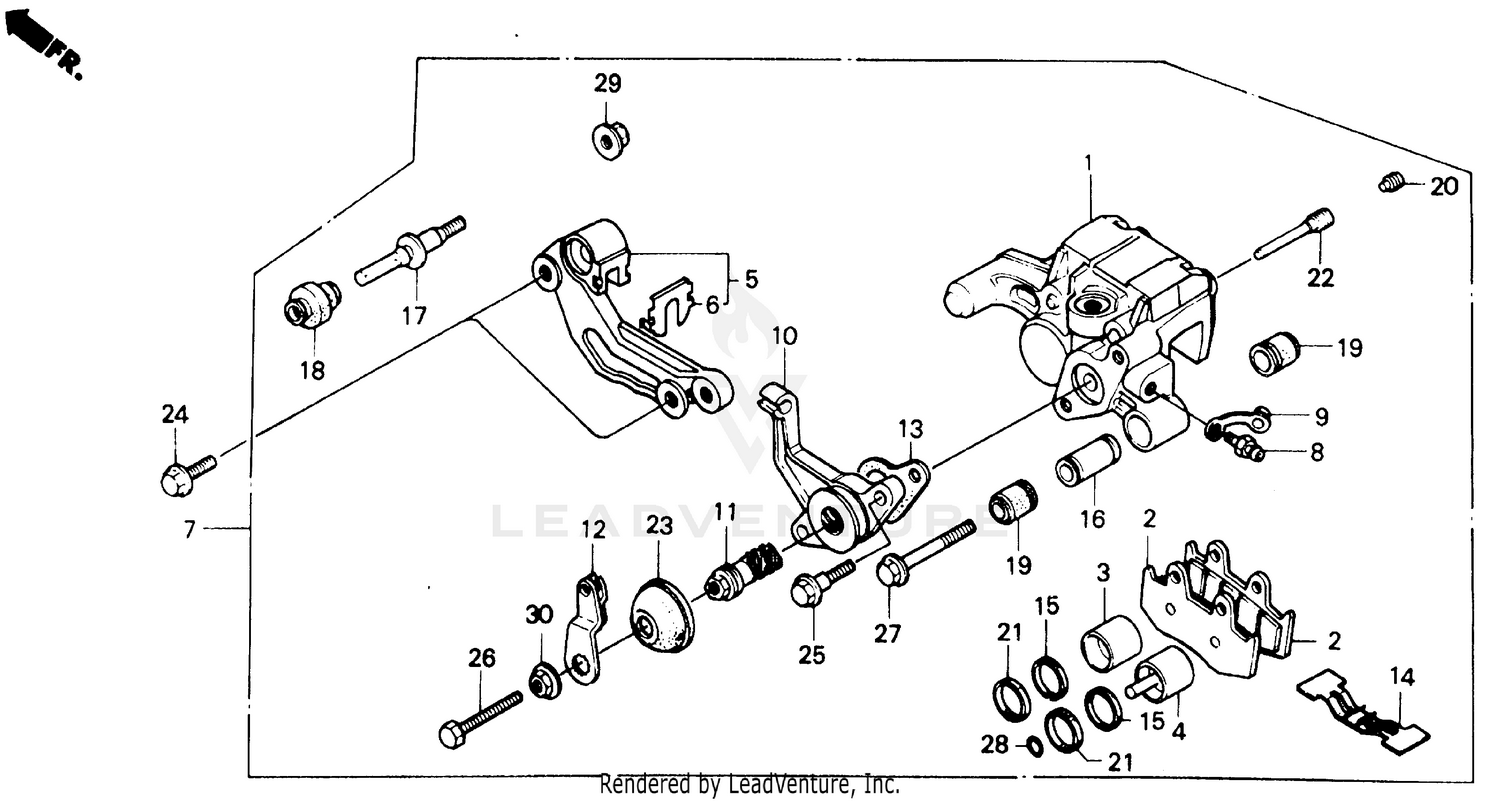

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
BRAKE PAD KIT
431A0-HB9-008
|
$34.91 | ||
|
Unavailable |
|||
|
#1
CALIPER, RR. (NOT AVAILABLE)
43101-HA2-006
|
$133.81 | ||
|
Unavailable |
|||
|
#2
PAD, RR. (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
43105-HB9-008
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (A)
43107-HA2-016
|
$30.31 | ||
|
Unavailable |
|||
|
#4
PISTON (B)
43108-HA2-016
|
$37.71 | ||
|
Unavailable |
|||
|
#5
BRACKET, RR. (NISSIN)
43110-HB9-771
|
$78.41 | ||
|
Unavailable |
|||
|
#6
RETAINER (NOT AVAILABLE)
43112-HA2-006
|
$4.71 | ||
|
Unavailable |
|||
|
#7
*43250-HB9-406
43200-HB9-771
Superseded by 43200-HB9-772
|
$287.23 | ||
|
Unavailable |
|||
|
#8
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRAKE, PARKING (NOT AVAILABLE)
43360-HA2-006
|
$36.75 | ||
|
Unavailable |
|||
|
#11
SHAFT, L.
43361-961-006
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM
43362-HA2-006
|
$11.58 | ||
|
Unavailable |
|||
|
#13
GASKET
43363-HA2-006
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING, PAD
45108-GE2-006
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL
45109-GE2-006
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
SLEEVE
45111-MA3-006
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT A, PIN
45131-MG3-006
|
$14.89 | ||
|
Unavailable |
|||
|
#18
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOOT, PIN
45133-166-016
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, PIN
45203-MG3-006
Superseded by 45203-MG3-016
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
Unavailable |
|||
|
#21
SEAL, PISTON
45209-GE2-006
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, HANGER
45215-KA3-731
Superseded by 45215-KA3-732
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, HANGER
45215-KA3-732
|
$13.95 | ||
|
Unavailable |
|||
|
#23
BOOT SEAL, MASTER CYLINDER
46184-611-000
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL, MASTER CYLINDER
46184-611-010
Superseded by 46184-611-000
|
$12.85 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (8X16)
90115-HA2-670
Superseded by 90123-KV0-000
|
$5.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X16)
90123-KV0-000
|
$5.65 | ||
|
Unavailable |
|||
|
#25
BOLT (8X25)
90116-410-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X40)
90126-961-006
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X40)
90126-HB9-771
Superseded by 90126-961-006
|
$6.47 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X49)
90180-MA3-006
Superseded by 90180-MN8-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (7.8X1.9)
91358-964-006
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-WASHER (8MM) (NOT AVAILABLE)
90315-HB9-770
|
$2.61 | ||
|
Unavailable |
|||
