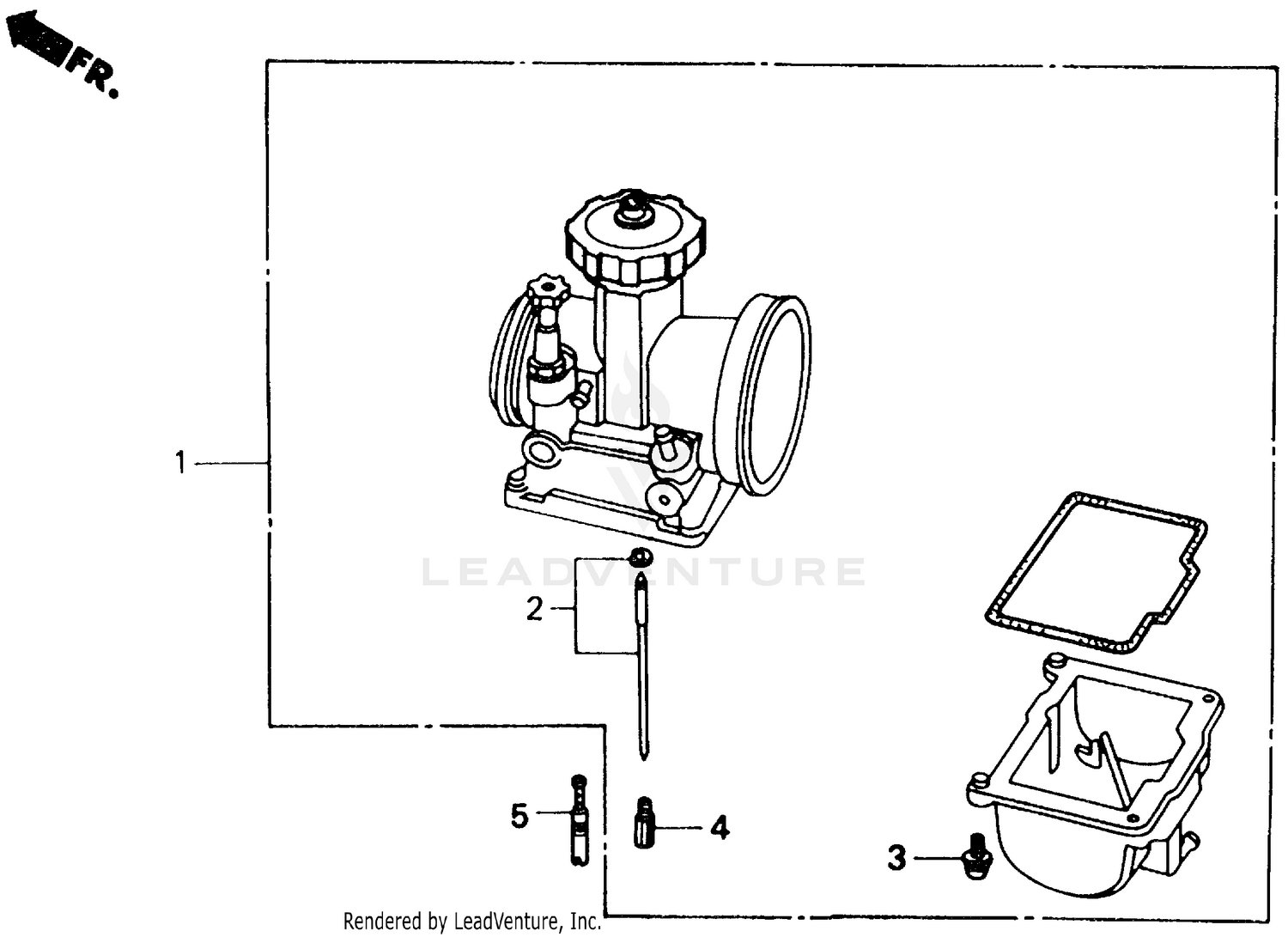

Carburetor Optional Parts Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PARTS KIT, CARBURETOR OPTIONAL
16020-HB9-742
|
$172.38 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (R1476JS) (NOT AVAILABLE)
16201-HB9-742
|
$16.34 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (R1472JS)
16202-HB9-741
|
$29.70 | ||
|
Unavailable |
|||
|
#3
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#152)
99101-357-1520
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#140)
99101-357-1400
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#158) JET, MAIN (#172)
99101-357-1580
Superseded by 99113-GHB-1580
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#158)
99113-GHB-1580
|
$11.44 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#142)
99101-357-1420
|
$10.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
JET, MAIN (#145)
99101-357-1450
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#148)
99101-357-1480
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#160)
99101-357-1600
Superseded by 99113-GHB-1600
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#162)
99101-357-1620
Superseded by 99113-GHB-1620
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#165)
99101-357-1650
Superseded by 99113-GHB-1650
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#160)
99113-GHB-1600
|
$11.44 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#165)
99113-GHB-1650
|
$11.40 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#150)
99101-357-1500
Superseded by 99113-GHB-1500
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#168)
99101-357-1680
Superseded by 99113-GHB-1680
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#150)
99113-GHB-1500
|
$11.11 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#170)
99101-357-1700
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#170)
99113-GHB-1700
Superseded by 99101-357-1700
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, SLOW (#45)
99103-KA3-0450
Superseded by 99103-GBF-0450
|
$16.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
JET, SLOW (#45)
99103-440-0450
Superseded by 99103-GBF-0450
|
$16.98 | ||
|
Unavailable |
|||
|
#5
JET, SLOW (#42)
99103-440-0420
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, SLOW (#40)
99103-KA3-0400
Superseded by 99103-GBF-0400
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, SLOW (#40)
99103-440-0400
Superseded by 99103-GBF-0400
|
$15.98 | ||
|
Unavailable |
|||
|
#5
JET, SLOW (#38)
99103-KA3-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, SLOW (#38)
99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
|
#5
JET, SLOW (#38)
99103-440-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
|
#5
JET, SLOW (#48)
99103-440-0480
Superseded by 99103-GBF-0480
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
