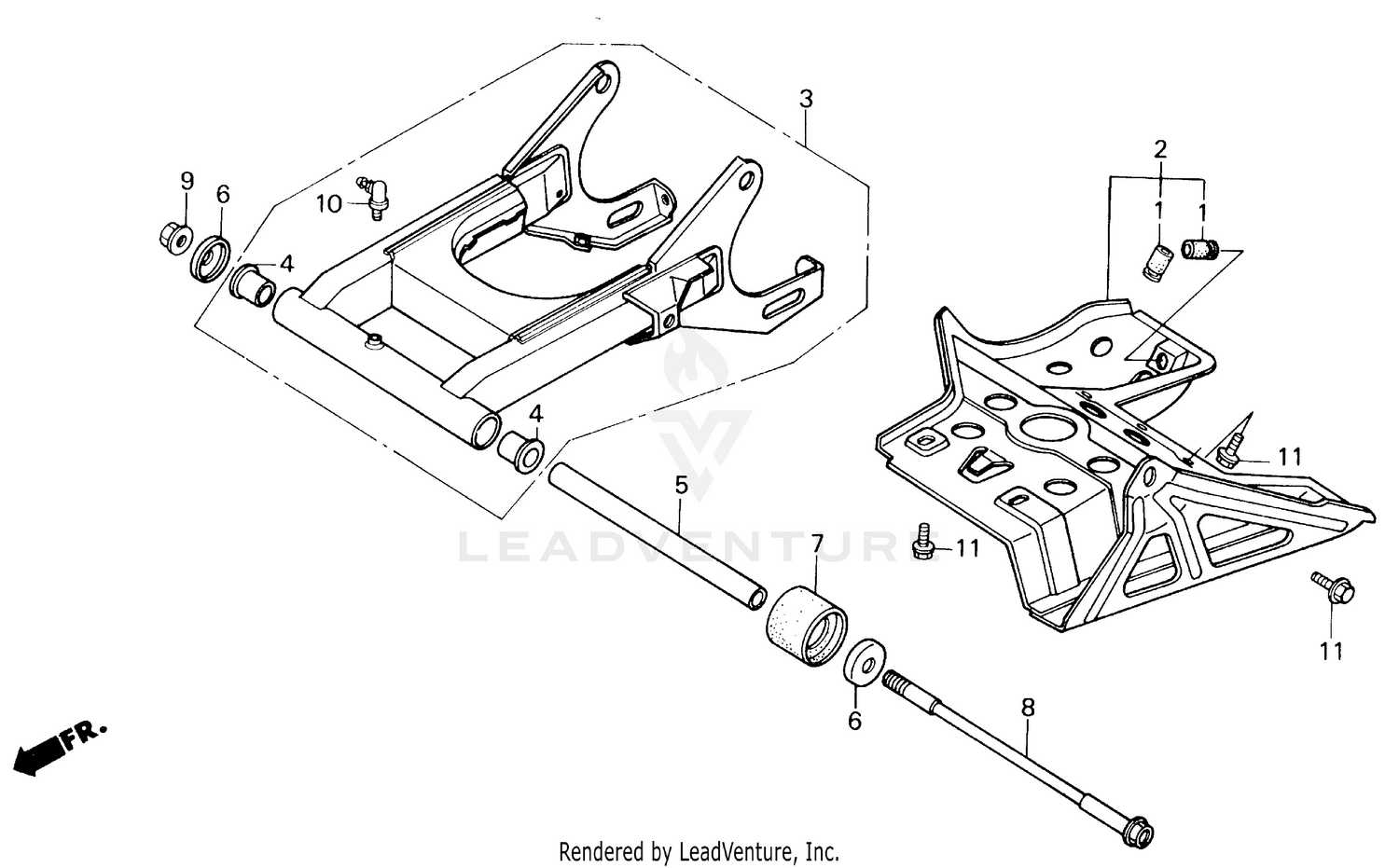

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER A, STOPPER
50352-434-000
|
$6.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PLATE, SKID (NOT AVAILABLE)
50355-HB3-000
|
$89.76 | ||
|
Unavailable |
|||
|
#3
SWINGARM ASSY., RR. *NH1* (BLACK)
52100-HB3-000ZA
|
$210.58 | ||
|
Unavailable |
|||
|
#4
BUSH, SWINGARM
52108-HB3-000
Superseded by 52108-KE5-003
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SWINGARM
52108-KE5-003
|
$26.27 | ||
|
Unavailable |
|||
|
#5
COLLAR, SWINGARM CENTER
52141-HB3-000
|
$87.44 | ||
|
Unavailable |
|||
|
#6
CAP, SWINGARM DUST SEAL (NOK)
52144-GE2-003
Superseded by 52144-GE2-005
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, SWINGARM DUST SEAL (NOK)
52144-GE2-005
|
$19.71 | ||
|
Unavailable |
|||
|
#7
SLIDER, CHAIN
52170-HB3-000
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLIDER, CHAIN
52170-HF1-670
Superseded by 52170-HB3-000
|
$25.60 | ||
|
Unavailable |
|||
|
#8
BOLT, RR. SWINGARM PIVOT
90121-HB3-000
|
$61.74 | ||
|
Unavailable |
|||
|
#9
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FITTING, GREASE (C.76)
96201-60000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X14)
96500-08014-08
|
$1.41 | ||
|
Unavailable |
|||
