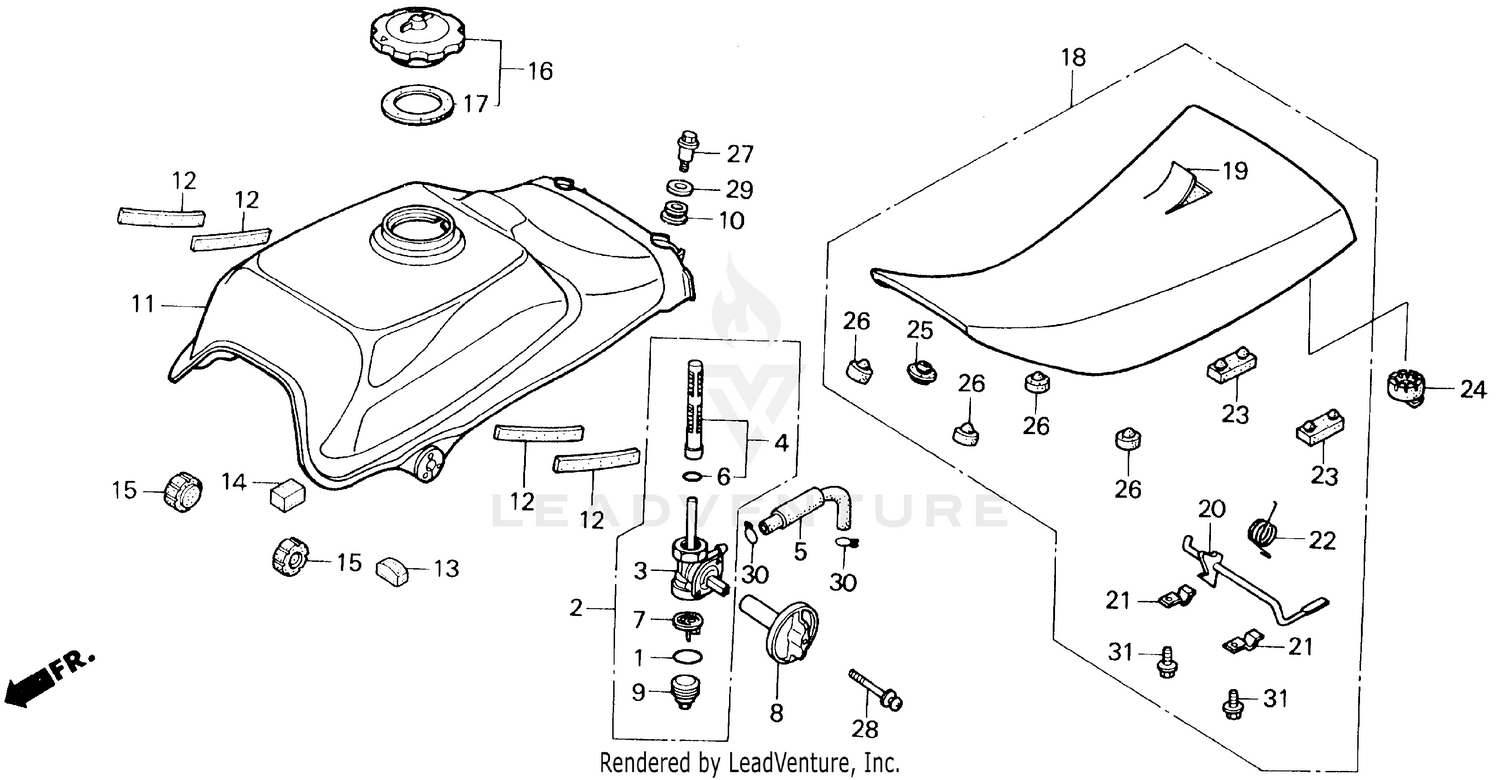

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-HB3-005
|
$68.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, VALVE
16951-HB3-005
|
$41.79 | ||
|
Unavailable |
|||
|
#4
SCREEN SET, FUEL STRAINER
16952-MA4-671
|
$37.04 | ||
|
Unavailable |
|||
|
#5
TUBE, FUEL (NOT AVAILABLE)
16956-HB3-000
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
16195-657-300
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
16958-MA1-731
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#7
FILTER, CUP
16959-HB3-005
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, PETCOCK (NOT AVAILABLE)
16963-HB3-000
|
$9.83 | ||
|
Unavailable |
|||
|
#9
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RUBBER, TANK SETTING (RR) (NOT AVAILABLE)
17509-HB3-000
|
$3.47 | ||
|
Unavailable |
|||
|
#11
TANK, FUEL
17510-HB3-000
Superseded by 17510-HB3-020
|
$531.10 | ||
|
Unavailable |
|||
|
#11
TANK, FUEL
17510-HB3-010
Superseded by 17510-HB3-020
|
$531.10 | ||
|
Unavailable |
|||
|
#11
TANK, FUEL
17510-HB3-020
|
$531.10 | ||
|
Unavailable |
|||
|
#12
RUBBER, TANK SPACER
17511-HB3-300
|
$13.81 | ||
|
Unavailable |
|||
|
#13
RUBBER, TANK MOUNTING (A)
17512-HB3-000
|
$15.15 | ||
|
Unavailable |
|||
|
#14
RUBBER, TANK MOUNTING (B)
17513-HB3-000
|
$15.15 | ||
|
Unavailable |
|||
|
#15
RUBBER, FR. TANK
17611-437-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL FILL CAP (TOYOSHA)
17620-VM6-013
Superseded by 17620-HC3-505
|
$55.54 | ||
|
Unavailable |
|||
|
#16
FUEL FILL CAP (TOYOSHA)
17620-HC3-771
Superseded by 17620-HC3-505
|
$55.54 | ||
|
Unavailable |
|||
|
#17
GASKET
17631-VM6-300
Superseded by 17631-899-010
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
17631-899-000
Superseded by 17631-899-010
|
$7.96 | ||
|
Unavailable |
|||
|
#18
SEAT ASSY. *NH100L* (OLYMPIC GRAY)
77100-HB3-000ZA
Superseded by 77100-HB3-415
|
$298.71 | ||
|
Unavailable |
|||
|
#18
SEAT ASSY. *NH100L* (OLYMPIC GRAY)
77100-HB3-770ZA
Superseded by 77100-HB3-415
|
$298.71 | ||
|
Unavailable |
|||
|
#18
SEAT ASSY. *NH100L* (OLYMPIC GRAY)
77100-HB3-405
Superseded by 77100-HB3-415
|
$298.71 | ||
|
Unavailable |
|||
|
#18
SEAT ASSY. *NH100L* (OLYMPIC GRAY)
77100-HB3-415
|
$298.71 | ||
|
Unavailable |
|||
|
#19
COVER, SEAT *NH100L* (OLYMPIC GRAY)
77101-HB3-000ZA
Superseded by 77101-HB3-840ZA
|
$116.48 | ||
|
Unavailable |
|||
|
#19
COVER, SEAT *NH100L* (OLYMPIC GRAY)
77101-HB3-840ZA
|
$116.48 | ||
|
Unavailable |
|||
|
#20
LEVER, SEAT LOCK
77105-HB3-000
|
$18.97 | ||
|
Unavailable |
|||
|
#21
BRACKET, LOCK LEVER
77106-HB3-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, SEAT LOCK
77107-958-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
RUBBER, SEAT SETTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, SEAT STOPPER
77211-MB0-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X27)
90109-HB3-000
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-WASHER (5X65)
90114-HB3-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, TANK SETTING
90505-961-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
