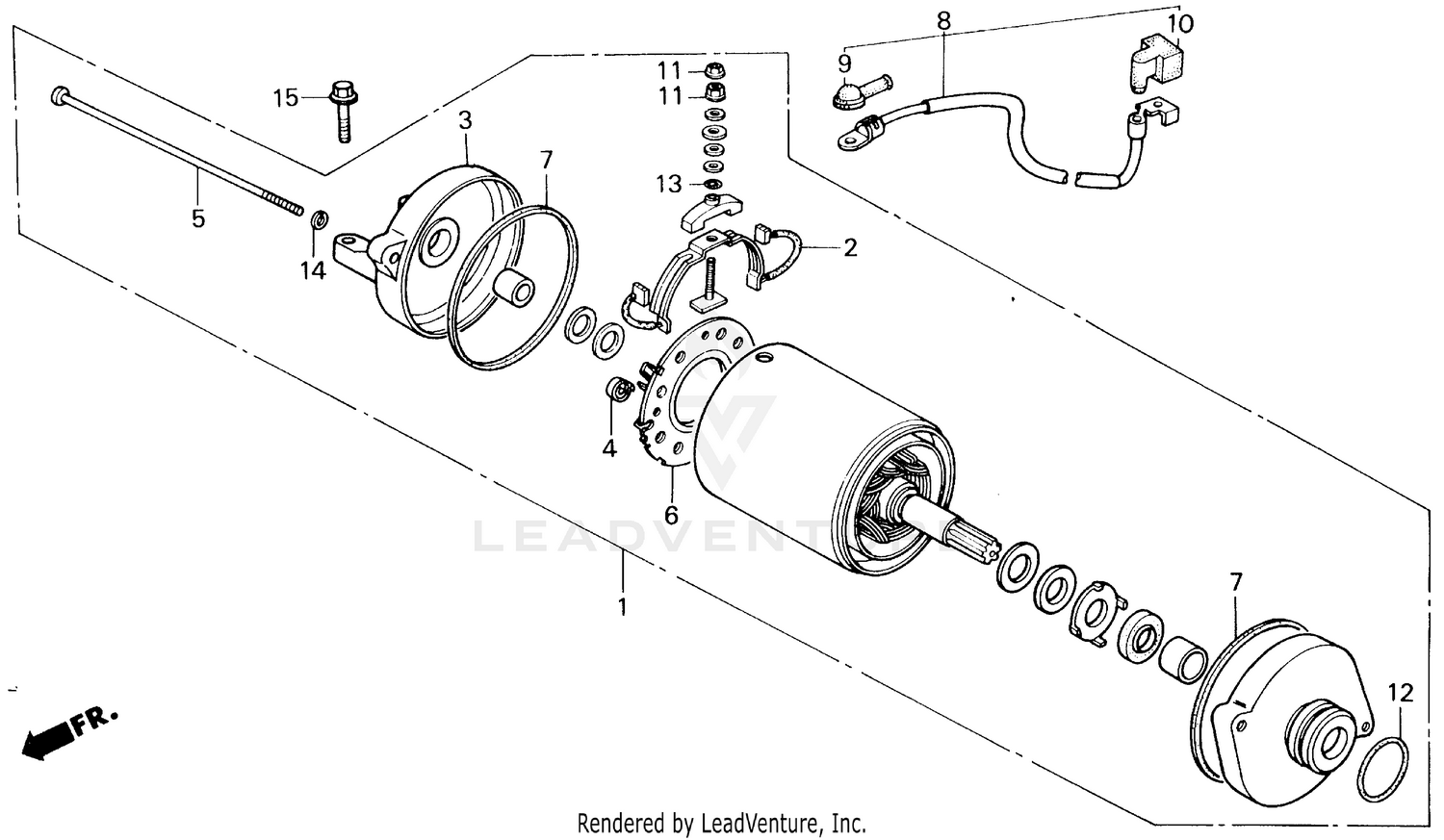

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-HB3-003
Superseded by 31200-HB3-405
|
$329.98 | ||
|
Unavailable |
|||
|
#2
TERMINAL SET, BRUSH
31201-KK6-008
Superseded by 31201-KM3-000
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH
31201-KM3-000
|
$19.60 | ||
|
Unavailable |
|||
|
#4
SPRING, CARBON BRUSH
31204-MA6-000
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-KJ9-000
Superseded by 31205-MN4-008
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-MN4-008
|
$6.64 | ||
|
Unavailable |
|||
|
#6
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31206-KK6-008
Superseded by 31206-MM5-008
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31206-MM5-008
|
$22.07 | ||
|
Unavailable |
|||
|
#7
RING, SEAL
31207-179-711
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, STARTER MOTOR
32402-HB3-000
|
$32.00 | ||
|
Unavailable |
|||
|
#9
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#10
COVER B, MAGNETIC SWITCH
32416-HB3-000
|
$4.69 | ||
|
Unavailable |
|||
|
#11
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#13
O-RING
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25)
95800-06025-00
Superseded by 95801-06025-00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.24 | ||
|
Unavailable |
|||
