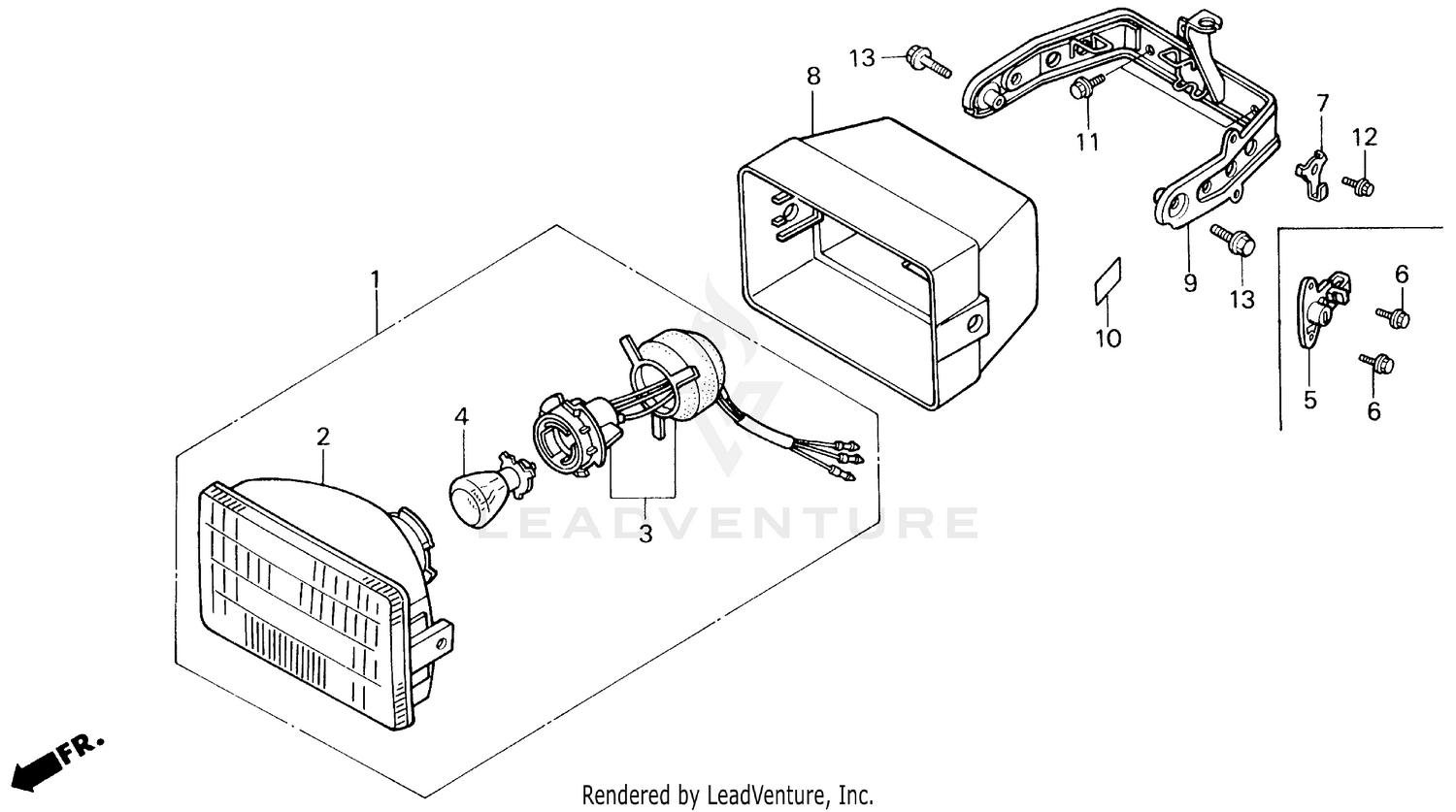

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY.
33100-HB3-003
Superseded by 33100-HB6-010
|
$75.31 | ||
|
Unavailable |
|||
|
#1
HEADLIGHT ASSY.
33100-HB6-000
Superseded by 33100-HB6-010
|
$75.31 | ||
|
Unavailable |
|||
|
#1
HEADLIGHT ASSY.
33100-HB6-010
|
$75.31 | ||
|
Unavailable |
|||
|
#2
UNIT, HEADLIGHT (NOT AVAILABLE)
33120-HB3-003
|
$73.61 | ||
|
Unavailable |
|||
|
#3
SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)
33130-HB3-003
|
$17.52 | ||
|
Unavailable |
|||
|
#3
SOCKET ASSY., HEADLIGHT
33130-HB6-000
|
$26.58 | ||
|
Unavailable |
|||
|
#4
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-HB6-003
Superseded by 34901-HC3-003
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-HC3-003
|
$12.82 | ||
|
Unavailable |
|||
|
#4
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-323-750
Superseded by 34901-HC3-003
|
$12.82 | ||
|
Unavailable |
|||
|
#5
HOLDER ASSY., HELMET
50710-HA8-681
|
$59.08 | ||
|
Unavailable |
|||
|
#6
BOLT, HELMET HOLDER SETTING
50711-HA8-680
|
$3.30 | ||
|
Unavailable |
|||
|
#8
CASE, HEADLIGHT *R109* (PASSION RED) (NOT AVAILABLE)
61301-HB3-003ZA
|
$69.51 | ||
|
Unavailable |
|||
|
#9
BRACKET, HEADLIGHT CASE (NOT AVAILABLE)
61311-HB3-000
Superseded by 61311-HB3-770
|
$51.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LABEL, HELMET HOLDER
87511-323-670
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X12)
90116-HA8-000
Superseded by 90190-MG3-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X12)
90190-MG3-000
|
$4.49 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X16)
96400-08016-00
Superseded by 96300-08016-00
|
$1.60 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (8X16)
96500-08016-00
Superseded by 96300-08016-00
|
$1.60 | ||
|
Unavailable |
|||
