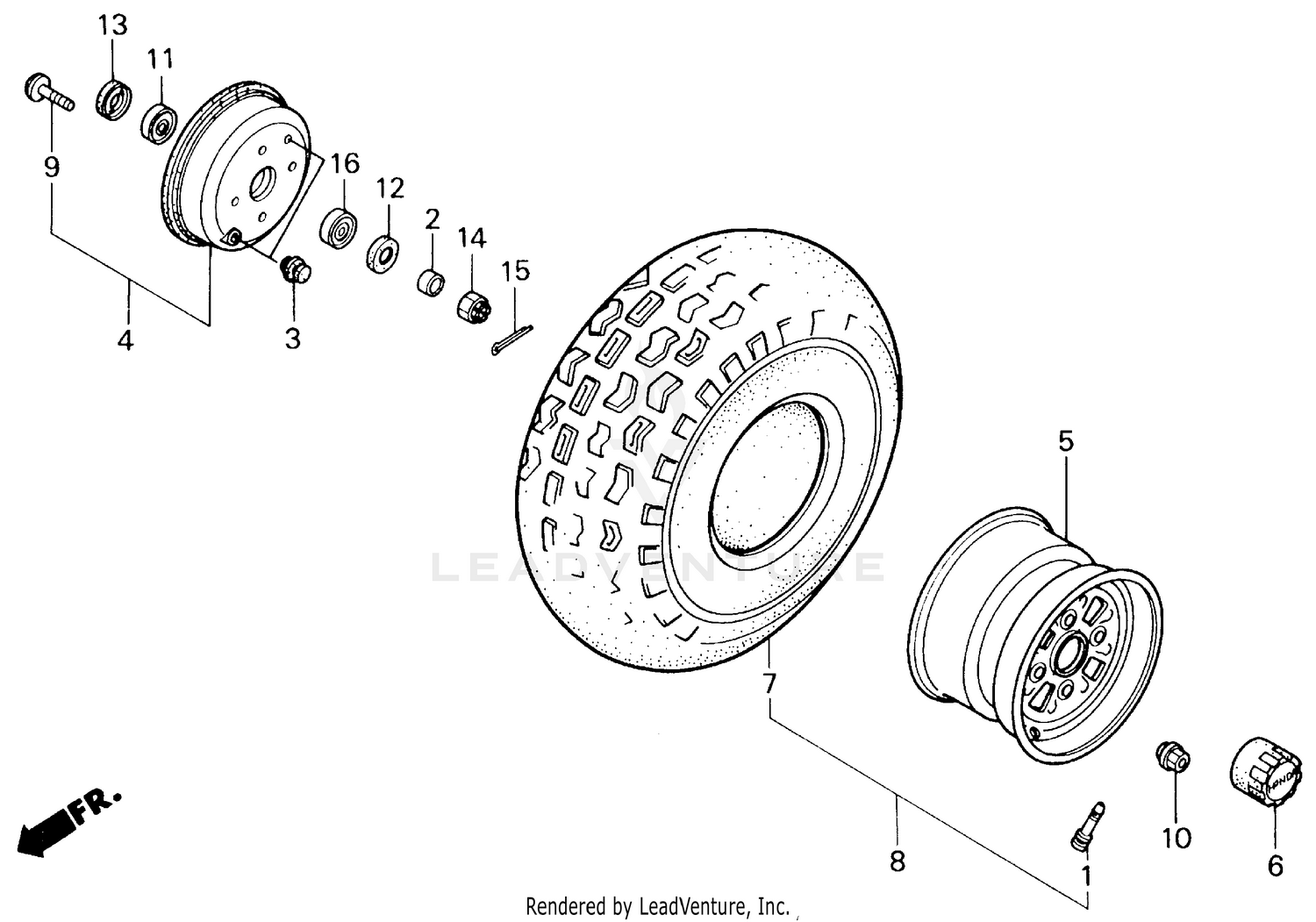

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, RIM (SCHRADER)
42753-SB8-661
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-SE0-A02
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#1
VALVE, RIM
42753-VM0-003
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-634-003
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-634-006
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-634-007
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-671-003
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#1
VALVE, RIM (SCHRADER)
42753-937-000
Superseded by 42753-SB8-661
|
$1.97 | ||
|
Unavailable |
|||
|
#2
COLLAR, FR. WHEEL SIDE
44312-HB3-000
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, WHEEL HUB
44602-VM0-000
|
$3.07 | ||
|
Unavailable |
|||
|
#4
HUB, FR. WHEEL
44610-HB3-000
|
$97.46 | ||
|
Unavailable |
|||
|
#5
RIM, FR. WHEEL (NOT AVAILABLE)
44701-HB3-000
Superseded by 44701-HB3-840
|
$127.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, FR. WHEEL CENTER (NOT AVAILABLE)
44732-HB3-000
|
$7.49 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-000
Superseded by 44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-003
Superseded by 44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-681
Superseded by 44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-682
Superseded by 44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#8
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-682
Superseded by 44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#8
TIRE, FR. (20X7.00-8) (OHTSU)
44751-VM6-682AT
|
$52.86 | ||
|
Unavailable |
|||
|
#9
BOLT, WHEEL (10X33)
90103-HA0-300
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WHEEL
90314-VM0-771
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (6904)
91051-HB3-000
|
$39.45 | ||
|
Unavailable |
|||
|
#12
DUST SEAL (35X20X7)
91257-HB3-003
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (37X25X6)
91258-HB3-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CASTLE (14MM)
94011-14000-0S
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#16
BEARING, RADIAL BALL (6202UU)
96150-62020-10
|
$11.23 | ||
|
Unavailable |
|||
