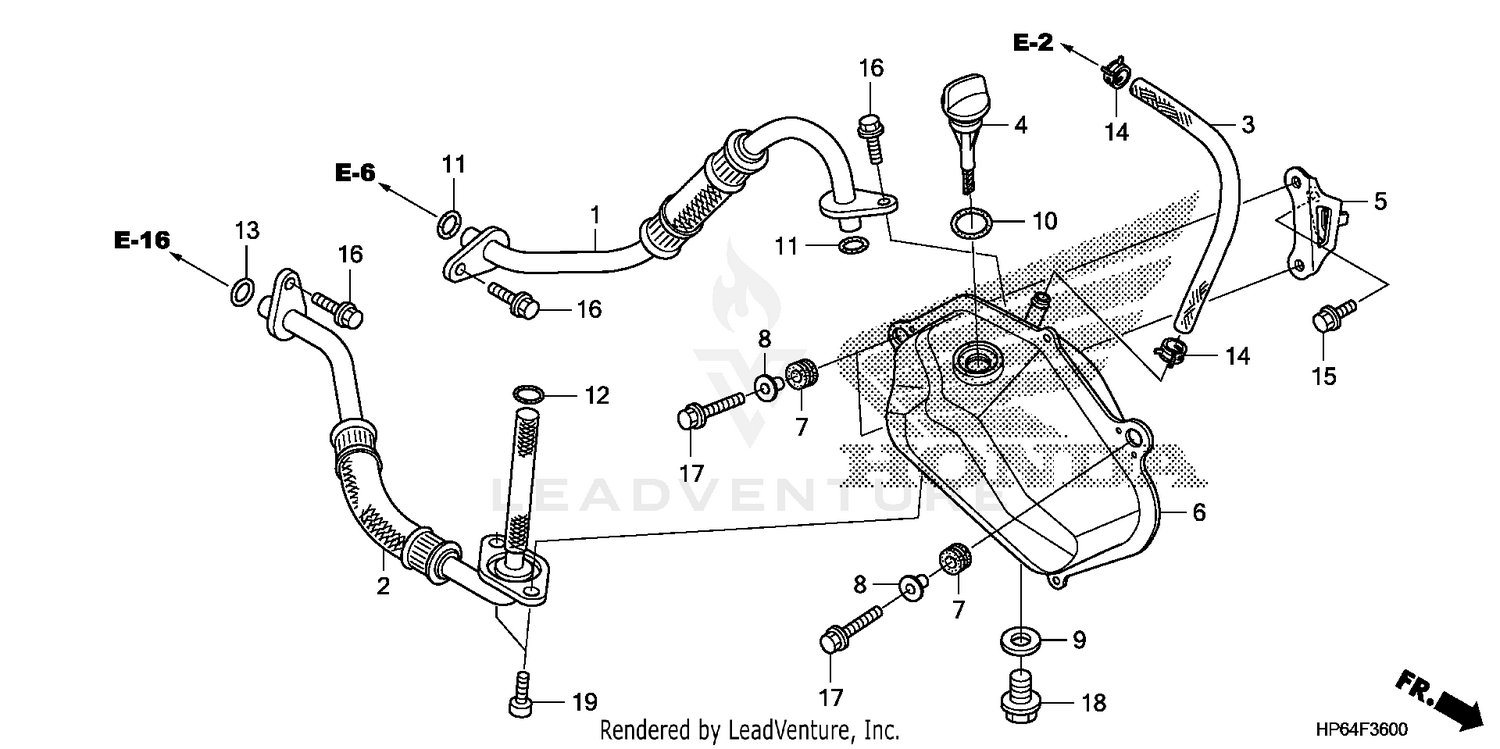

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE A, OIL
15510-HP6-A00
|
$184.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE B, OIL
15520-HP6-A00
|
$225.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OIL TANK BREATHER
15572-HP6-A00
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIPSTICK, OIL
15651-HP6-A00
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, OIL TANK
15805-HP6-A00
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, OIL
15810-HP6-A01
|
$308.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Unavailable |
|||
|
#9
WASHER, SEALING (10MM)
90441-425-000
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING (18X3) (ARAI)
91302-KE8-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (13X3.0)
91302-MB6-830
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (15X2.5) (Honda Code 0386995)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (9.6X2.6) (ARAI)
91305-639-000
Superseded by 91309-ML7-003
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (9.6X2.6) (ARAI)
91309-ML7-003
|
$2.43 | ||
|
Unavailable |
|||
|
#14
CLAMP, TUBE (D12.5)
95002-41250-00
|
$1.53 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (10X16)
95701-10016-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (6X18)
96600-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (6X18)
96700-06018-00
Superseded by 96600-06018-00
|
$1.47 | ||
|
Unavailable |
|||
