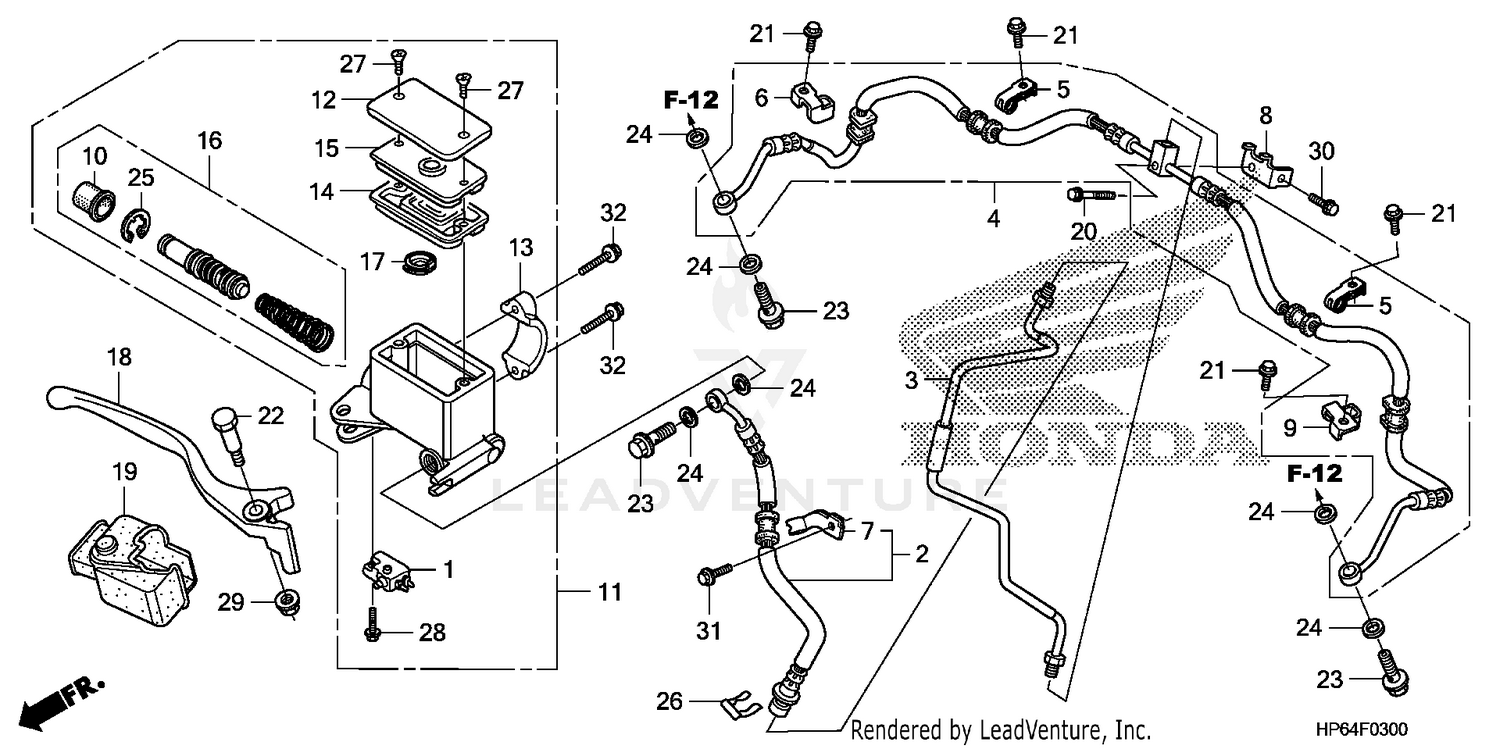

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP (COO)
35340-HR0-305
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
SWITCH ASSY., FR. STOP (COO)
35340-ML4-005
Superseded by 35340-HR0-305
|
$21.85 | ||
|
Unavailable |
|||
|
#2
HOSE ASSY. A, FR. BRAKE
45126-HP6-A01
|
$45.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, FR. BRAKE
45127-HP6-A00
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE ASSY. B, FR. BRAKE
45128-HP6-A01
|
$148.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP A, FR. BRAKE HOSE LOW
45461-HP6-A00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP B, R. FR. BRAKE HOSE
45462-HP6-A00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, FR. BRAKE HOSE (UPPER)
45463-HP6-A00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, BRAKE JOINT
45464-HP6-A00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP B, L. FR. BRAKE HOSE
45472-HP6-A00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-HP1-305
Superseded by 45510-HP1-601
|
$240.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-HP1-601
|
$240.60 | ||
|
Unavailable |
|||
|
#12
CAP, MASTER CYLINDER
45513-GW3-851
|
$26.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, MASTER CYLINDER
45517-GW0-751
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
MASTER CYLINDER SET
45530-HA8-771
|
$48.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEPARATOR
46666-HB9-006
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, R. HANDLEBAR
53175-HP6-A01
|
$21.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, R. HANDLE LEVER
53176-HC0-671
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X25) (NSHF)
90005-GHB-670
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X10) (NSHF)
90110-HP1-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HANDLE LEVER PIVOT
90114-166-006
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, BRAKE HOSE
90651-538-000
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, FLAT (4X12) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)
93600-04012-1A
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW-WASHER (4X14)
93893-04014-07
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-WASHER (4X14)
93893-04014-17
Superseded by 93893-04014-07
|
$1.16 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
