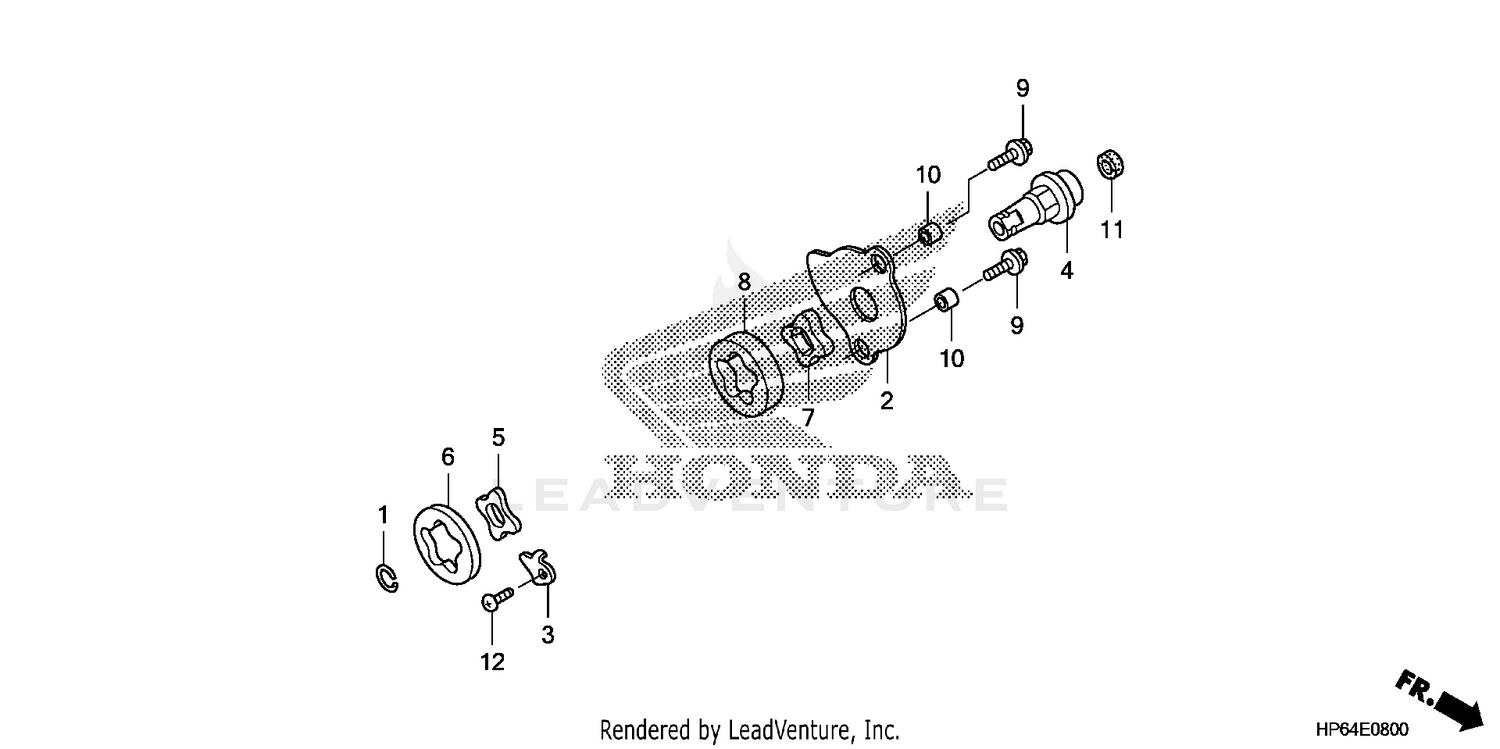

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, VALVE GUIDE
12211-250-310
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, OIL PUMP
15102-HP6-A00
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE A, OIL PUMP
15103-MBN-670
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, OIL PUMP
15111-HP6-A00
|
$58.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR A, OIL PUMP (INNER)
15115-HP6-A01
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR A, OIL PUMP (OUTER)
15116-HP6-A01
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR B, OIL PUMP (INNER)
15121-HP6-A01
|
$23.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR, OIL PUMP (OUTER)
15133-HP6-A01
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20) (NSHF)
90004-GHB-650
|
$2.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, DOWEL (8X8)
90702-MB0-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (6X11X4) (ARAI)
91231-891-003
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (4X8) SCREW, PAN (4X12)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.92 | ||
|
Unavailable |
|||
