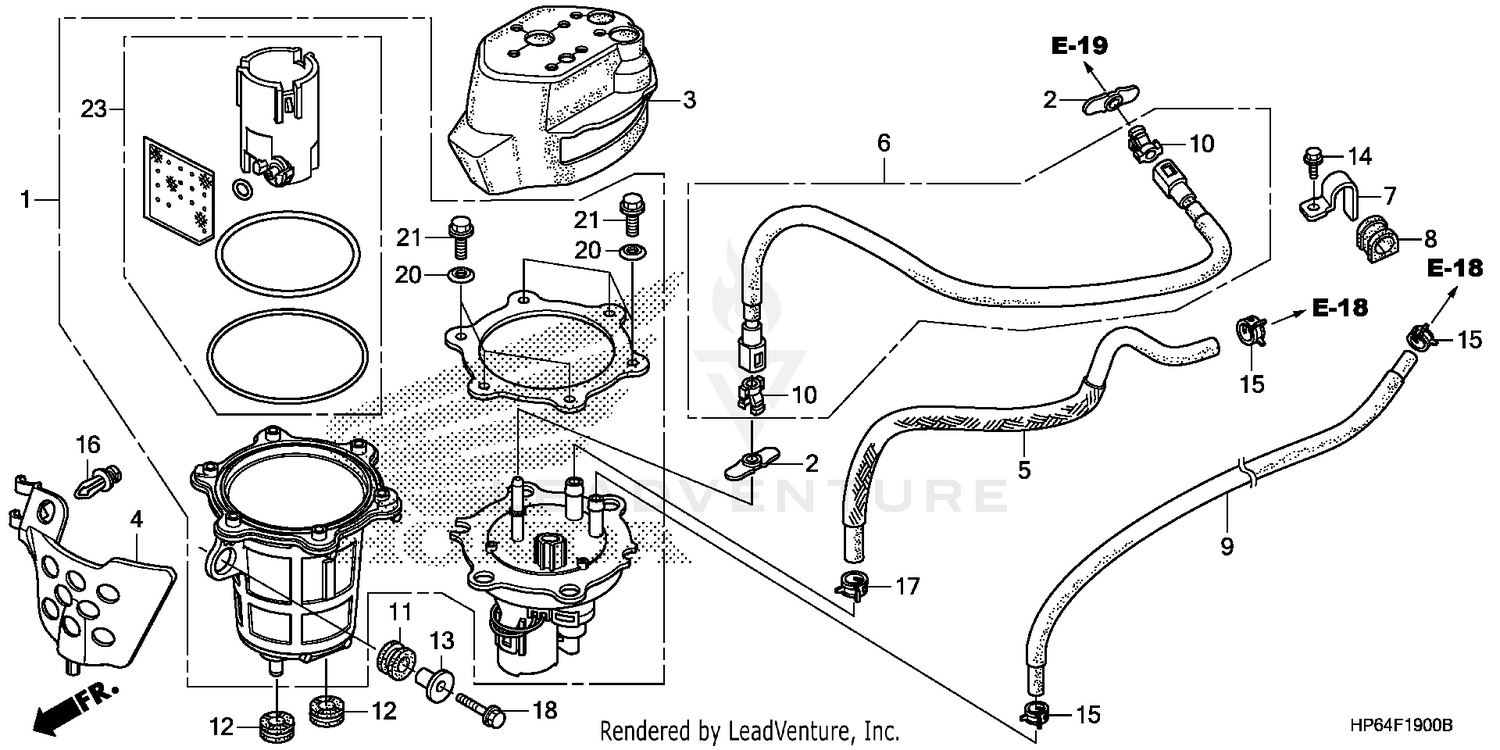

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-HP5-602
|
$220.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, FUEL JOINT
16719-HN8-A61
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FUEL PUMP
16720-HP6-A00
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, FUEL PUMP
16730-HP6-A00
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, FUEL
16955-HP6-A00
|
$26.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, FUEL FEED
16960-HP6-A01
|
$168.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, FUEL HOSE
17568-HP5-600
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, FUEL FEED HOSE
17579-HP5-600
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, VAPOR
17683-HP6-A00
|
$30.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER (GREEN) (TOKAI)
17711-S0X-A31
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MUFFLER
18334-KA3-830
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (5X10)
90002-892-000
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, TUBE (12.0)
90651-HN6-A51
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP, TUBE (D13)
95002-41300-08
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, CONICAL SPRING
90501-HN8-A60
|
$0.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)
16706-HN8-305
|
$50.78 | ||
|
Available to order. Add to View Price |
|||
