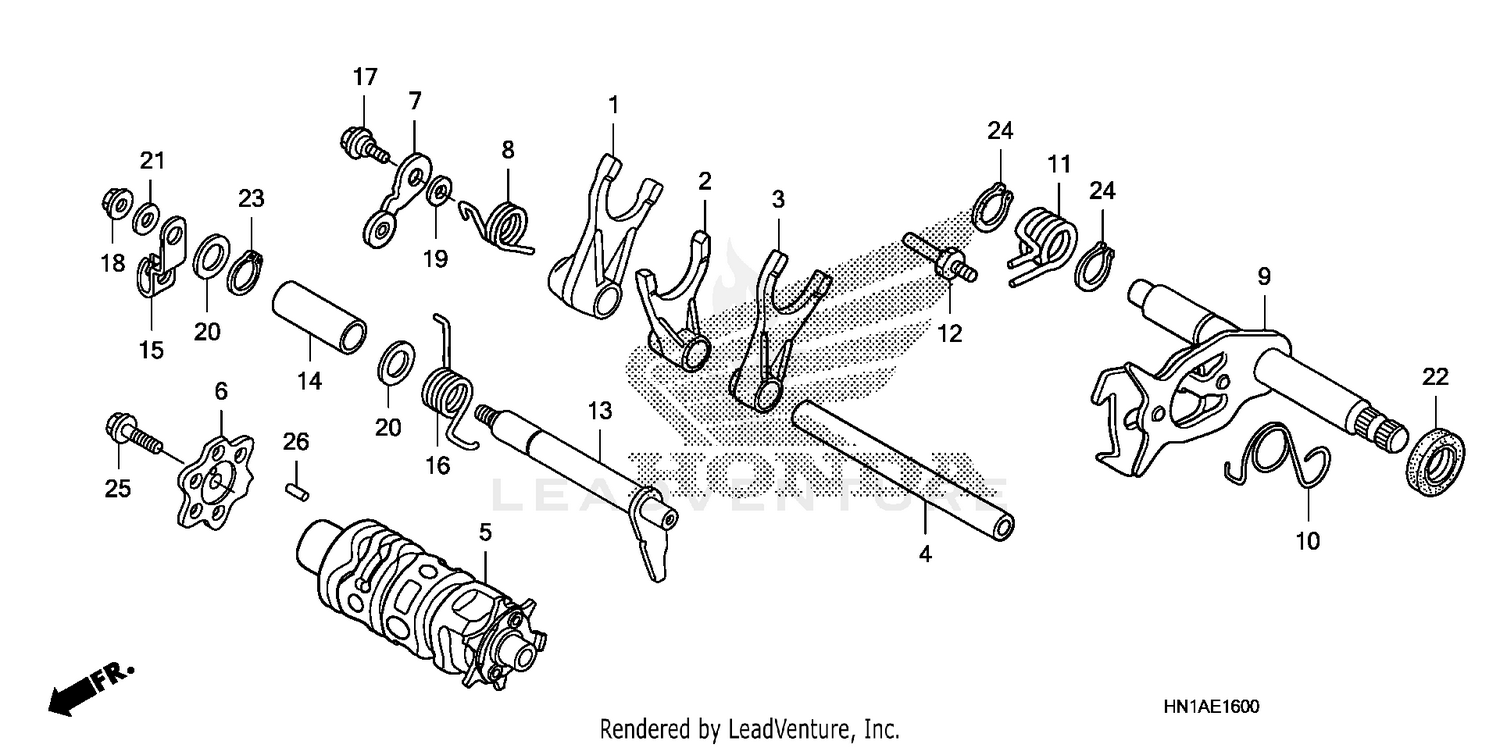

Shift Drum + Shift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-HN1-A40
|
$70.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24221-HN1-A40
|
$70.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, L. GEARSHIFT
24231-HN1-A40
|
$70.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-KCZ-000
|
$31.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT
24300-HN1-A40
|
$134.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM, GEARSHIFT
24411-HN1-A40
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-MT3-000
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHIFT DRUM STOPPER
24435-HN1-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT
24610-KCY-671
|
$175.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, GEARSHIFT RESET
24624-MT3-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, GEARSHIFT RETURN
24651-HN1-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SHIFT RETURN SPRING
24652-028-000
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT, REVERSE STOPPER
24860-HN1-A40
|
$59.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, REVERSE STOPPER
24861-HN1-A40
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, REVERSE STOPPER
24865-HN1-A70
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, REVERSE STOPPER
24867-HN1-A40
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIVOT, SHIFT DRUM STOPPER ARM
90022-MG8-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (6MM) (FUSE RASHI)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (12MM)
90452-166-600
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CRANK ARM
90545-044-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (14X28X7) (ARAI)
91202-965-003
|
$8.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL SEAL (14X28X7) (ARAI)
91202-956-003
Superseded by 91202-965-003
|
$8.05 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (14X28X7) (ARAI)
91202-965-004
Superseded by 91202-965-003
|
$8.05 | ||
|
Unavailable |
|||
|
#23
CIRCLIP, OUTER (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP, OUTER (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
ROLLER (3X9.8)
96220-30098
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
