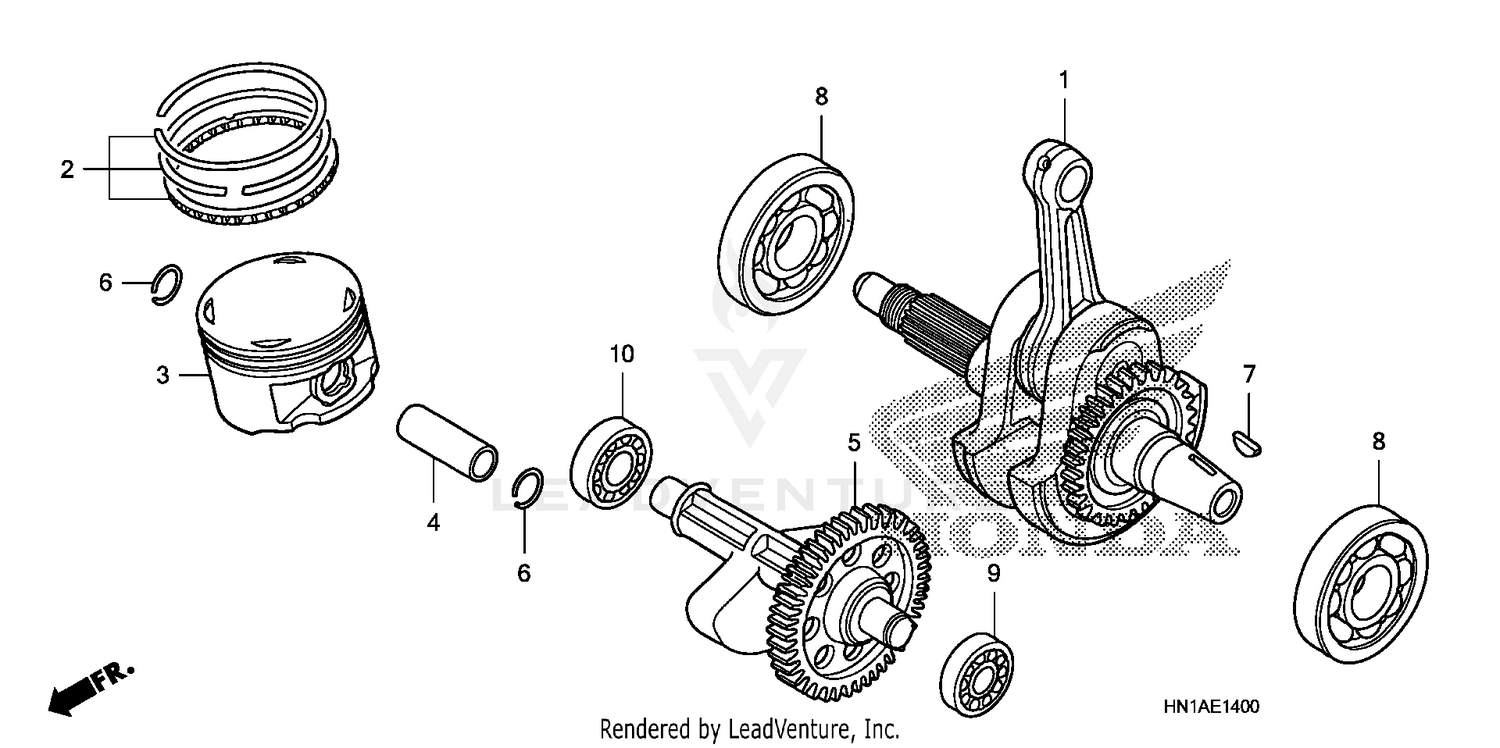

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT (37T)
13000-MBV-730
|
$782.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (STD)
13011-KCY-670
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.25)
13021-KCY-670
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.50)
13031-KCY-670
|
$73.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (STD)
13101-KCY-670
|
$123.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.25)
13102-KCY-670
|
$188.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.50)
13103-KCY-670
|
$188.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-KCY-670
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, BALANCER (37T)
13420-HN1-000
|
$243.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, PISTON PIN (1.2X20)
90601-KA5-000
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY, SPECIAL WOODRUFF (25X18)
90701-KAS-900
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT
91001-KF0-018
|
$101.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (63/13) (NTN)
91006-KK0-771
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (6302)
91007-KF0-018
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
