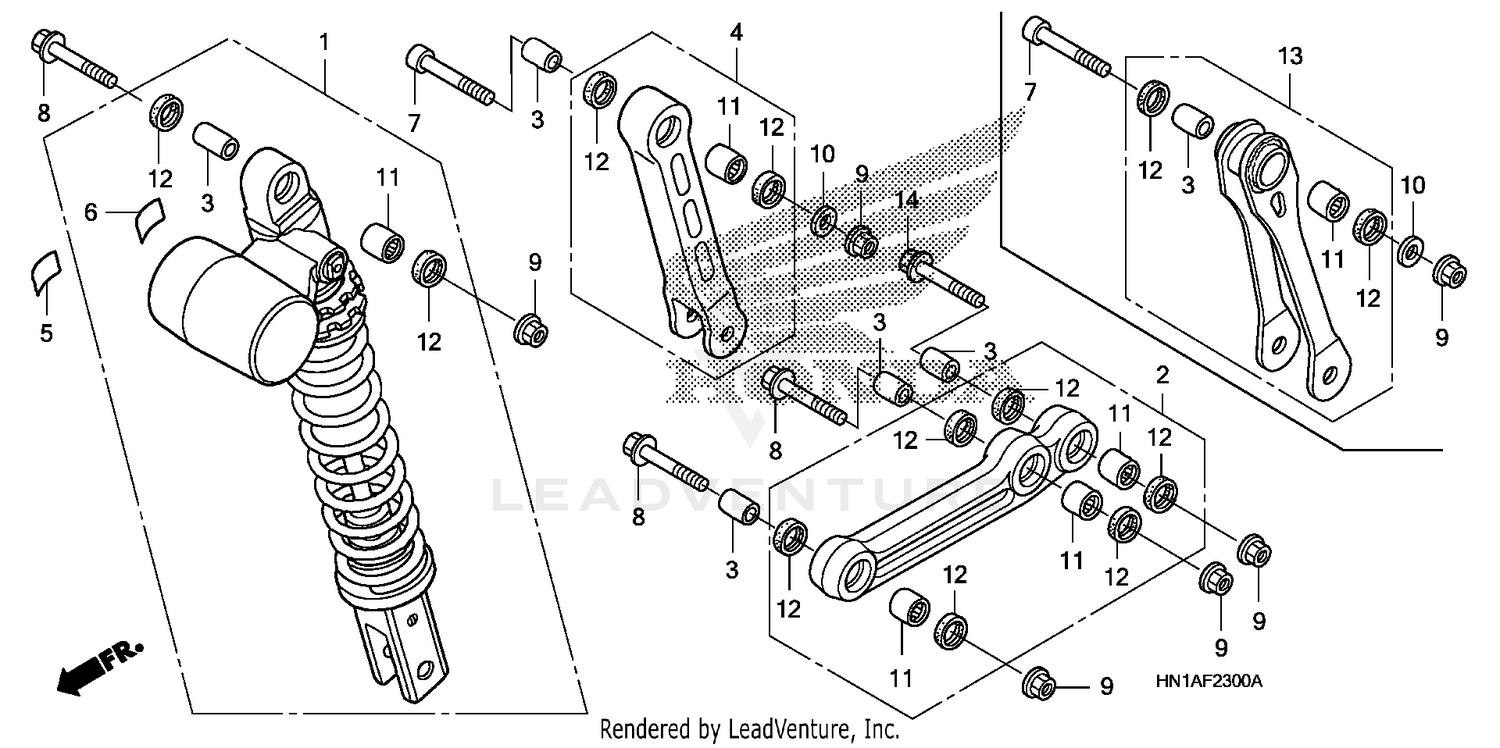

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-HN1-A71
|
$1,170.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM SUB-ASSY., CUSHION
52465-HN1-A40
|
$127.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR C, CUSHION ARM
52465-MY1-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, RR. DAMPER
87516-MBL-610
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, RR. CUSHION
90105-KW6-840
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SPECIAL FLANGE (10X58)
90153-965-000
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SPECIAL FLANGE (10X58)
90153-965-010
Superseded by 90153-965-000
|
$8.64 | ||
|
Unavailable |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN (10MM)
90501-HN1-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, NEEDLE (17X24X17) (KOYO)
91071-MY1-005
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD ASSY., CUSHION CONNECTING
52470-HN1-A70
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X50)
90153-HN1-A70
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
