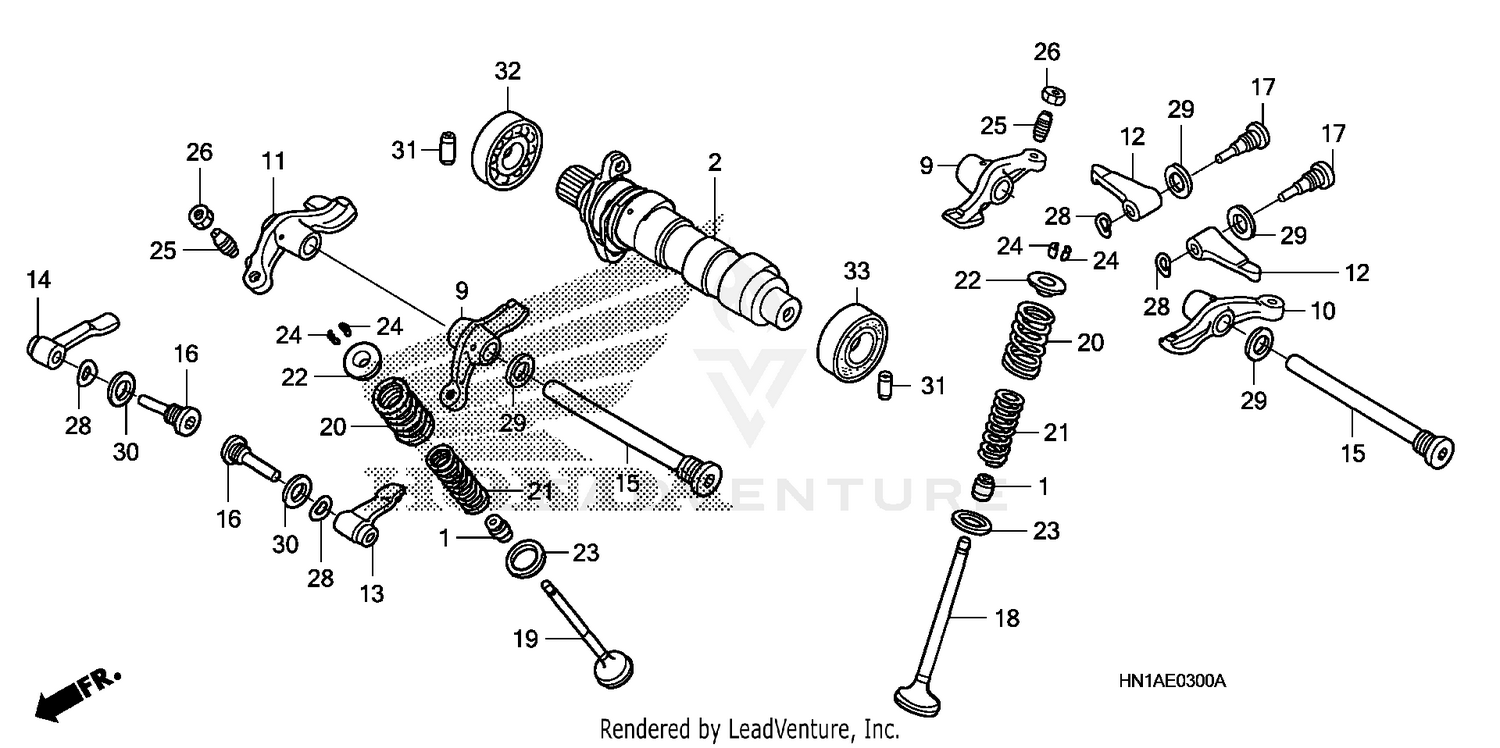

Camshaft + Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (NOK)
12209-KL4-005
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY.
14000-HN1-A70
|
$282.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM A, ROCKER
14411-KCY-670
|
$63.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM B, ROCKER
14421-KCY-670
|
$63.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM C, ROCKER
14431-KCY-670
|
$63.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, IN. VALVE SUB-ROCKER
14445-KF0-000
|
$38.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, L. EX. VALVE SUB-ROCKER
14446-KF0-000
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, R. EX. VALVE SUB-ROCKER
14447-KF0-000
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ROCKER ARM SHAFT
14451-MBV-000
|
$36.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT A, SUB-ROCKER ARM
14455-KCY-670
|
$31.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT B, SUB-ROCKER ARM
14456-KCY-670
|
$46.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE, IN.
14711-KCY-670
|
$40.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, EX.
14721-KCY-670
|
$75.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, VALVE (OUTER)
14751-KCY-670
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, VALVE (INNER)
14761-KG0-003
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, VALVE SPRING
14771-107-020
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, VALVE SPRING (OUTER)
14775-KCY-670
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
COTTER, VALVE
14781-HA0-770
|
$4.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, TAPPET ADJUSTING
90012-MG3-000
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, TAPPET ADJUSTING
90206-590-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, WAVE
90406-KF0-003
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SEALING (14MM)
90544-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (12MM)
90545-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL (10X18)
90701-KF0-000
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (18X37X9) (NTN)
91002-MN1-671
|
$48.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6904)
91003-KF0-008
|
$17.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
