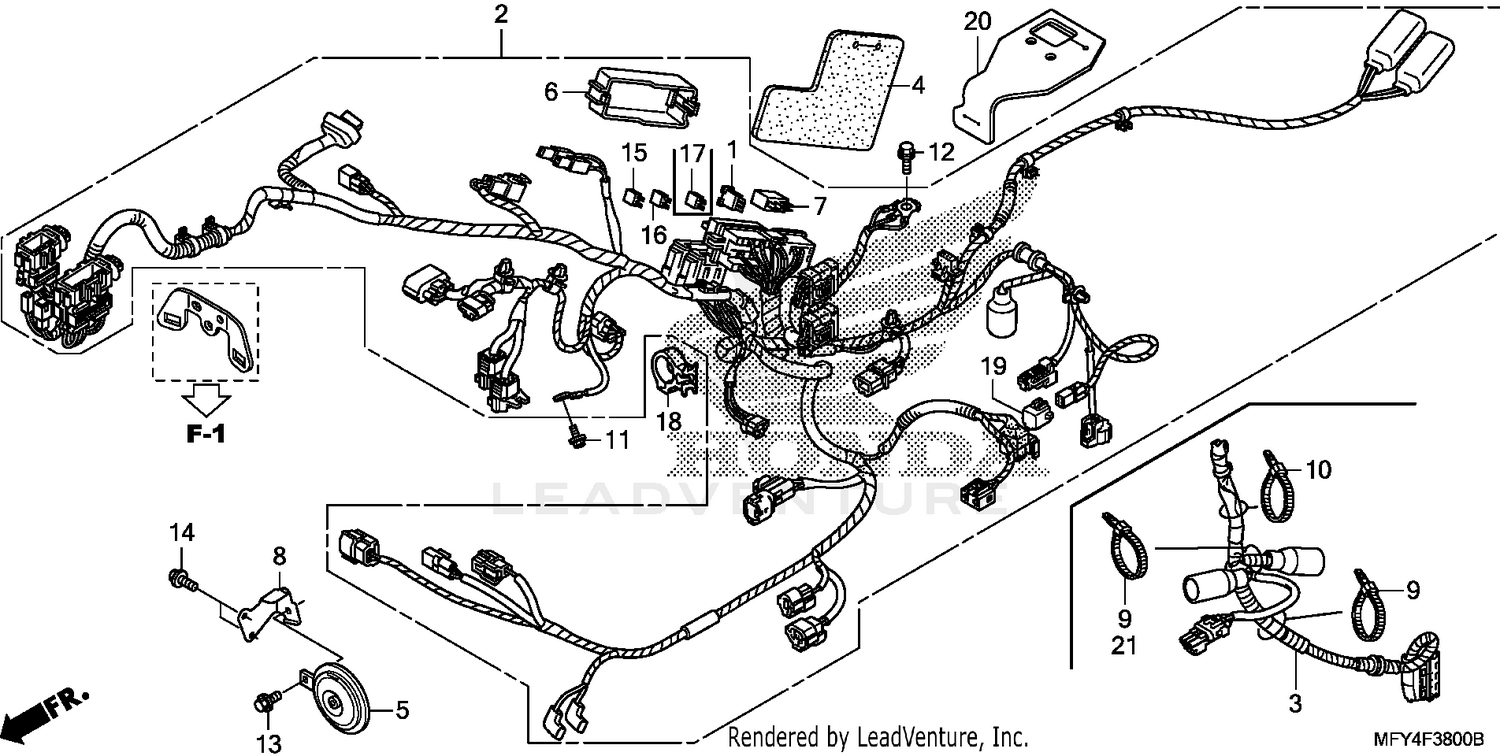

Wire Harness@horn Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE HARNESS
32100-MFY-A00
|
$1,214.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, HARNESS
32150-MFY-A00
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN (HIGH)
38110-MFY-003
|
$74.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER (UPPER)
38252-MFJ-D01
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#8
STAY, HORN
50177-MFY-A00
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X14)
95701-08014-07
|
$1.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER SHEET, HARNESS GUARD
32160-MFY-000
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
