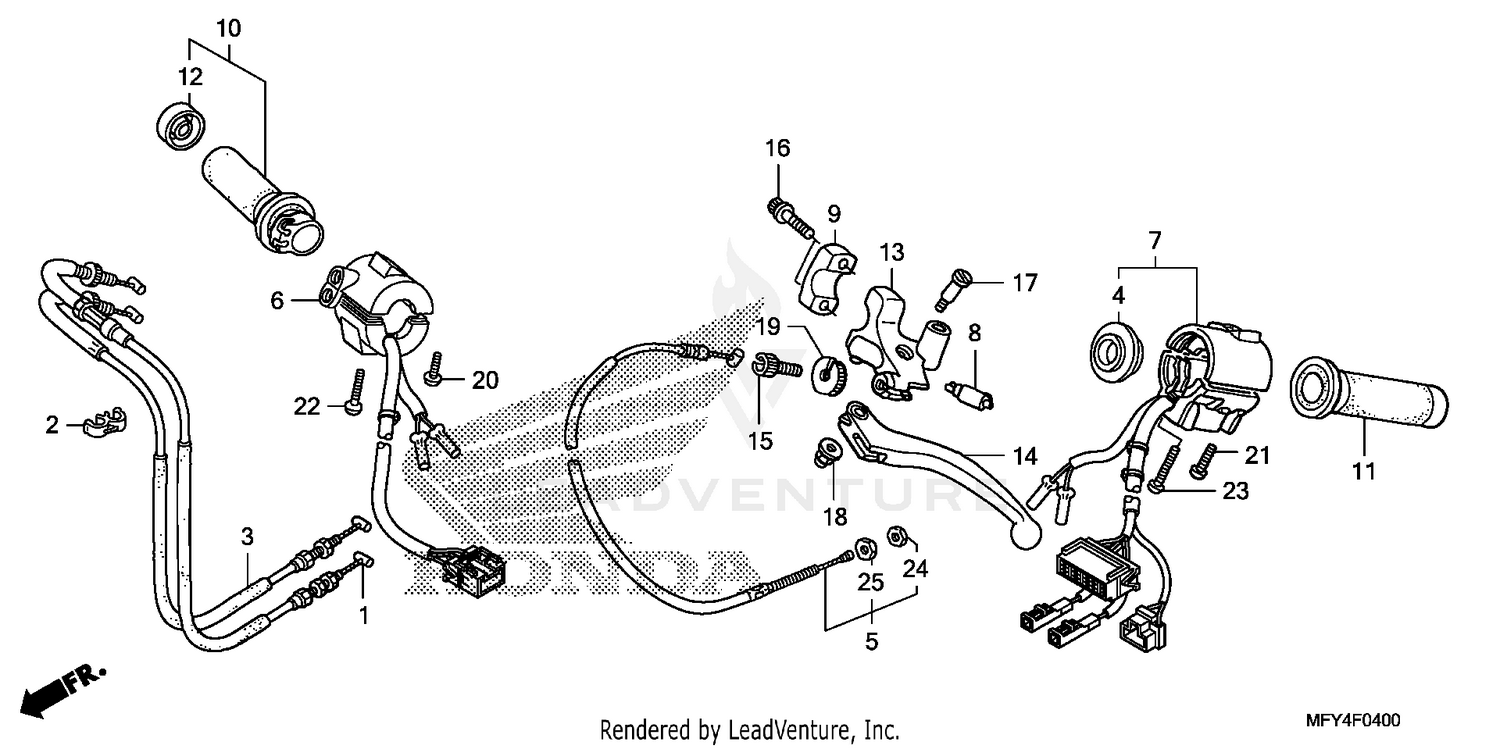

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#23
SCREW, PAN (5X32)
93500-05032-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (8MM) NUT, FLANGE (10MM)
94031-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#1
CABLE A, THROTTLE
17910-MFY-A00
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, THROTTLE WIRE
17915-SA7-981
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE B, THROTTLE
17920-MFY-A00
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADAPTER
17962-MR1-000
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, CLUTCH
22870-MFY-A00
|
$37.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER & STOP
35130-MFY-A01
|
$154.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., TURN SIGNAL
35200-MFY-A01
|
$172.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH, FR. LEVER (TOYO DENSO)
35330-413-003
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER (NISSIN)
45517-MR1-671
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRIP, R.
53145-MFR-305
Superseded by 53145-MM8-000
|
$53.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GRIP ASSY., R.
53145-MM8-000
|
$53.13 | ||
|
Unavailable |
|||
|
#11
GRIP, L. HANDLE
53166-KCR-000
|
$44.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, L. HANDLE
53166-MFR-305
Superseded by 53166-KCR-000
|
$44.75 | ||
|
Unavailable |
|||
|
#12
CAP, GRIP END
53167-MM8-000
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, HANDLE LEVER
53172-MR1-000
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, L. HANDLE
53178-MFR-305
Superseded by 53178-MAH-000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, L. HANDLE
53178-MAH-000
|
$23.64 | ||
|
Unavailable |
|||
|
#15
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FIXING
90321-MA6-750
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN (5X22)
93500-05022-0A
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X25) SCREW, PAN (5X32)
93500-05025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
