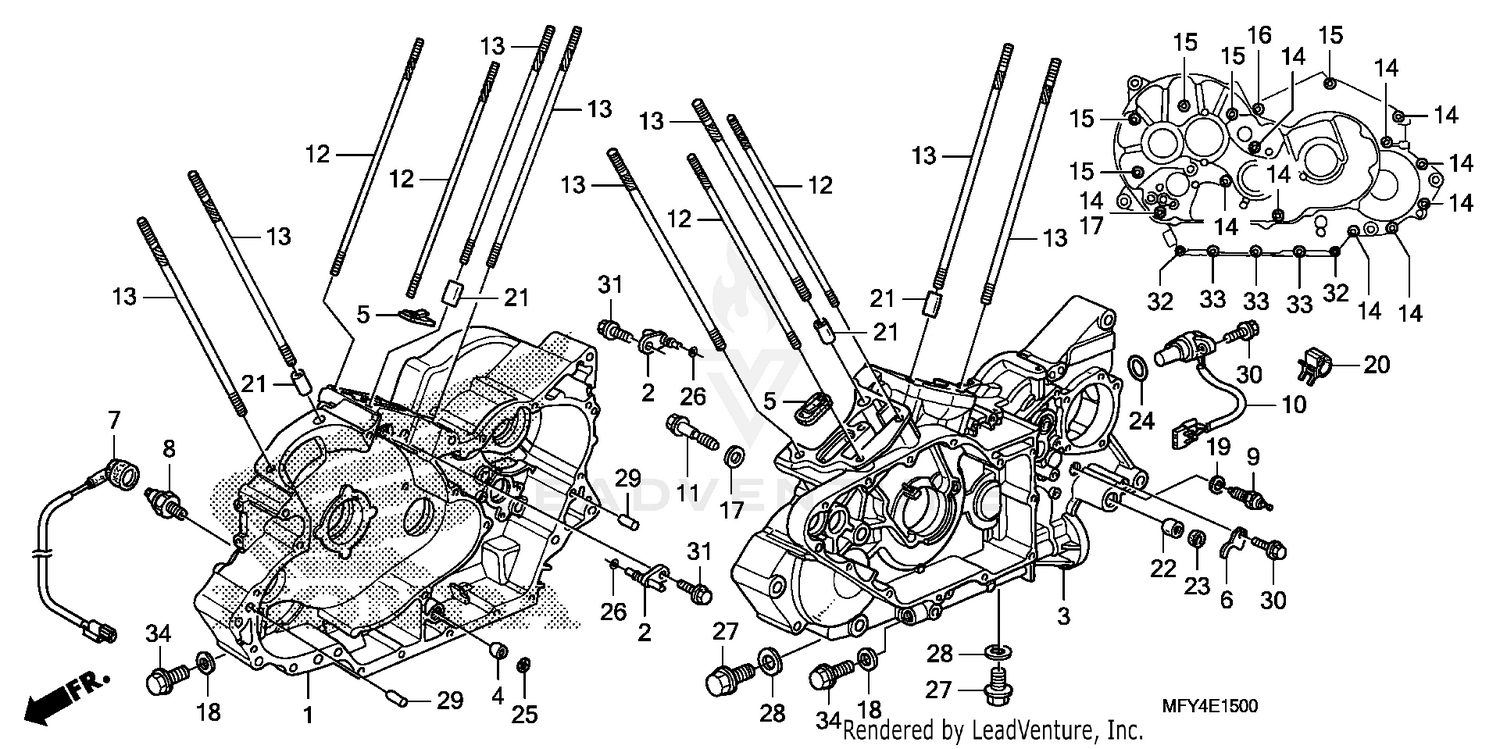

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MFY-A00
|
$930.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
JET, OIL
11140-MEA-670
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-MFY-A00
|
$919.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, O-RING
15155-300-000
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
VALVE, REED
18601-MN4-851
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SPINDLE
24612-MAL-600
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, ENGINE
32101-MFR-670
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY., NEUTRAL (TOYO)
35600-KE8-003
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., SPEED
37700-MFR-671
Superseded by 37700-MFR-672
|
$170.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., SPEED
37700-MFR-672
|
$170.84 | ||
|
Unavailable |
|||
|
#11
BOLT, ORIFICE (1.6MM)
90003-MCH-000
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD (8X259)
90011-MAH-000
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (10X269)
90012-MBC-003
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X95)
90016-MEA-670
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X105)
90017-MEA-670
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X115)
90018-MEA-670
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (8MM)
90441-MG8-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CABLE (8MM)
90690-GHB-631
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL (14X28)
90701-KAE-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (14X22X16)
91106-KM1-013
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (18.1X3.6)
91302-MAL-601
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN B, DOWEL (10X16)
94302-10160
|
$2.02 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (10X16)
95701-10016-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
