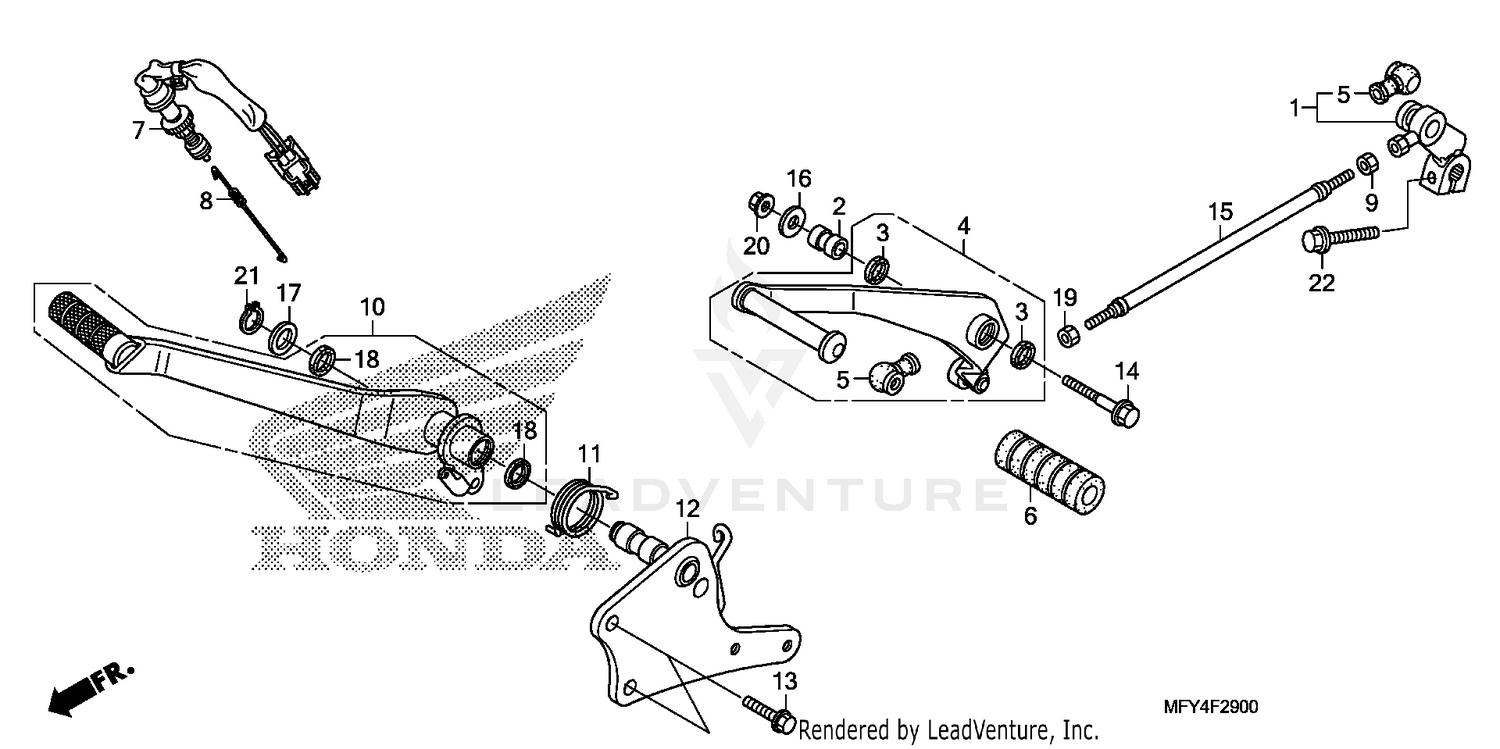

Pedal (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT
24702-MFR-670
|
$56.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MB0-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, DUST SEAL
24706-MK3-770
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL, GEARSHIFT
24710-MFY-305
Superseded by 24710-MFY-A00
|
$109.49 | ||
|
Unavailable |
|||
|
#5
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, GEARSHIFT PEDAL
24781-MCH-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MFR-671
Superseded by 35350-MFR-672
|
$40.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MFR-672
|
$40.55 | ||
|
Unavailable |
|||
|
#8
SPRING, STOP SWITCH
35357-MFR-670
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEX. (6MM) (LEFT HAND THREAD)
45423-KA4-700
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
PEDAL ASSY., RR. BRAKE (COO)
46500-MFY-A00
Superseded by 46500-MFY-305
|
$161.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE PEDAL
46514-MFR-670
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, RR. BRAKE
50618-MFY-A00
|
$62.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X19)
90102-MW4-000
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL FLANGE (8X40)
90122-MM2-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, TIE ROD
90165-MFY-A00
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (8MM) (Honda Code 0285189)
90514-921-000
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
