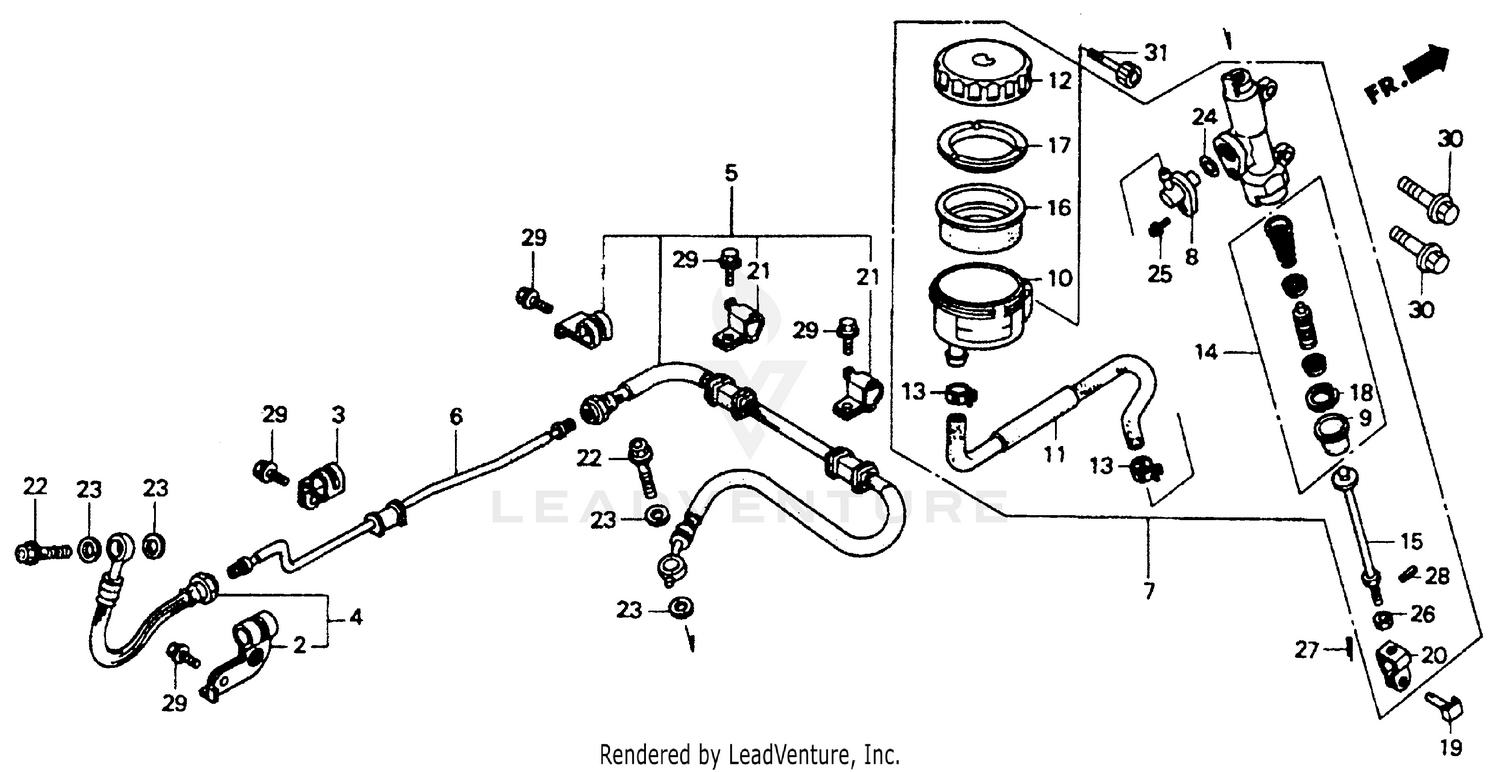

Rear Brake Master Cylinder 1100 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, RR. BRAKE HOSE (A)
43156-MN5-000
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, RR. BRAKE HOSE
43157-MT3-000
|
$10.24 | ||
|
Unavailable |
|||
|
#3
CLAMP, RR. BRAKE PIPE
43158-MT3-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RR. BRAKE (A)
43310-MT3-003
|
$46.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, RR. BRAKE (B)
43313-MT3-003
|
$67.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, RR. BRAKE
43314-MT3-000
|
$18.10 | ||
|
Unavailable |
|||
|
#7
MASTER CYLINDER ASSY., RR. (NISSIN)
43500-MT3-006
|
$370.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUP, MASTER CYLINDER OIL
43511-MT3-006
|
$40.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, MASTER CYLINDER
43512-MT3-006
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, OIL CUP
43513-MB4-672
|
$26.61 | ||
|
Unavailable |
|||
|
#13
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, PUSH
43530-MT3-016
Superseded by 43530-MT3-036
|
$27.51 | ||
|
Unavailable |
|||
|
#15
ROD, PUSH
43530-MT3-036
|
$27.51 | ||
|
Unavailable |
|||
|
#16
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
Unavailable |
|||
|
#20
JOINT, BRAKE ROD
46504-MT8-006
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, BRAKE HOSE
52115-ML8-670
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#23
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.40 | ||
|
Unavailable |
|||
|
#26
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, SPRING (2X10)
94305-20102
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
