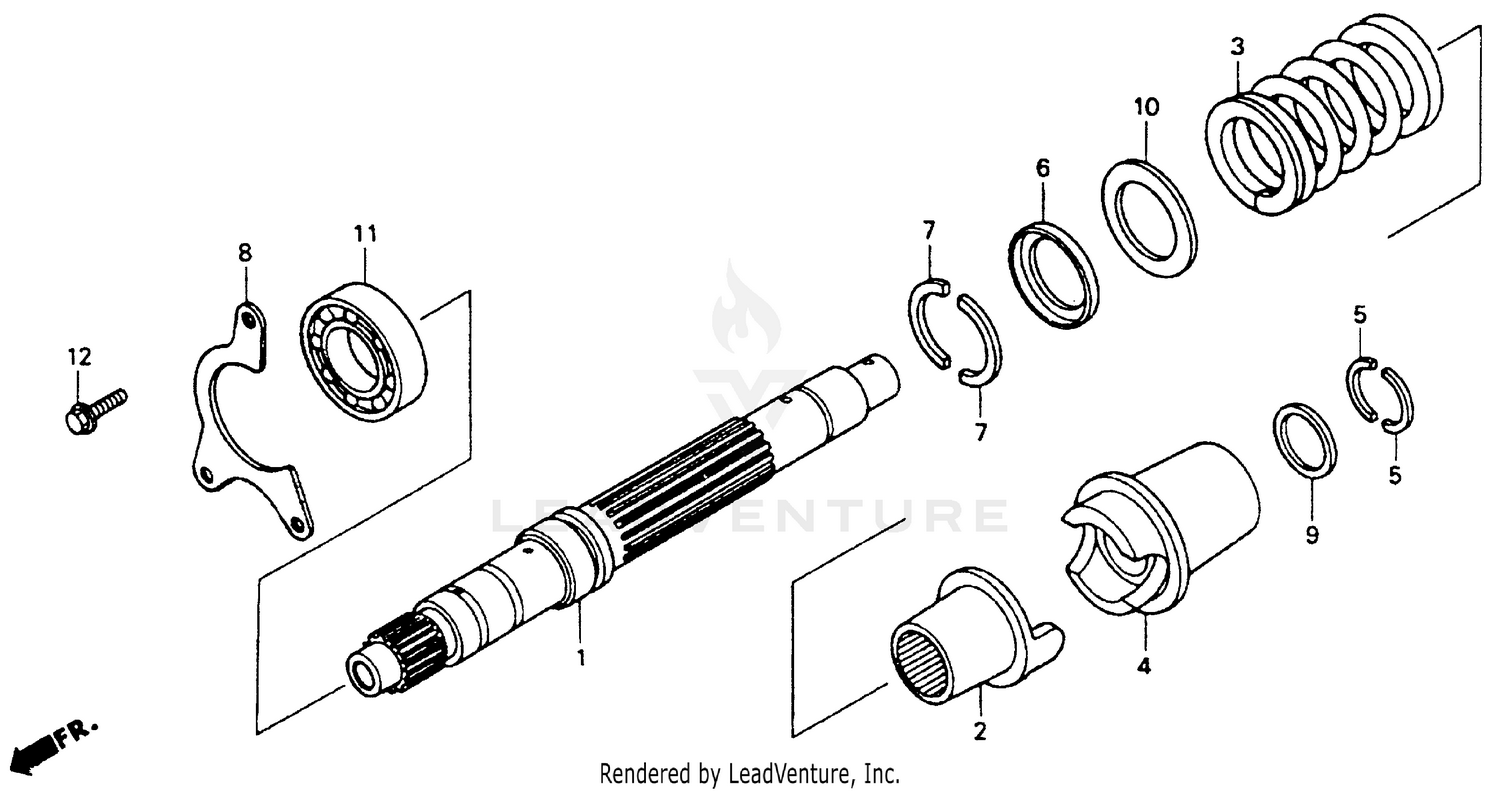

Primary Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, PRIMARY
23111-MT3-000
|
$277.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
LIFTER, PRIMARY DAMPER
23112-MT3-000
|
$53.73 | ||
|
Unavailable |
|||
|
#3
SPRING, PRIMARY DAMPER
23113-MT3-000
|
$55.02 | ||
|
Unavailable |
|||
|
#4
CAM, PRIMARY DAMPER
23114-MT3-000
|
$82.55 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING STOPPER
23117-MT3-000
|
$10.81 | ||
|
Unavailable |
|||
|
#6
RETAINER, PRIMARY SPRING
23118-MT3-000
|
$6.00 | ||
|
Unavailable |
|||
|
#7
COTTER, PRIMARY SPRING
23119-MT3-000
|
$12.30 | ||
|
Unavailable |
|||
|
#8
PLATE, PRIMARY BEARING SETTING
23215-MT3-000
|
$12.77 | ||
|
Unavailable |
|||
|
#9
WASHER (24X28X1)
90403-MT3-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (35X54X3.2)
90407-MT3-000
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (62/28)
91008-MT3-004
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
