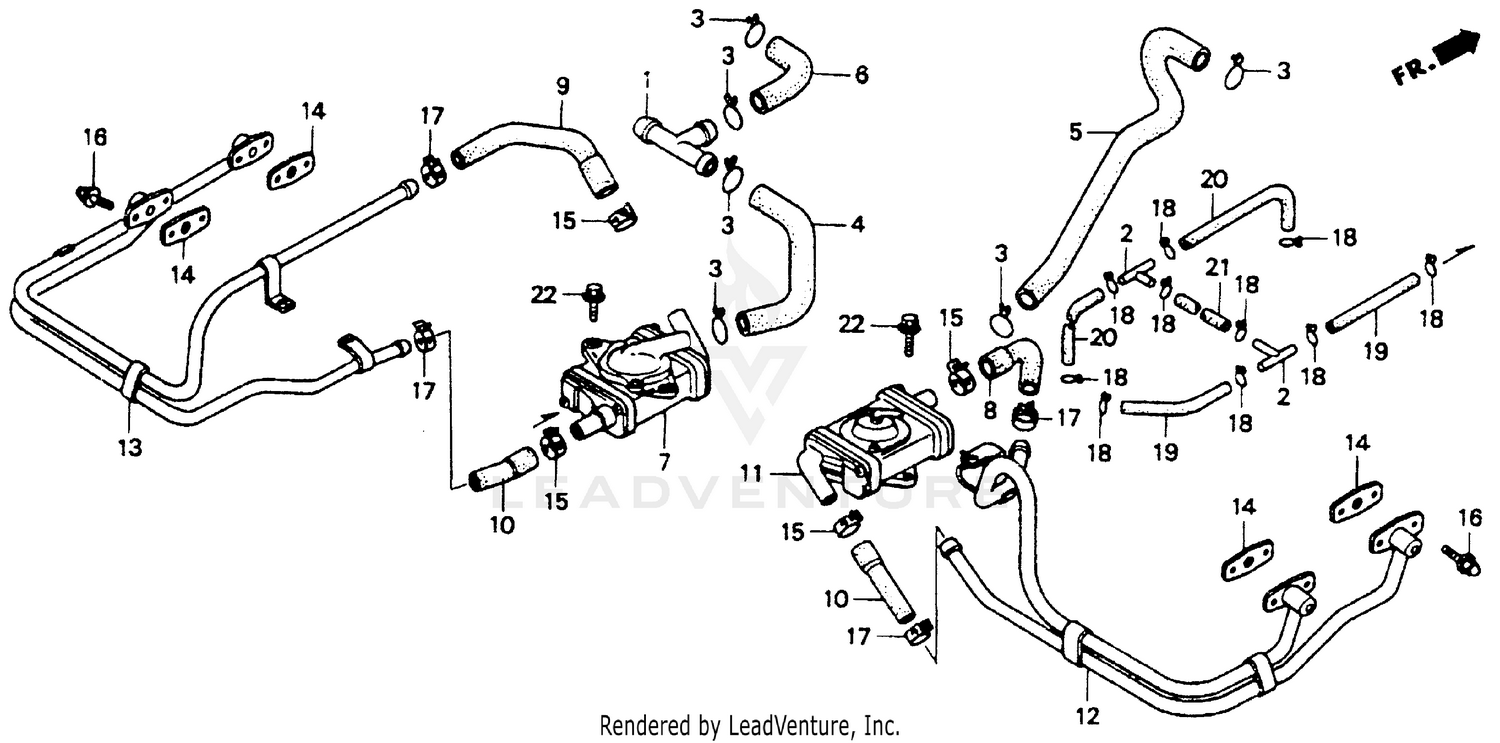

Air Suction Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, BREATHER (THREE-WAY)
15772-KK0-000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, VACUUM TUBE (A)
17201-MG9-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, BREATHER TUBE
17369-KB4-670
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, AIR SUCTION VALVE (B)
18602-MT3-730
|
$21.01 | ||
|
Unavailable |
|||
|
#5
TUBE, AIR SUCTION VALVE (A)
18603-MT3-730
|
$37.82 | ||
|
Unavailable |
|||
|
#6
TUBE, AIR SUCTION VALVE (C)
18604-MT3-730
|
$13.69 | ||
|
Unavailable |
|||
|
#7
VALVE ASSY., AIR SUCTION (FR)
18610-MT3-730
|
$233.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE A, AIR SUCTION VALVE
18613-MT3-730
|
$21.90 | ||
|
Unavailable |
|||
|
#9
HOSE, AIR SUCTION VALVE (B)
18614-MT3-730
|
$27.05 | ||
|
Unavailable |
|||
|
#10
HOSE, AIR SUCTION VALVE (C)
18616-MT3-730
|
$18.06 | ||
|
Unavailable |
|||
|
#11
VALVE ASSY., AIR SUCTION (RR)
18620-MT3-730
|
$233.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, R.
18640-MT3-730
|
$159.49 | ||
|
Unavailable |
|||
|
#13
PIPE, L.
18645-MT3-730
|
$190.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, AIR FEED PIPE
18645-MT4-730
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, TUBE (D19)
19509-GE2-003
|
$3.96 | ||
|
Unavailable |
|||
|
#16
BOLT, CAP (6X16) (CHROME PLATED)
90214-PH3-000
|
$5.57 | ||
|
Unavailable |
|||
|
#17
CLAMP, TUBE (D17)
91405-MF5-860
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BULK HOSE, VACUUM (3.5X8000) (3.5X65)
95005-35008-10M
|
$128.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULK HOSE, VACUUM (3.5X8000) (3.5X100)
95005-35008-10M
|
$128.23 | ||
|
Unavailable |
|||
|
#21
BULK HOSE, VACUUM (3.5X8000) (3.5X250)
95005-35008-10M
|
$128.23 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
