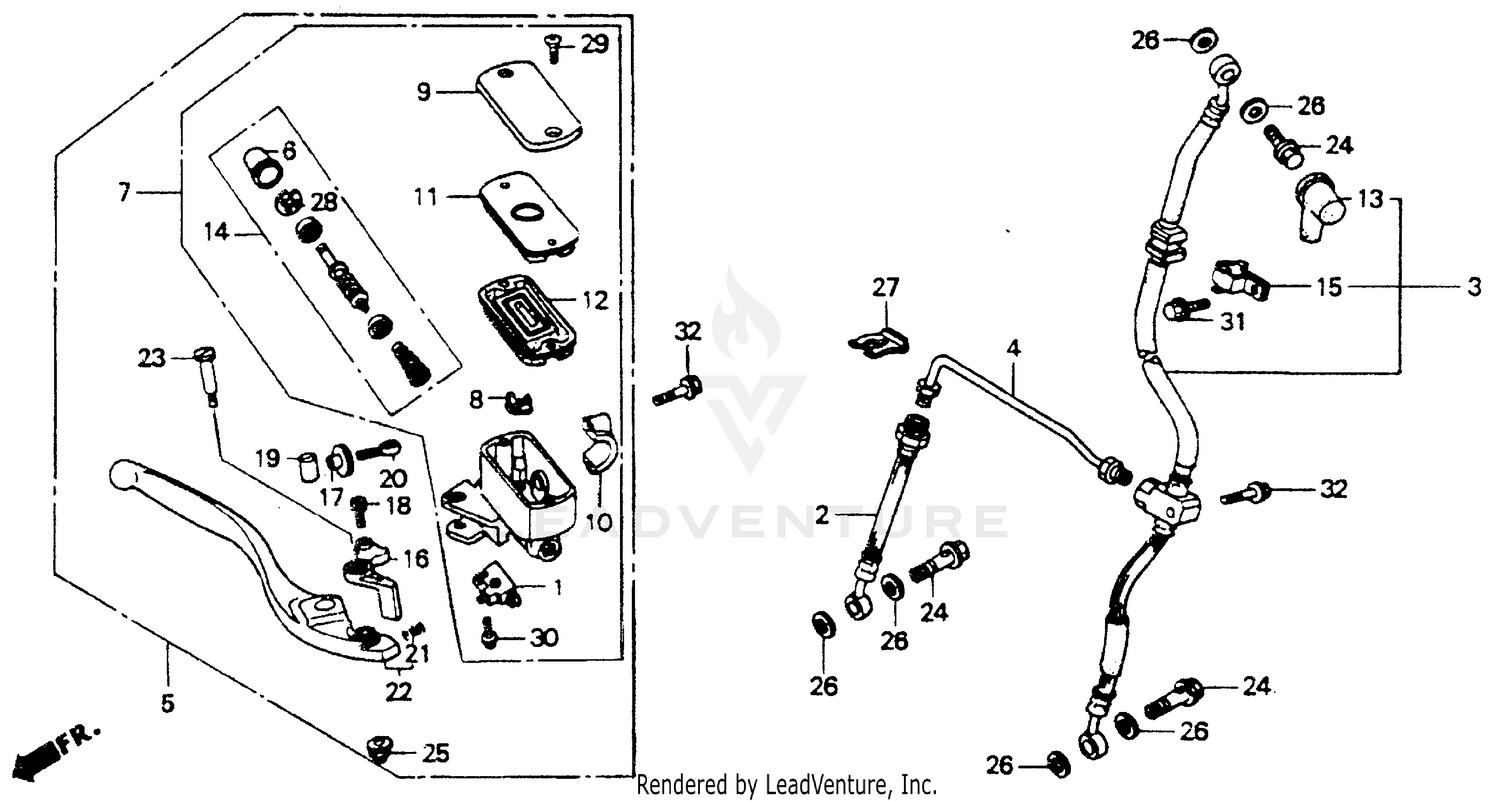

Front Brake Master Cylinder 1100 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
HOSE, R. FR. BRAKE
45124-MT3-611
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, L. FR. BRAKE
45125-MT3-611
|
$53.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. BRAKE
45127-MT3-000
|
$13.45 | ||
|
Unavailable |
|||
|
#6
BOOT
45504-410-003
|
$14.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MT3-305
|
$383.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-006
Superseded by 45513-MM5-016
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$27.15 | ||
|
Unavailable |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOOT, MASTER CYLINDER
45522-422-000
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SET
45530-MA4-671
|
$57.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP, BRAKE HOSE
52115-ML8-670
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNOCKER, MASTER CYLINDER
53171-MJ4-006
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER, R. HANDLEBAR
53172-KV0-006
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, LEVER SOCKET (5X5)
53177-KV0-006
|
$3.78 | ||
|
Unavailable |
|||
|
#19
JOINT, LEVER
53179-KV0-006
|
$3.92 | ||
|
Unavailable |
|||
|
#20
BOLT, ADJUSTING
53180-KV0-006
|
$6.89 | ||
|
Unavailable |
|||
|
#21
SPRING, HANDLEBAR
53181-KV0-006
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER SET, R. HANDLE
53185-MT3-305
|
$16.76 | ||
|
Unavailable |
|||
|
#23
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#25
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLIP, BRAKE HOSE
90651-KV3-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#30
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
