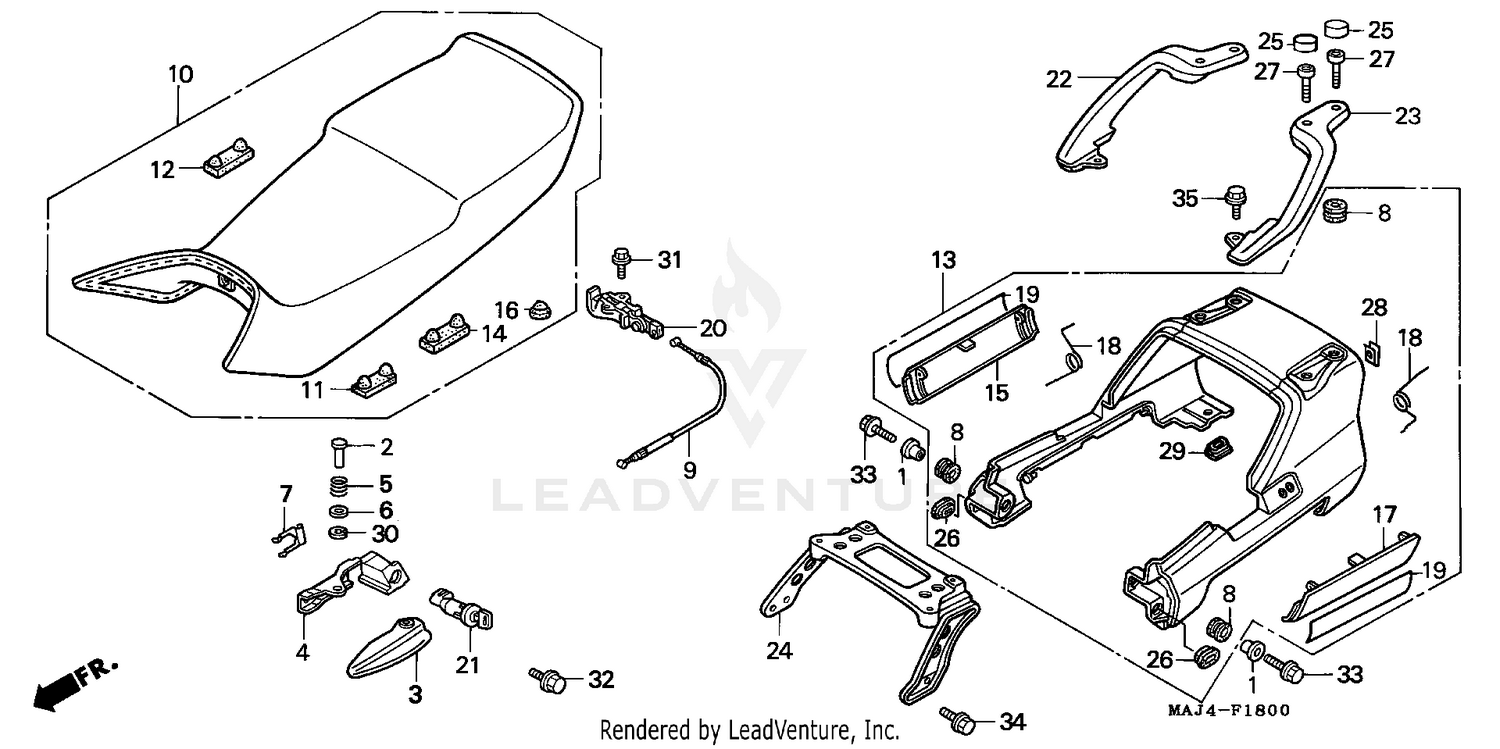

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, MUFFLER
18357-KA4-710
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, KICK STARTER
28321-427-770
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP, MAIN STAND *NH285* (GUSTO GRAY)
50400-MT3-000ZA
|
$85.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MAIN STAND GRIP
50411-MT3-000
|
$52.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, R. STEP RETURN
50617-MM5-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, HANDLE SETTING
53103-GN5-900
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, LOCK KEY SETTING
75581-673-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, CUSHION
77150-MT3-000
|
$3.05 | ||
|
Unavailable |
|||
|
#9
CABLE, SEAT LOCK
77156-MT3-000
|
$7.59 | ||
|
Unavailable |
|||
|
#10
SEAT ASSY., DOUBLE *NH1L* (BLACK)
77200-MAJ-G00ZA
|
$584.52 | ||
|
Unavailable |
|||
|
#11
RUBBER, SEAT SIDE
77204-MT3-000
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, SEAT SETTING
77204-312-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
COWL SET, RR. (TYPE16) (WL) (NOT AVAILABLE)
77211-MAJ-A00ZA
|
$265.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, SEAT SIDE (RIGHT SIDE)
77212-965-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
LID, R. RR. COWL *R158P* (PURE RED) (NOT AVAILABLE)
77214-MT3-611ZV
|
$23.04 | ||
|
Unavailable |
|||
|
#16
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
LID, L. RR. COWL *R158P* (PURE RED) (NOT AVAILABLE)
77215-MT3-611ZV
|
$23.58 | ||
|
Unavailable |
|||
|
#18
SPRING, RR. COWL LID
77216-MT3-010
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL
77217-MT3-300
|
$12.22 | ||
|
Unavailable |
|||
|
#20
HOOK, SEAT CATCH
77220-KY6-000
Superseded by 77220-KY6-010
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOOK, SEAT CATCH
77220-KY6-010
|
$35.35 | ||
|
Unavailable |
|||
|
#21
KEY, SEAT LOCK
77239-MT3-000
|
$34.08 | ||
|
Unavailable |
|||
|
#22
GRAB RAIL, R. RR. *NH285* (GUSTO GRAY)
77311-MT3-000ZA
|
$185.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRAB RAIL, L. RR. *NH285* (GUSTO GRAY)
77312-MT3-010ZA
|
$214.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, CENTER GRAB RAIL
77313-MT3-000
|
$125.52 | ||
|
Unavailable |
|||
|
#25
CAP, GRAB RAIL *NH285* (GUSTO GRAY)
77316-MT3-000ZA
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET, SIDE COVER
83551-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (8MM)
90160-MT3-000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SPRING (5MM)
90322-MM5-000
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR (5X3.5)
90513-HA5-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
E-RING (6MM)
94540-06018
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (8X16)
95701-08016-08
|
$1.83 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (8X18)
95701-08018-07
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
