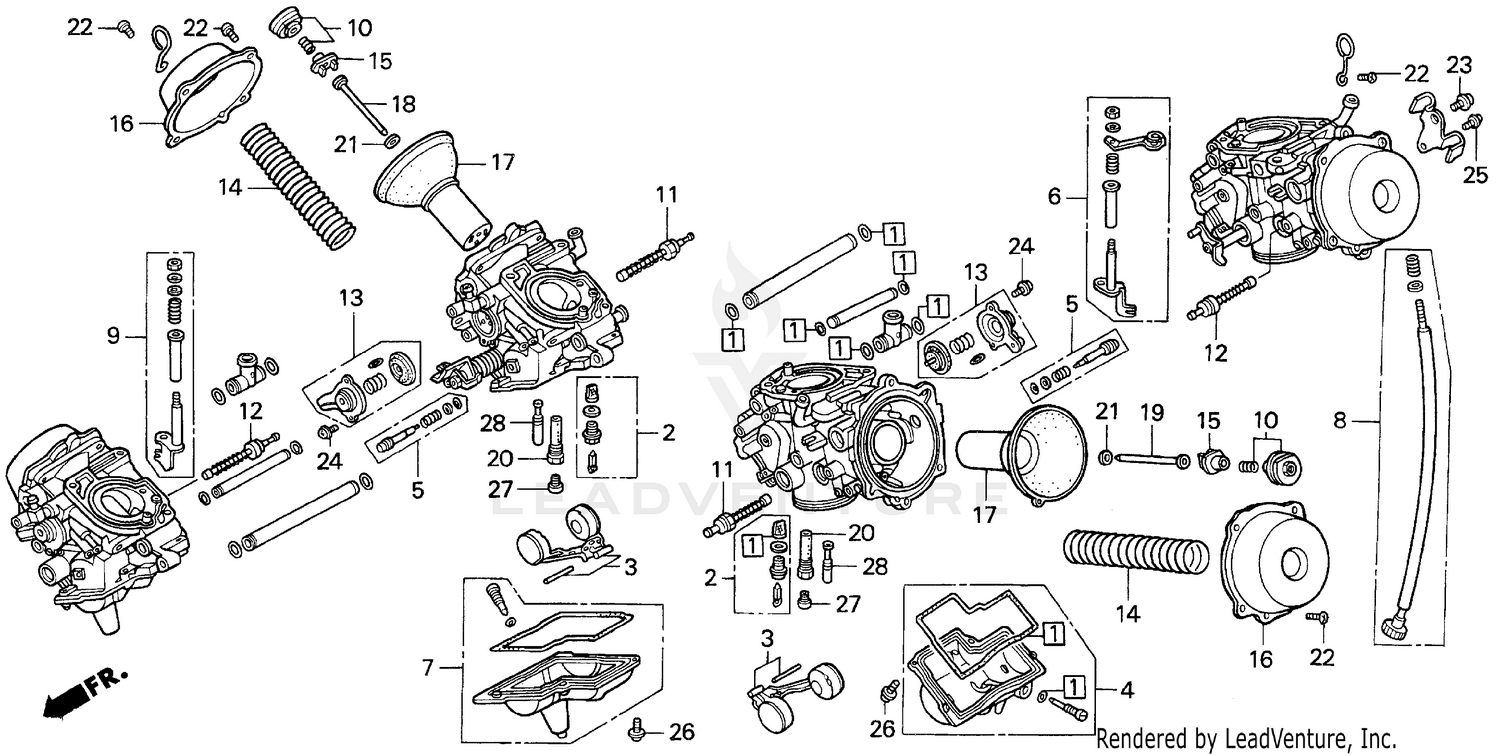

Carburetor Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MAJ-D00
|
$52.15 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-MT3-610
Superseded by 16010-MAJ-D00
|
$52.15 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-MAJ-R00
|
$91.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-MR5-672
Superseded by 16011-MAJ-R00
|
$91.55 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-MAH-000
|
$60.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-ML7-004
Superseded by 16013-MAH-000
|
$60.02 | ||
|
Unavailable |
|||
|
#4
CHAMBER SET, FLOAT
16015-MT3-610
Superseded by 16015-MAJ-D00
|
$129.15 | ||
|
Unavailable |
|||
|
#5
SCREW SET
16016-MAJ-D00
|
$22.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW SET
16016-MT3-670
Superseded by 16016-MAJ-D00
|
$22.83 | ||
|
Unavailable |
|||
|
#6
ARM SET, LINK
16018-MAJ-870
Superseded by 16018-MAJ-R00
|
$52.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAMBER SET, FLOAT
16023-MAJ-D00
|
$171.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAMBER SET, FLOAT
16023-MT3-610
Superseded by 16023-MAJ-D00
|
$171.67 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-MT3-610
Superseded by 16028-MAJ-R00
|
$41.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK B SET, STARTER
16031-ML7-921
|
$95.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK B SET, STARTER
16031-MR7-004
Superseded by 16031-ML7-921
|
$95.15 | ||
|
Unavailable |
|||
|
#10
PLATE SET
16037-MT3-610
|
$19.20 | ||
|
Unavailable |
|||
|
#11
VALVE SET A, STARTER
16046-MAJ-870
|
$62.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE SET B, STARTER
16047-MAJ-870
|
$54.63 | ||
|
Unavailable |
|||
|
#13
VALVE SET, AIR CUT (SOURCE: VINTAGE PARTS INC.)
16048-MR7-004
|
$138.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, VACUUM PISTON
16050-KV0-721
Superseded by 16050-KV0-671
|
$14.58 | ||
|
Unavailable |
|||
|
#15
COLLAR SET
16075-KAF-000
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
TOP (NOT AVAILABLE)
16107-MT3-610
|
$41.75 | ||
|
Unavailable |
|||
|
#17
PISTON, VACUUM
16111-MT3-610
|
$200.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, NEEDLE JET
16165-MT3-610
|
$31.63 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN
16178-MT3-610
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (4X10) SCREW, PAN (4X12)
93500-04010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (4X10)
93500-04010-1A
Superseded by 93500-04010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X8)
93892-04008-00
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X8)
93892-04008-10
Superseded by 93892-04008-00
|
$0.53 | ||
|
Unavailable |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-10
Superseded by 93892-04016-00
|
$0.60 | ||
|
Unavailable |
|||
|
#28
JET, SLOW (#38)
99103-MT3-0380
Superseded by 99103-MV9-0380
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, SLOW (#38)
99103-MV9-0380
|
$14.22 | ||
|
Unavailable |
|||
