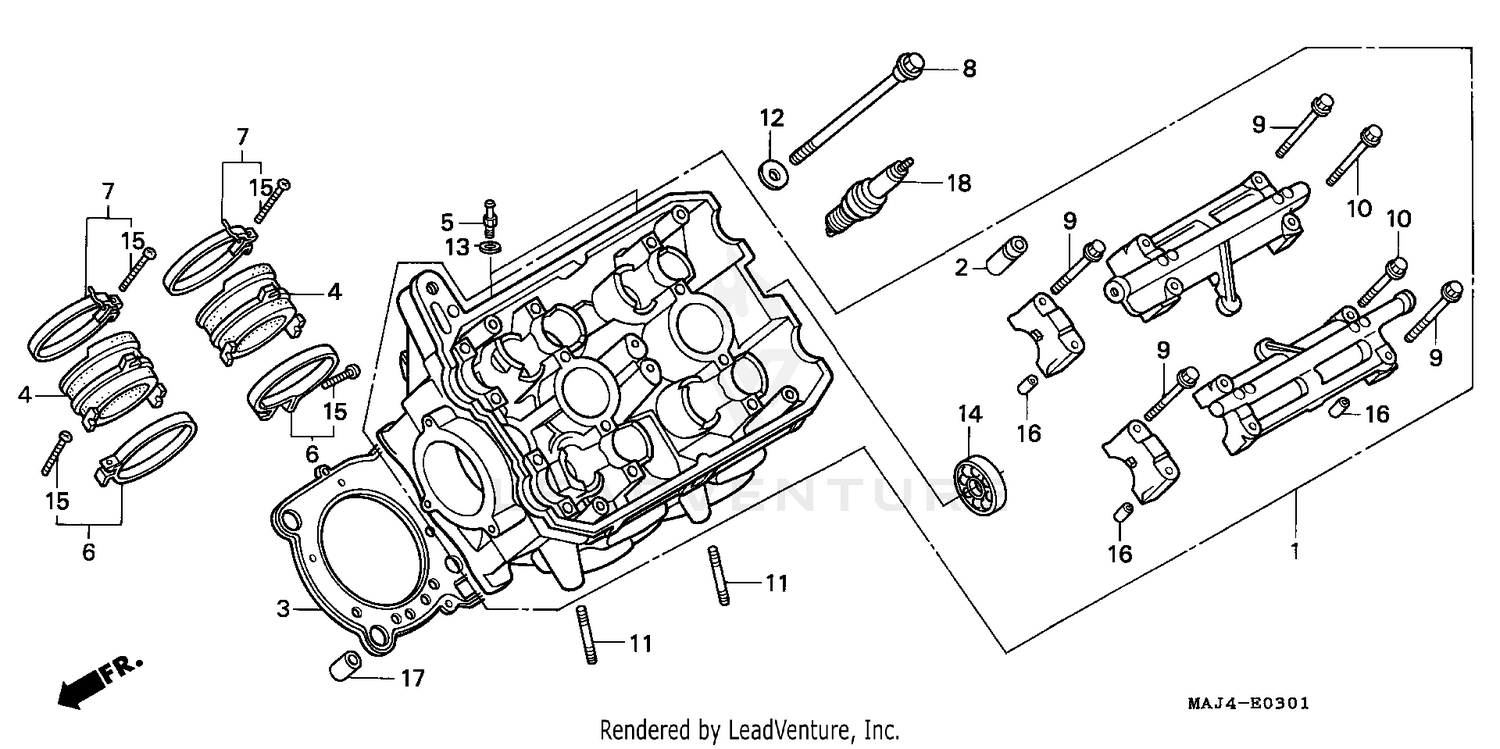

Left Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY., L.
12020-MT3-731
|
$1,234.42 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MT4-305
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MT3-004
|
$60.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
INSULATOR, CARBURETOR
16211-MT3-000
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, BOOSTER
16214-MB0-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, INSULATOR
16219-ML7-690
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16219-MT3-000
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (10X87)
90003-MT3-003
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (8X24)
90035-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10MM)
90441-MT3-000
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (6904)
91007-MT3-000
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (5X18)
93500-05018-0G
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (CR8EH9) (NGK)
98059-58916
|
$9.86 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (CR9EH-9) (NGK)
98059-58926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (CR9EH-9) (NGK)
98059-59910
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (CR9EH-9) (NGK)
98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (CR9EH-9) (NGK)
98059-59926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
