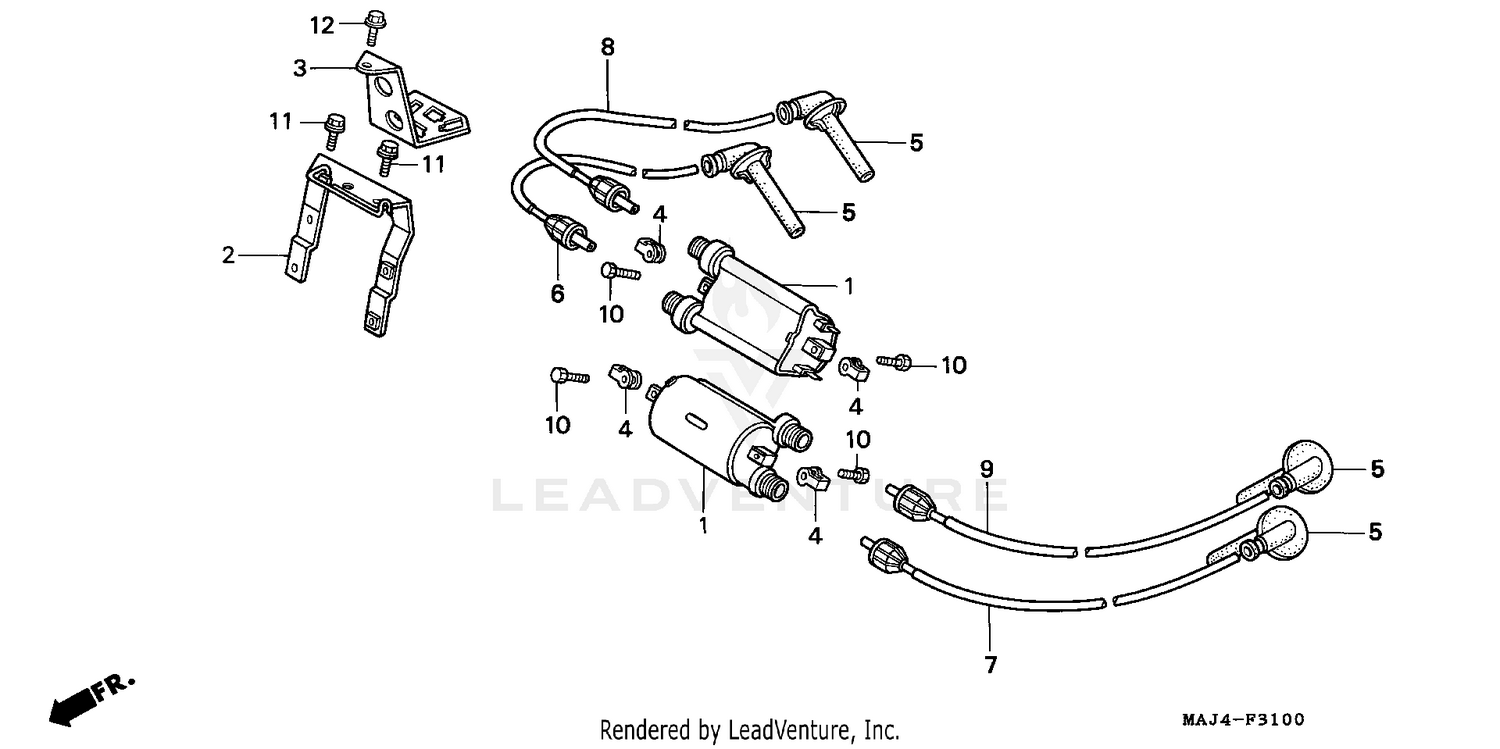

Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-KT7-023
|
$172.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, IGNITION COIL
30515-MT3-000
|
$33.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CONNECTOR
30516-MT3-000
|
$16.12 | ||
|
Unavailable |
|||
|
#4
SPACER, IGNITION COIL
30520-ML7-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY,NOISE SU
30700-KAF-010
Superseded by 30700-KAF-003
|
$45.04 | ||
|
Unavailable |
|||
|
#6
WIRE, IGNITION (1)
30731-MT3-610
Superseded by 30731-MT3-505
|
$22.69 | ||
|
Unavailable |
|||
|
#7
WIRE, IGNITION (1)
30732-MT3-610
Superseded by 30731-MT3-505
|
$22.69 | ||
|
Unavailable |
|||
|
#8
WIRE, IGNITION (1)
30733-MT3-610
Superseded by 30733-MT3-505
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, IGNITION (1)
30734-MT3-610
Superseded by 30733-MT3-505
|
$19.27 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
