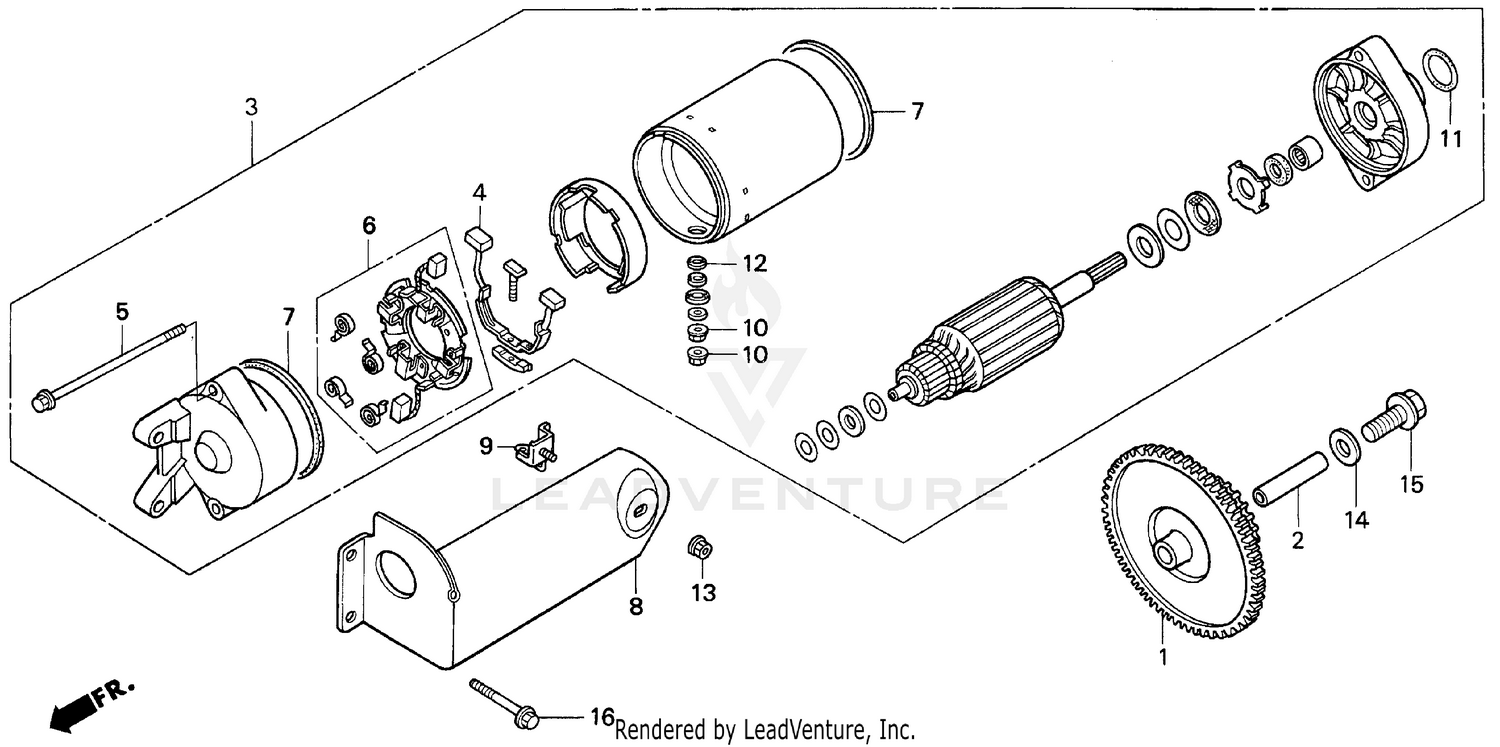

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, STARTER REDUCTION (26T/93T)
28101-MT3-000
|
$110.90 | ||
|
Unavailable |
|||
|
#2
PIN (10X75)
28105-MT3-000
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOTOR ASSY., STARTER (MITSUBA)
31200-MT3-003
|
$660.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
TERMINAL SET, BRUSH
31201-MR6-008
|
$28.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-MR1-008
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER SET, BRUSH
31206-MR6-008
|
$29.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING (Honda Code 2541985)
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, STARTER MOTOR
31207-MAJ-G20
|
$25.66 | ||
|
Unavailable |
|||
|
#9
STAY, HEAT GUARD
31209-MT3-000
|
$16.12 | ||
|
Unavailable |
|||
|
#10
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (24.4X3.1) (Honda Code 2618221)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#12
O-RING (Honda Code 1292184)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (12X30)
95701-12030-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
