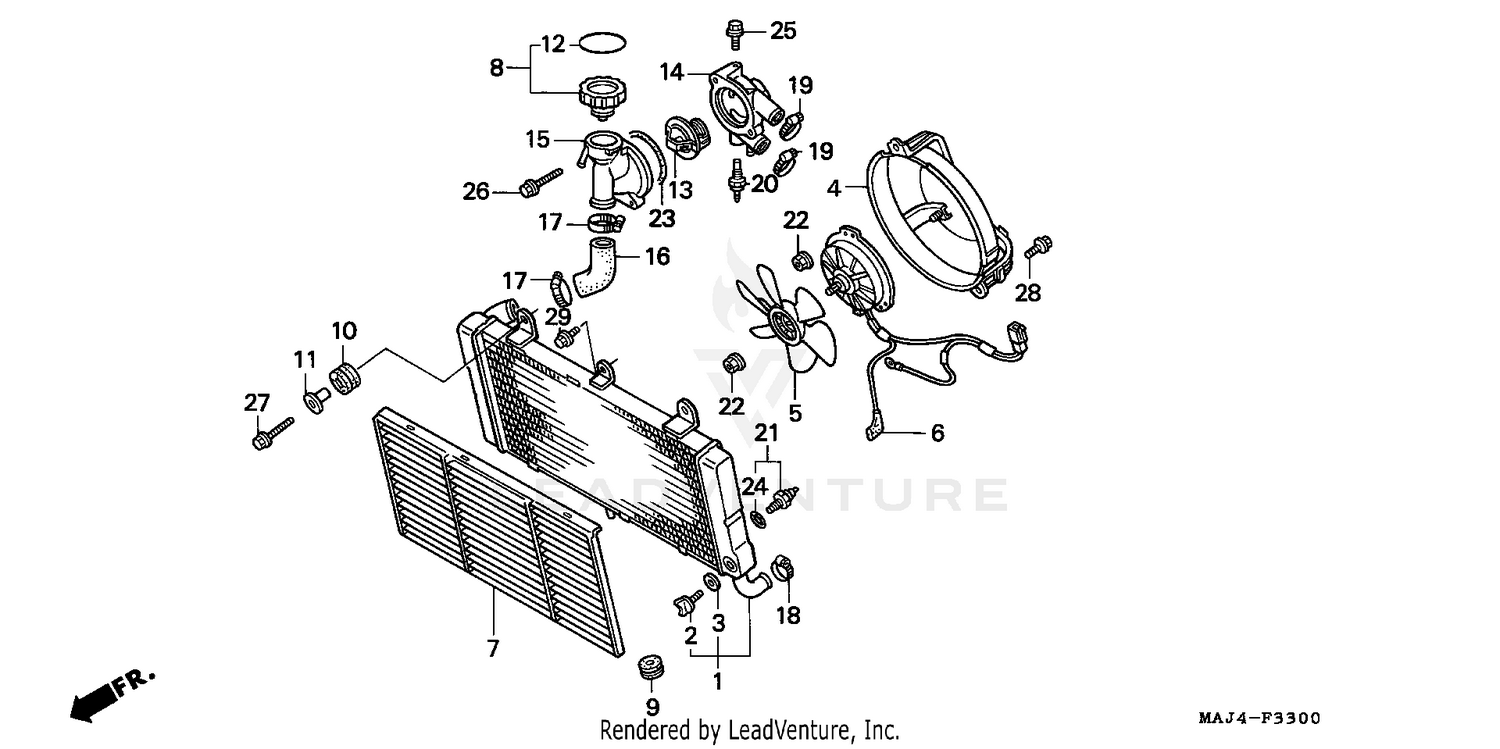

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-MAJ-G20
Superseded by 19010-MAJ-G21
|
$722.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, DRAIN (TOYO)
19011-PH9-004
Superseded by 19011-PH9-014
|
$6.81 | ||
|
Unavailable |
|||
|
#3
GASKET, DRAIN (TOYO)
19012-PA0-004
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD (TOYO)
19015-MT3-003
|
$107.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING (TOYO)
19020-MM5-003
|
$48.30 | ||
|
Unavailable |
|||
|
#6
MOTOR, FAN
19030-MT3-003
|
$220.61 | ||
|
Unavailable |
|||
|
#7
GRILLE, RADIATOR
19032-MAJ-G20
|
$83.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RADIATOR
19045-MY3-621
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RADIATOR
19045-MY3-671
Superseded by 19045-MY3-621
|
$49.02 | ||
|
Unavailable |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-GE2-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Unavailable |
|||
|
#12
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-881
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-921
Superseded by 19055-MV9-881
|
$11.18 | ||
|
Unavailable |
|||
|
#13
THERMOSTAT
19300-MG9-000
|
$65.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, THERMOSTAT
19311-MT3-000
|
$82.55 | ||
|
Unavailable |
|||
|
#15
FILLER, NECK
19312-MS2-000
|
$130.74 | ||
|
Unavailable |
|||
|
#16
HOSE, RADIATOR (A)
19503-MT3-000
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, R. RADIATOR HOSE
19509-MM5-003
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENDING UNIT, WATER TEMPERATURE (DENSO)
37750-PC1-004
|
$98.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY., THERMO
37760-MR1-003
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (54X2) (ARAI)
91307-MB0-003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X22)
95701-06022-07
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
