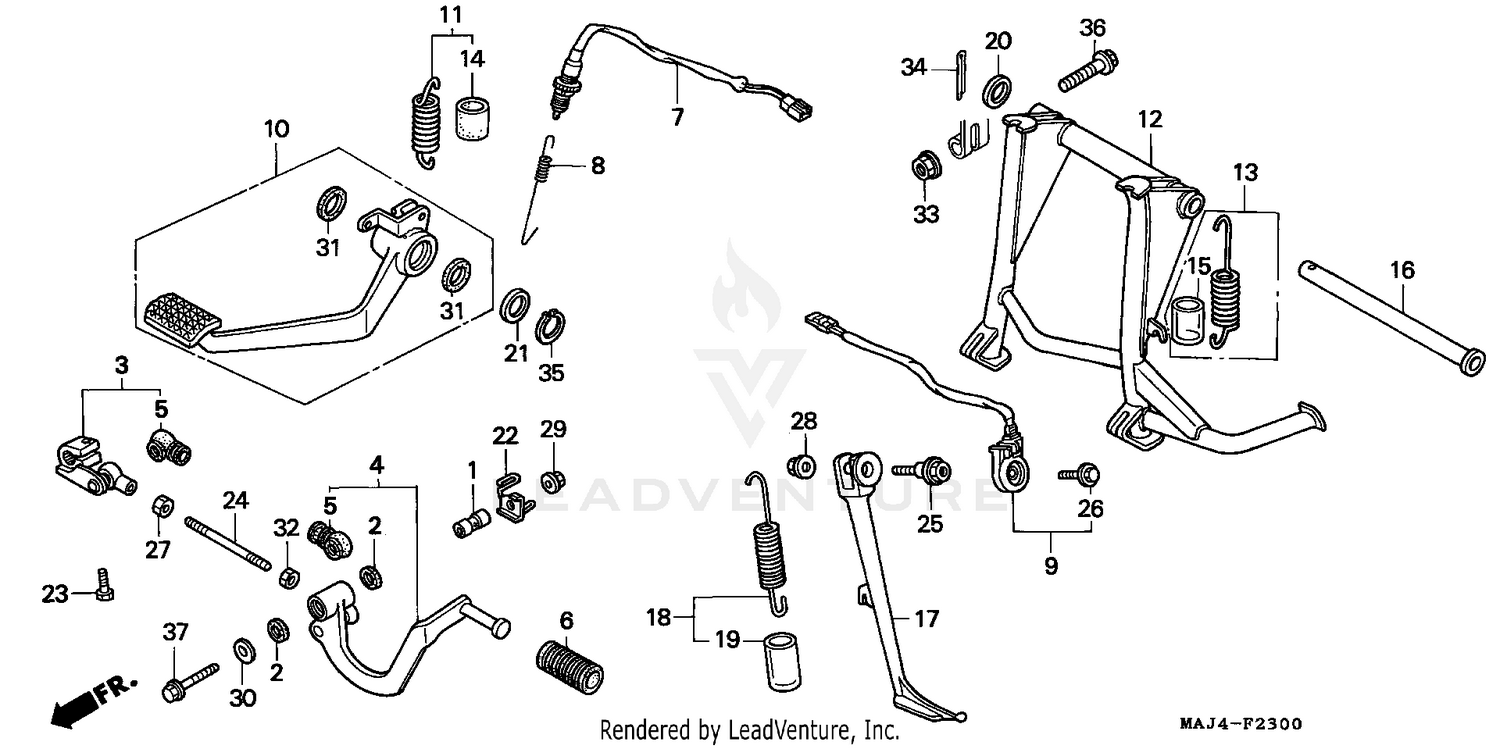

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MK3-000
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, DUST SEAL
24706-MK3-770
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, GEARSHIFT
24710-MY3-000
|
$49.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL, GEARSHIFT
24720-MT3-000
|
$80.38 | ||
|
Unavailable |
|||
|
#5
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MT3-000
Superseded by 35350-GBG-505
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, STOP SWITCH
35357-MT3-000
|
$4.67 | ||
|
Unavailable |
|||
|
#9
SWITCH SET, SIDE STAND
35700-MT3-305
|
$72.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PEDAL, RR. BRAKE
46500-MT3-000
Superseded by 46500-MT3-010
|
$86.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING ASSY., BRAKE RETURN
46515-MT3-000
|
$9.09 | ||
|
Unavailable |
|||
|
#12
STAND, MAIN
50500-MT3-010
|
$159.75 | ||
|
Unavailable |
|||
|
#13
SPRING ASSY., MAIN STAND
50520-MT3-601
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, MAIN STAND SPRING (NOT AVAILABLE)
50523-MT4-000
|
$7.12 | ||
|
Unavailable |
|||
|
#15
TUBE, MAIN STAND SPRING
50524-MT3-601
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, MAIN STAND PIVOT
50526-MT3-000
|
$18.06 | ||
|
Unavailable |
|||
|
#17
BAR, SIDE STAND
50530-MY3-000
|
$103.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING ASSY., SIDE STAND
50540-MT3-611
|
$9.43 | ||
|
Unavailable |
|||
|
#19
TUBE, SIDE STAND SPRING
50543-MT3-611
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, PILLION FOOTPEG SIDE
50713-KC1-700
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, WASHER
53312-657-000
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL (6X25)
90028-PL1-000
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, TIE ROD
90065-MT3-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SIDE STAND PIVOT
90108-MR5-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SPECIAL (6X16)
90147-MCE-950
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SPECIAL (6X16)
90147-MK6-671
Superseded by 90147-MCE-950
|
$0.64 | ||
|
Unavailable |
|||
|
#27
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SIDE STAND
90203-MF9-710
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER (8MM) (Honda Code 0285189)
90514-921-000
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (15X20X3)
91251-MT4-000
Superseded by 91251-MT4-003
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.78 | ||
|
Unavailable |
|||
|
#32
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#35
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (8X45)
95701-08045-07
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X45)
95801-08045-07
|
$2.38 | ||
|
Unavailable |
|||
