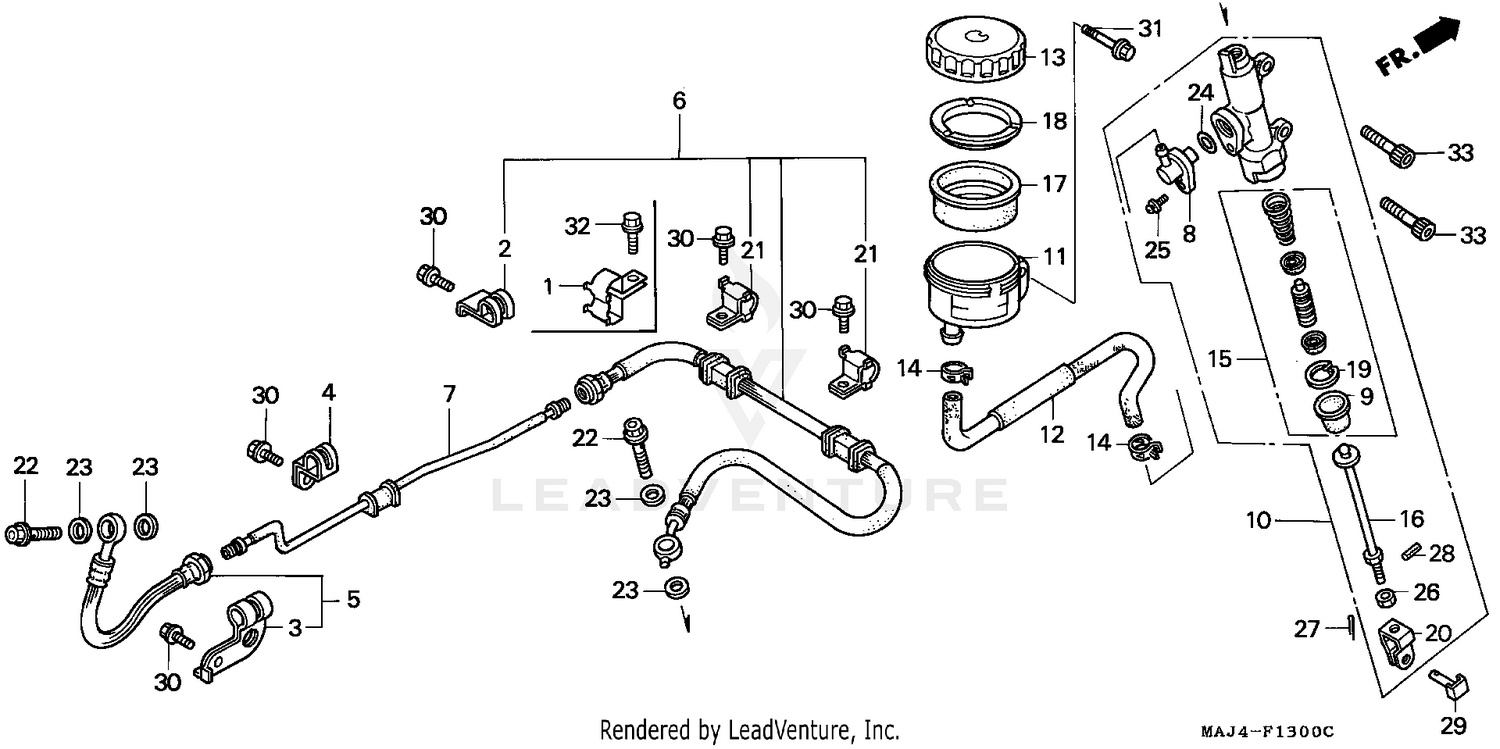

Rr. Brake Master Cyl. Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, RR. BRAKE HOSE
43155-MAJ-G40
|
$10.57 | ||
|
Unavailable |
|||
|
#2
CLAMP, RR. BRAKE HOSE (A)
43156-MN5-000
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, RR. BRAKE HOSE (B)
43157-MT3-000
|
$10.24 | ||
|
Unavailable |
|||
|
#4
CLAMP, RR. BRAKE PIPE
43158-MT3-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, RR. BRAKE (A) (NOT AVAILABLE)
43310-MT3-003
|
$46.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE B, RR. BRAKE (NOT AVAILABLE)
43313-MAJ-G21
|
$61.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, RR. BRAKE
43314-MT3-000
|
$18.10 | ||
|
Unavailable |
|||
|
#8
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
43510-MT3-305
|
$169.39 | ||
|
Unavailable |
|||
|
#11
CUP, MASTER CYLINDER OIL
43511-MT3-006
|
$40.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, MASTER CYLINDER
43512-MT3-006
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Unavailable |
|||
|
#16
ROD, PUSH
43530-MT3-036
|
$27.51 | ||
|
Unavailable |
|||
|
#17
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, BRAKE ROD
46504-MAH-671
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#23
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (8MM)
90305-MAH-671
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, SPRING (2X10)
94305-20102
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)
96001-06025-07
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, SOCKET (6X16)
96600-06016-08
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
