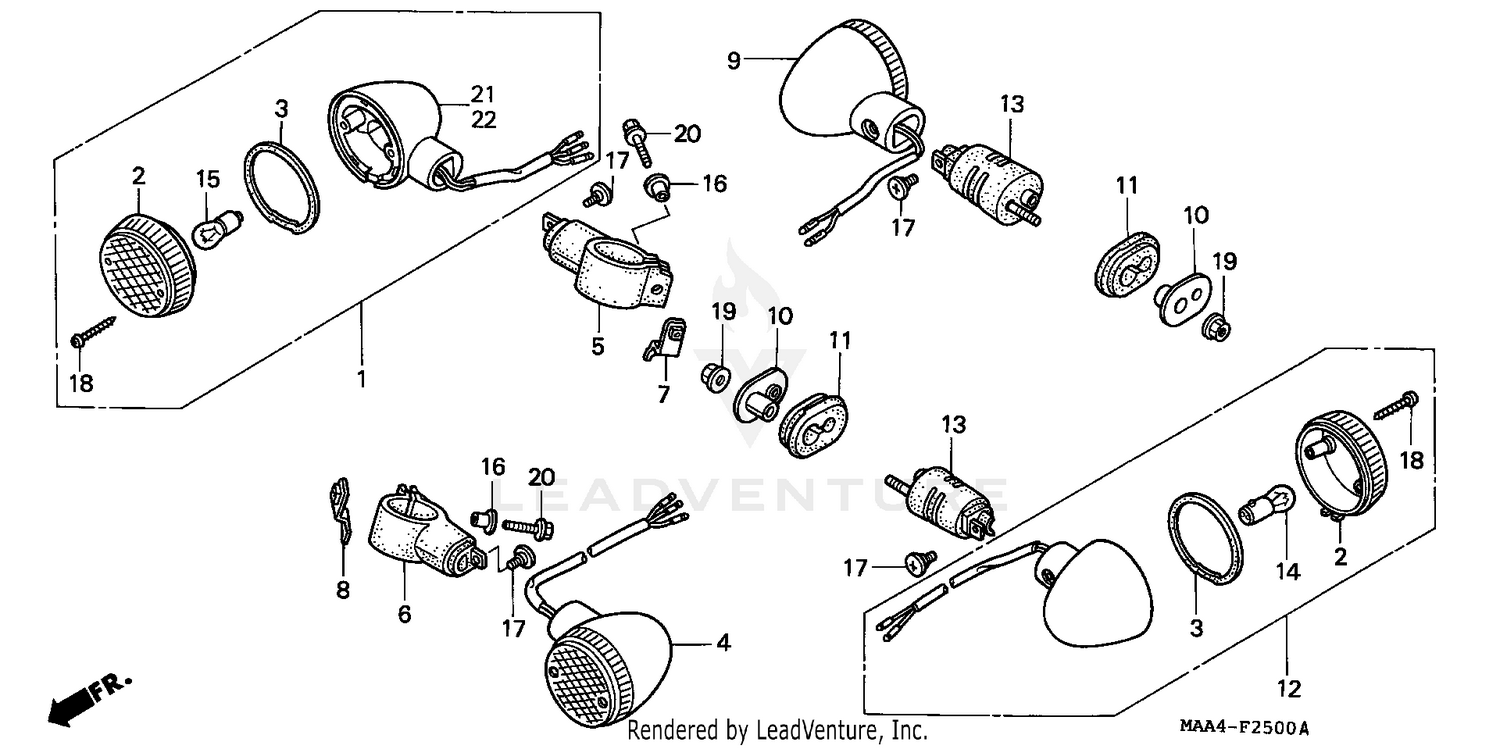

Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TURN SIGNAL, R. FR.
33400-MAH-671
|
$65.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, FR. TURN SIGNAL
33401-MK7-672
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, TURN SIGNAL LENS
33407-MK7-671
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
TURN SIGNAL, L. FR.
33450-MAH-671
|
$65.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, R. FR. TURN SIGNAL
33490-MN0-003
|
$57.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, L. FR. TURN SIGNAL
33491-MN0-003
|
$66.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, R. FR. TURN SIGNAL
33495-MAH-000
|
$31.19 | ||
|
Unavailable |
|||
|
#8
STOPPER, L. FR. TURN SIGNAL
33496-MAH-000
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
TURN SIGNAL ASSY., R. RR. (STANLEY)
33600-MAA-A30
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, TURN SIGNAL MOUNT
33602-MM8-770
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RR. TURN SIGNAL MOUNTING
33603-MM8-000
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
TURN SIGNAL, L. RR.
33650-MAH-671
|
$65.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, RR. TURN SIGNAL
33690-MM8-000
|
$56.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB, TURN SIGNAL (12V 23W) (STANLEY)
34905-268-671
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB (12V 23/8W) (STANLEY)
34905-425-671
|
$8.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR, NUMBER PLATE BRACKET
84702-KV0-670
|
$5.07 | ||
|
Unavailable |
|||
|
#17
SCREW, SPECIAL (6X8)
90380-MZ5-000
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (4X25)
93901-34610
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BASE, R. FR. TURN SIGNAL
33405-MAH-671
|
$57.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
BASE, L. FR. TURN SIGNAL
33455-MAH-671
|
$42.49 | ||
|
Unavailable |
|||
