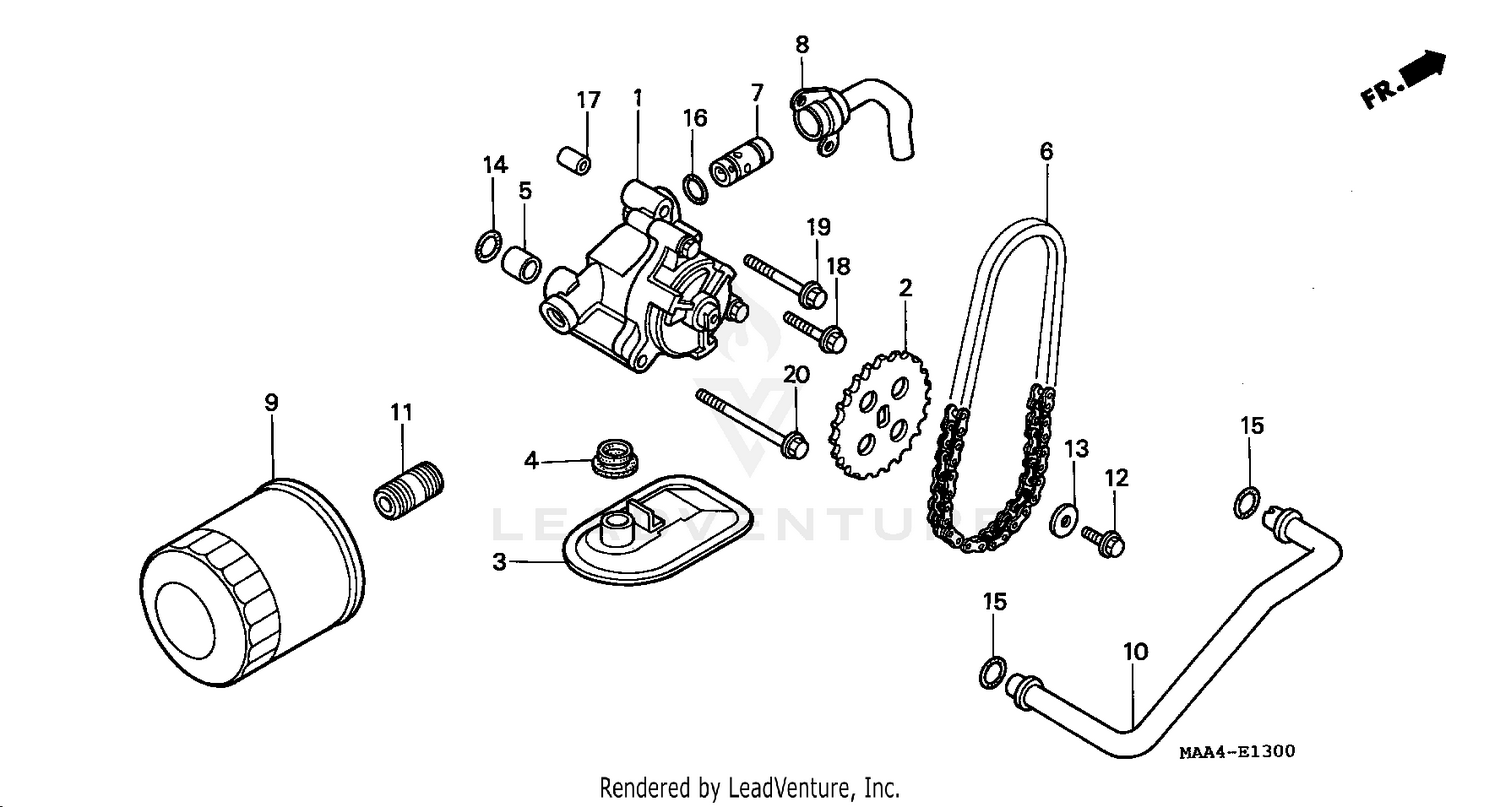

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-MAA-000
|
$195.28 | ||
|
Unavailable |
|||
|
#2
SPROCKET, OIL PUMP DRIVEN (25T)
15134-MZ5-000
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
STRAINER, OIL
15153-MAA-000
|
$17.61 | ||
|
Unavailable |
|||
|
#4
GASKET, OIL STRAINER
15154-425-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, O-RING
15155-300-000
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CHAIN, STARTING (56L)
15161-ME5-003
Superseded by 28101-KB4-671
|
$46.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE ASSY., RELIEF
15220-ME9-770
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, OIL RELIEF
15240-MAH-000
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
FILTER, OIL (WAKO FILTER)
15410-MM9-013
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
Unavailable |
|||
|
#10
PIPE, OIL
15511-MG8-000
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, OIL FILTER
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (6X16)
90021-KE8-010
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (6X2.3)
90488-MB0-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (14.8X2.4) (NOK)
91356-MA6-005
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (14.6X3.6) (NOK)
91309-MB0-003
Superseded by 91308-MA6-005
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (14.8X2.4) (NOK)
91356-MA6-003
Superseded by 91356-MA6-005
|
$2.13 | ||
|
Unavailable |
|||
|
#16
O-RING (14.8X2.4) (NOK)
91356-MA6-005
|
$2.13 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X30)
95701-06030-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
