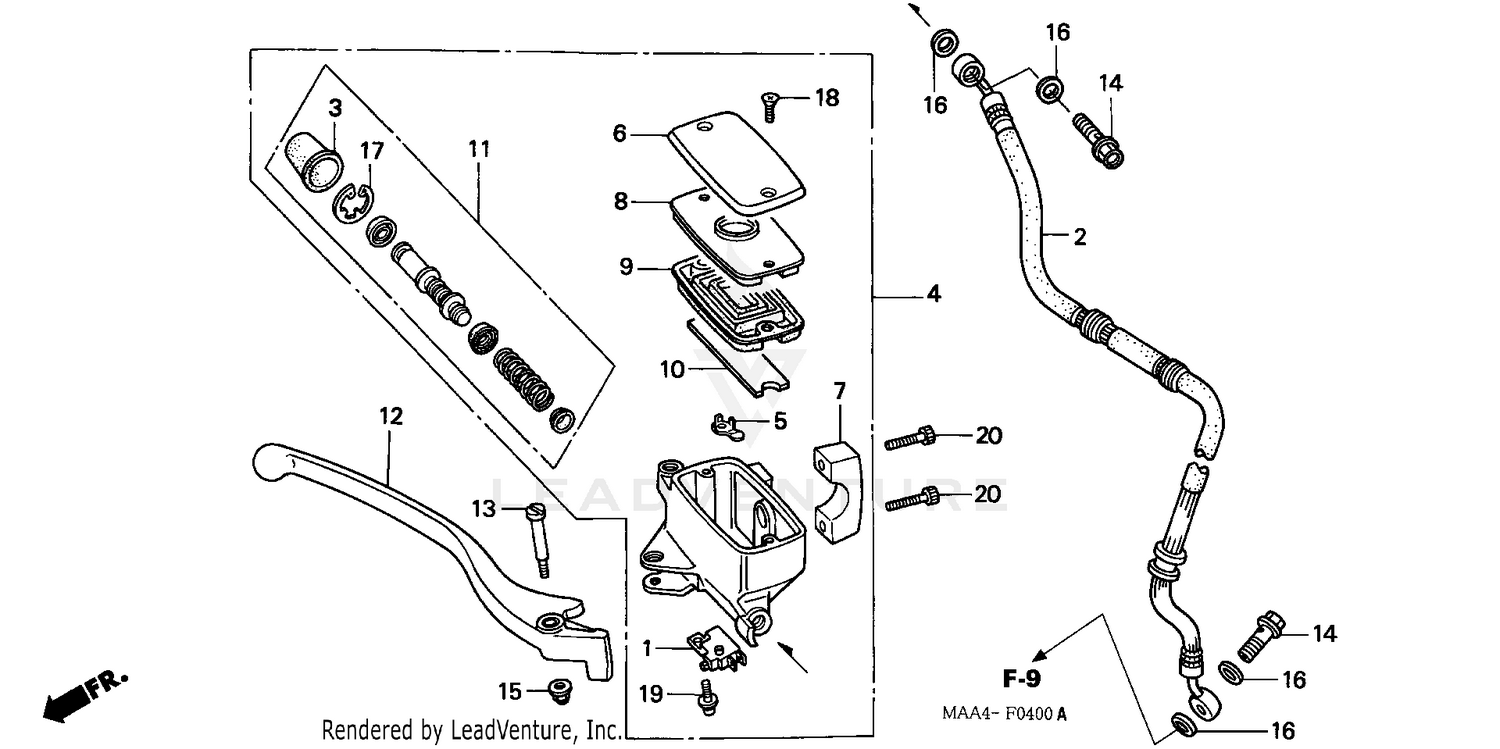

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-MAA-A81
|
$39.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-MAA-A90
Superseded by 45126-MAA-A81
|
$39.33 | ||
|
Unavailable |
|||
|
#3
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-MAH-A81
Superseded by 45510-MFR-305
|
$302.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER (NISSIN)
45513-MR1-016
|
$37.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER (NISSIN)
45517-MR1-671
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, DIAPHRAGM
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT, FR. MASTER CYLINDER (NISSIN)
45523-MN5-006
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLE (COO)
53175-ML5-006
Superseded by 53175-MFR-305
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-1A
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#20
BOLT, SOCKET (6X22)
96600-06022-10
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (6X22)
96700-06022-10
Superseded by 96600-06022-10
|
$2.40 | ||
|
Unavailable |
|||
