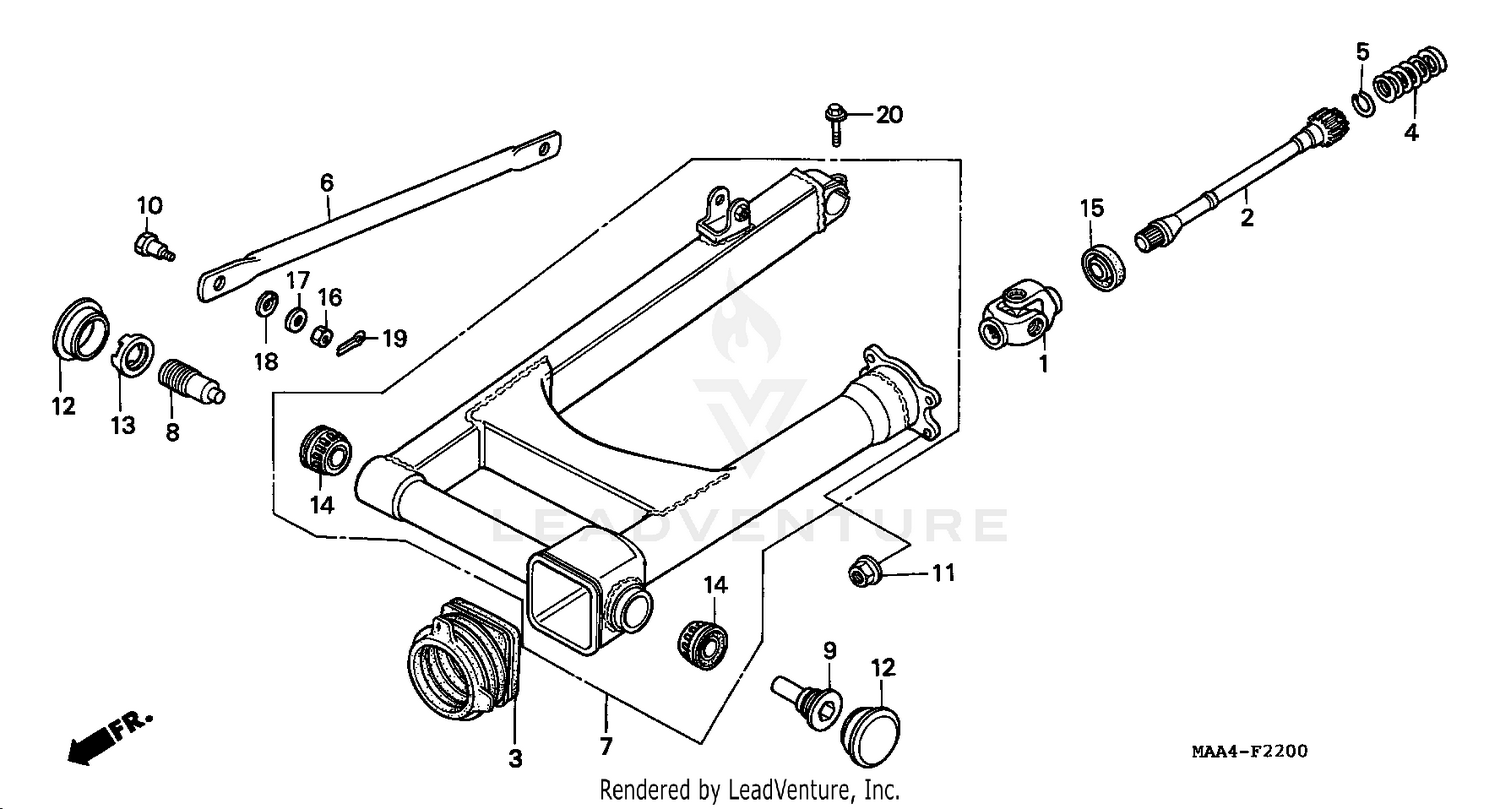

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT ASSY., YOKE
40200-MAH-A00
|
$189.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PROPELLER
40201-MAH-A00
|
$135.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT, JOINT
40207-MG8-000
|
$13.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PROPELLER SHAFT
40215-ME9-003
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
40221-MB0-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, RR. BRAKE STOPPER
43431-ME9-010
|
$23.24 | ||
|
Unavailable |
|||
|
#7
SWINGARM ASSY., RR. *NH1* (BLACK)
52100-MAA-B00ZA
|
$317.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, R. SWINGARM PIVOT
90121-MAH-A00
|
$13.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, L. SWINGARM PIVOT
90122-MAH-A00
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RR. BRAKE STOPPER ARM
90133-286-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEX. (10MM)
90308-357-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, R. LOCK NUT
90312-MB0-700
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SWINGARM PIVOT LOCK
90355-469-000
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, TAPER ROLLER (17X40X13.25) (KOYO)
91066-HA7-672
|
$75.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (27X43X7)
91261-ME9-005
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SPRING (10MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X32)
95701-08032-00
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
