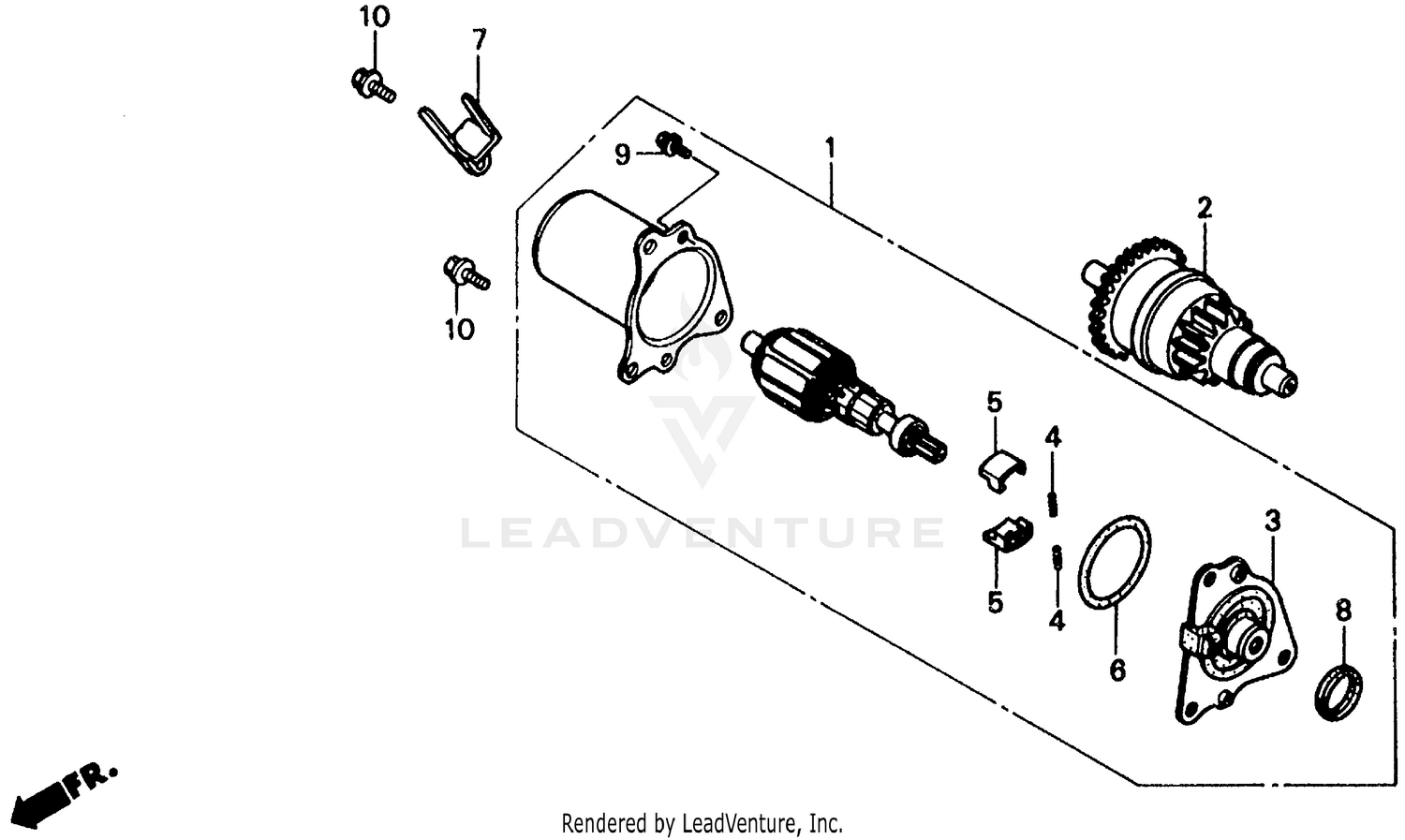

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR UNIT, STARTER
31200-GAB-018
|
$174.94 | ||
|
Unavailable |
|||
|
#1
MOTOR UNIT, STARTER
31200-GS6-701
Superseded by 31200-GAB-018
|
$174.94 | ||
|
Unavailable |
|||
|
#1
MOTOR UNIT, STARTER
31200-GS6-702
Superseded by 31200-GAB-018
|
$174.94 | ||
|
Unavailable |
|||
|
#2
PINION ASSY., STARTER
31209-GS6-701
Superseded by 31209-GS6-702
|
$99.16 | ||
|
Unavailable |
|||
|
#2
PINION ASSY., STARTER
31209-GS6-702
|
$99.16 | ||
|
Unavailable |
|||
|
#3
BRACKET, FR.
31213-GS6-701
|
$24.78 | ||
|
Unavailable |
|||
|
#4
SPRING, BRUSH
31214-GS6-701
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, BRUSH
31215-GS6-701
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
31217-GS6-701
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRE
32964-GK8-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRE
32964-GS6-700
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, STARTER MOTOR
91309-GS6-700
|
$3.78 | ||
|
Unavailable |
|||
|
#9
SCREW-WASHER (4X8)
93892-04008-08
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
