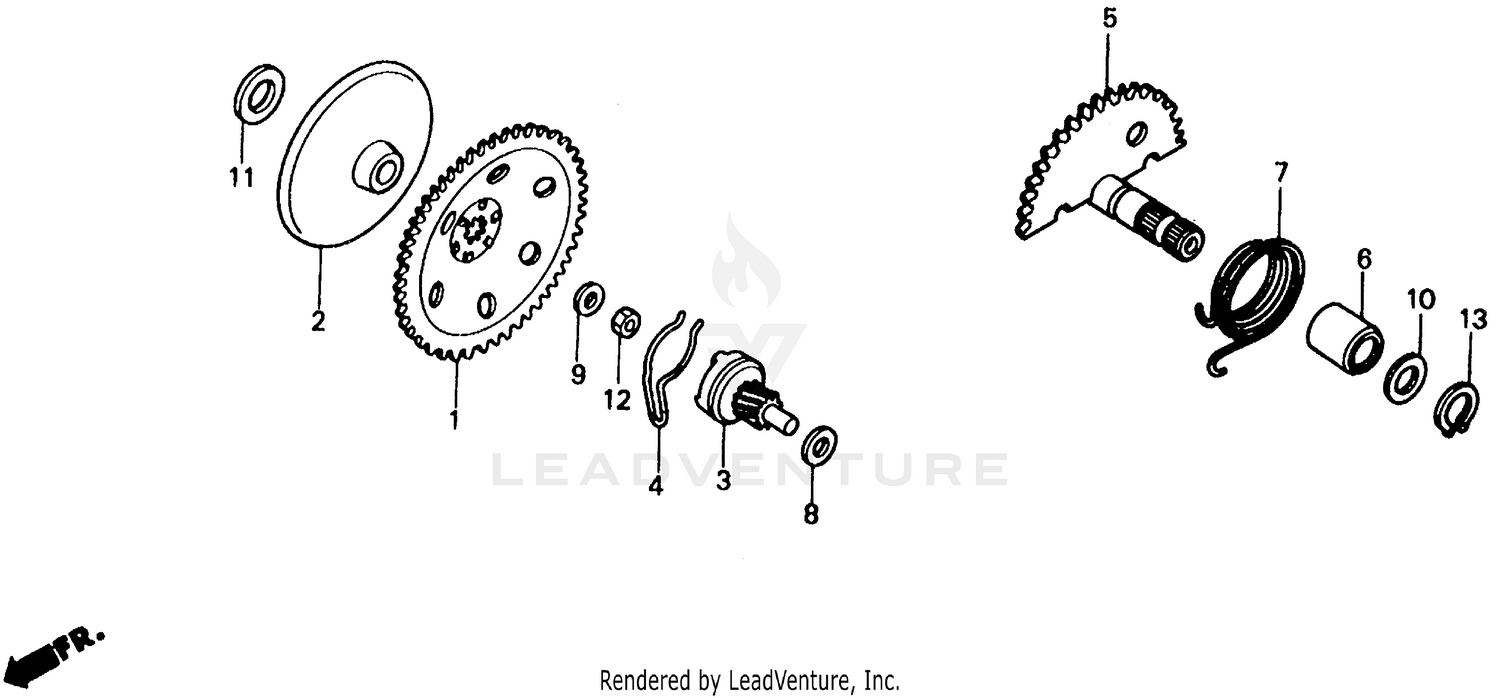

Drive Face Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE, DRIVE (64T)
22102-GS6-700
|
$25.50 | ||
|
Unavailable |
|||
|
#2
FACE, R. DRIVE
22103-GS6-000
|
$33.62 | ||
|
Unavailable |
|||
|
#3
GEAR, KICK DRIVEN (7T)
28220-GR2-000
|
$22.93 | ||
|
Unavailable |
|||
|
#4
SPRING, STARTER GEAR FRICTION
28223-GR2-020
|
$3.56 | ||
|
Unavailable |
|||
|
#5
SPINDLE, KICK STARTER (42T)
28250-GR2-000
|
$42.67 | ||
|
Unavailable |
|||
|
#6
BUSH, KICK SPINDLE
28253-GN2-601
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, KICK RETURN
28281-GR2-023
|
$7.55 | ||
|
Unavailable |
|||
|
#8
WASHER, THRUST (10MM)
90412-329-000
Superseded by 90412-KZL-840
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL (10X18)
90426-001-000
Superseded by 90426-GW0-730
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL (10X18)
90426-GW0-730
|
$3.98 | ||
|
Unavailable |
|||
|
#10
WASHER (14MM)
90451-GN2-600
Superseded by 90451-GBL-870
|
$3.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, THRUST (12MM)
90452-166-600
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEX. (10MM)
94002-10200-0S
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP (OUTER) (14MM)
94511-14000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
