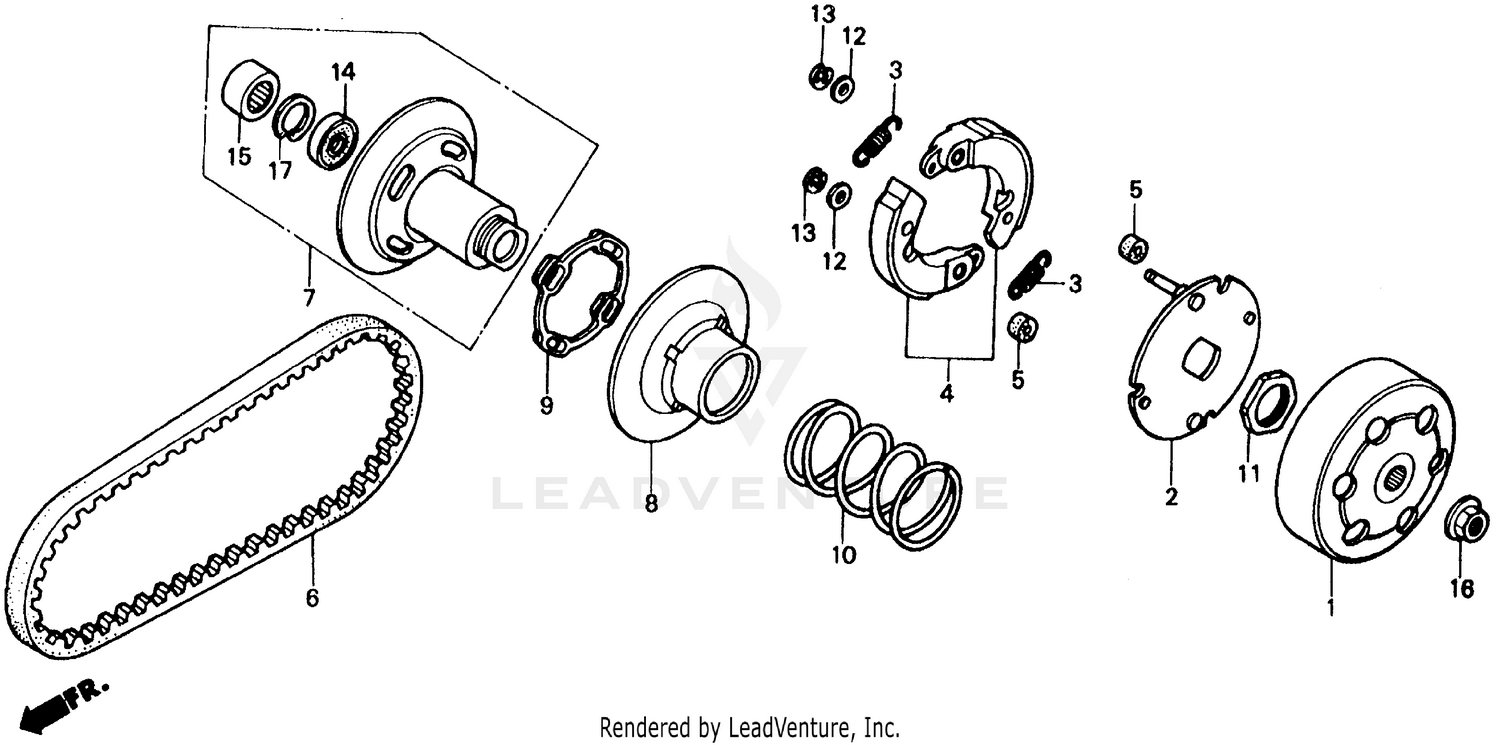

Driven Face Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER)
22100-GS6-000
|
$64.68 | ||
|
Unavailable |
|||
|
#2
PLATE, DRIVE
22350-GS6-000
|
$37.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, CLUTCH
22401-GS6-000
|
$3.23 | ||
|
Unavailable |
|||
|
#4
WEIGHT SET, CLUTCH
22535-GS6-315
|
$37.71 | ||
|
Unavailable |
|||
|
#5
RUBBER, CLUTCH DAMPER
22804-148-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
BELT, DRIVE
23100-GK8-870
|
$47.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
FACE ASSY., DRIVEN
23200-GS6-000
|
$81.53 | ||
|
Unavailable |
|||
|
#8
FACE, MOVABLE DRIVEN
23220-GS6-010
|
$41.17 | ||
|
Unavailable |
|||
|
#9
PLATE, SLIDE
23224-GS6-000
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, DRIVEN FACE
23233-GS6-000
|
$14.93 | ||
|
Unavailable |
|||
|
#11
NUT, SPECIAL (28MM)
90202-187-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, THRUST (6MM)
90442-GB2-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP (6MM)
90454-GB2-000
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (6901U) (TOYO)
91001-GA7-701
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (15X25X15) (TOYO)
91103-GK8-003
|
$12.75 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP (INNER) (24MM)
94520-24000
|
$1.27 | ||
|
Unavailable |
|||
