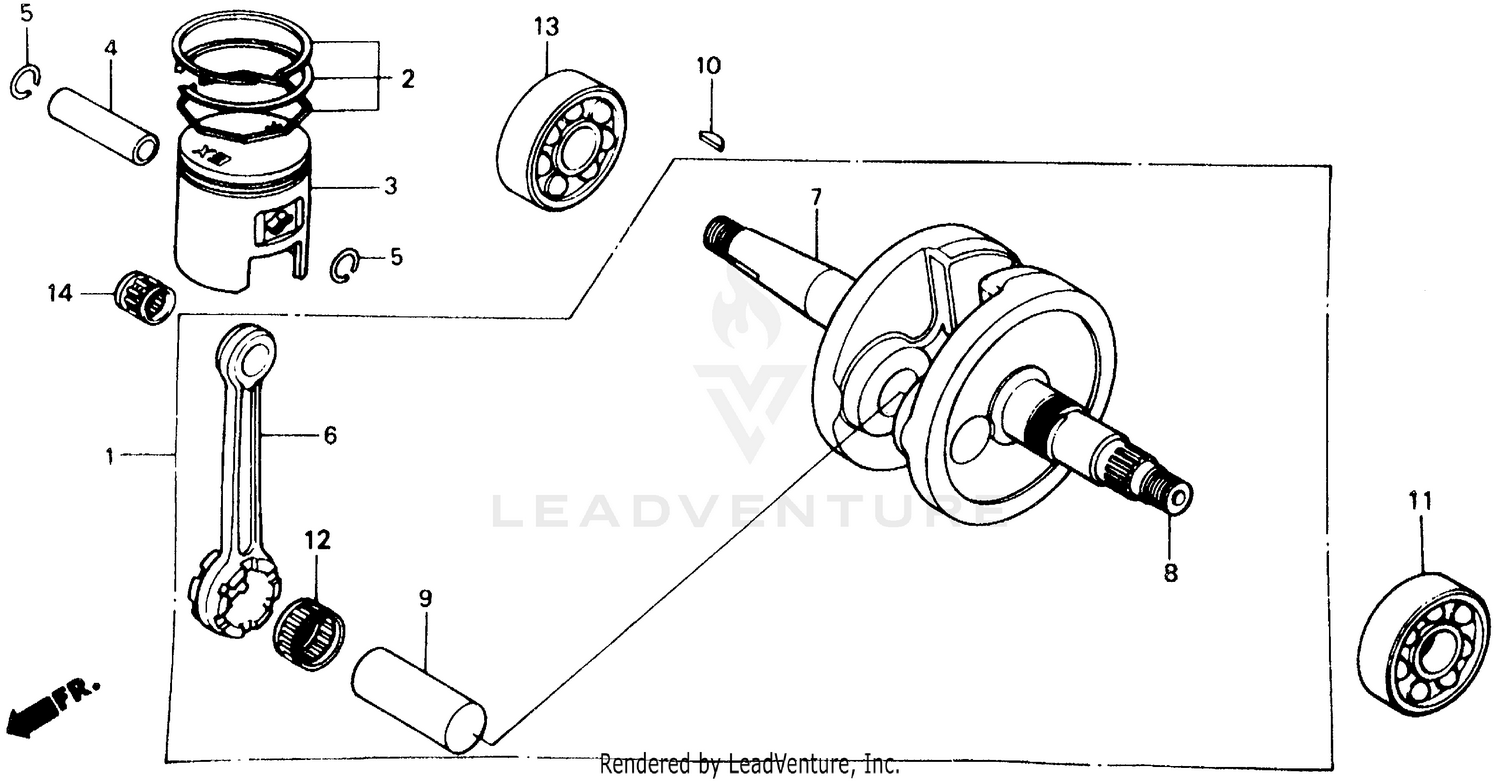

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-GS6-000
|
$209.42 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD) (TEIKOKU)
13010-GJ5-003
Superseded by 13010-GJ5-015
|
$29.08 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD) (TEIKOKU)
13010-GJ5-005
Superseded by 13010-GJ5-015
|
$29.08 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD) (TEIKOKU)
13010-GJ5-015
|
$29.08 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25) (NIPPON)
13012-GJ5-305
|
$27.56 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50) (NIPPON)
13013-GJ5-305
|
$27.56 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25)
13106-GK8-306
|
$38.96 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50)
13107-GK8-306
|
$35.70 | ||
|
Unavailable |
|||
|
#3
PISTON A (-0.040/-0.045)
13101-GK8-780
Superseded by 13101-GS6-505
|
$42.82 | ||
|
Unavailable |
|||
|
#3
PISTON A (-0.040/-0.045)
13101-GS6-505
|
$42.82 | ||
|
Unavailable |
|||
|
#3
PISTON A (-0.040/-0.045)
13101-GS6-670
Superseded by 13101-GS6-505
|
$42.82 | ||
|
Unavailable |
|||
|
#3
PISTON A (-0.040/-0.045)
13102-GS6-670
Superseded by 13101-GS6-505
|
$42.82 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-GK8-000
Superseded by 13111-GS7-000
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-GS7-000
|
$11.57 | ||
|
Unavailable |
|||
|
#5
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
13201-GS6-300
Superseded by 13201-GS7-300
|
$58.73 | ||
|
Unavailable |
|||
|
#6
ROD, CONNECTING
13201-GS7-300
|
$58.73 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT, R.
13311-GS6-300
|
$95.05 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT, L.
13321-GS6-300
|
$95.05 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK
13381-GR1-300
Superseded by 13381-GR1-702
|
$13.52 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (3MM)
90741-035-000
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, SPECIAL RADIAL BALL (6204) (NTN)
91001-GM4-013
Superseded by 91001-GM4-033
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, SPECIAL RADIAL BALL (6204) (NTN)
91001-GM4-023
Superseded by 91001-GM4-033
|
$33.85 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (6204)
91001-GM4-033
|
$33.85 | ||
|
Unavailable |
|||
|
#12
BEARING, CONNECTING ROD BIG END (RED) (TOYO)
91001-122-004
Superseded by 91001-122-008
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CONNECTING ROD BIG END (RED) (TOYO)
91001-122-008
|
$13.09 | ||
|
Unavailable |
|||
|
#12
BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)
91002-122-004
Superseded by 91002-122-008
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)
91002-122-008
|
$15.02 | ||
|
Unavailable |
|||
|
#12
BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)
91003-122-004
Superseded by 91003-122-008
|
$12.35 | ||
|
Unavailable |
|||
|
#12
BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)
91003-122-008
|
$12.35 | ||
|
Unavailable |
|||
|
#12
BEARING, CONNECTING ROD BIG END (GREEN) (TOYO)
91004-122-004
Superseded by 91004-122-008
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CONNECTING ROD BIG END (GREEN) (TOYO)
91004-122-008
|
$11.42 | ||
|
Unavailable |
|||
|
#13
BEARING, RADIAL BALL
91004-GJ5-013
Superseded by 91004-GJ5-023
|
$29.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL BEARING, SPECIAL RADIAL BALL
91004-GJ5-023
|
$29.05 | ||
|
Unavailable |
|||
|
#14
BEARING, CONNECTING ROD SMALL END (TOYO)
91102-GC7-013
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
