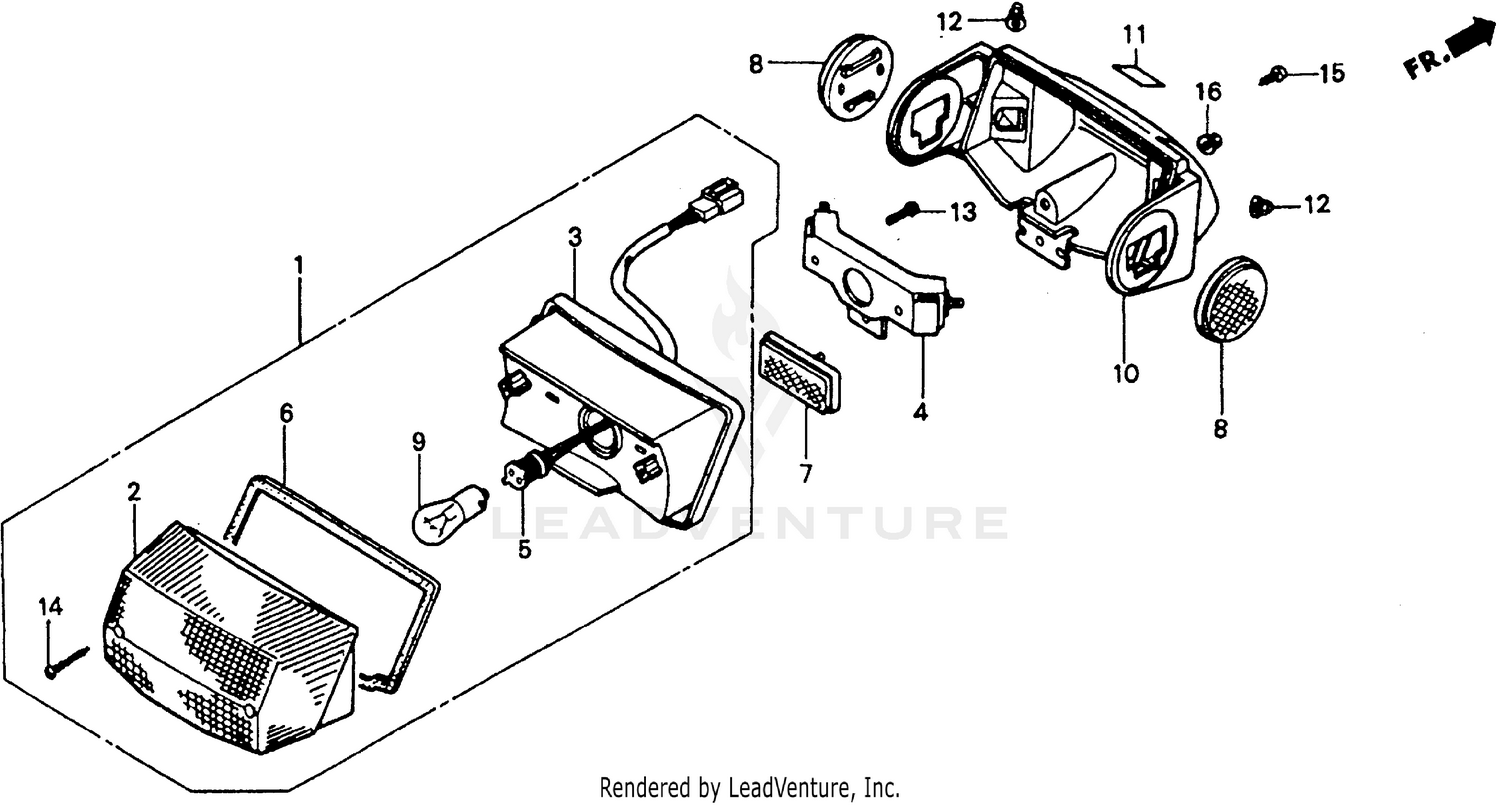

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT (12V 32/3CP)
33701-GS7-671
|
$85.29 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
33702-GS7-671
Superseded by 33702-GC8-614
|
$18.22 | ||
|
Unavailable |
|||
|
#3
BASE, TAILLIGHT
33704-GS7-671
|
$32.02 | ||
|
Unavailable |
|||
|
#4
BRACKET, TAILLIGHT SETTING
33705-GS7-670
|
$21.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, TAILLIGHT
33706-GS7-670
|
$11.17 | ||
|
Unavailable |
|||
|
#6
GASKET, TAILLIGHT LENS
33709-GC8-611
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLECTOR, REFLEX
33741-GK8-672
|
$23.77 | ||
|
Unavailable |
|||
|
#8
REFLECTOR, RR. REFLEX
33741-GS7-671
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-341-671
Superseded by 34906-MG9-771
|
$5.20 | ||
|
Unavailable |
|||
|
#10
COVER, TAILLIGHT
80108-GS7-670
|
$18.52 | ||
|
Unavailable |
|||
|
#11
LABEL, RR. CARRIER *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
81220-GS7-671ZB
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CAP (6MM)
90201-428-900
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CAP
90215-GM0-000
Superseded by 90201-428-900
|
$2.55 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (4X30)
93901-34710
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING (4X10)
93903-34280
|
$0.87 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (5MM)
94050-05000
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
