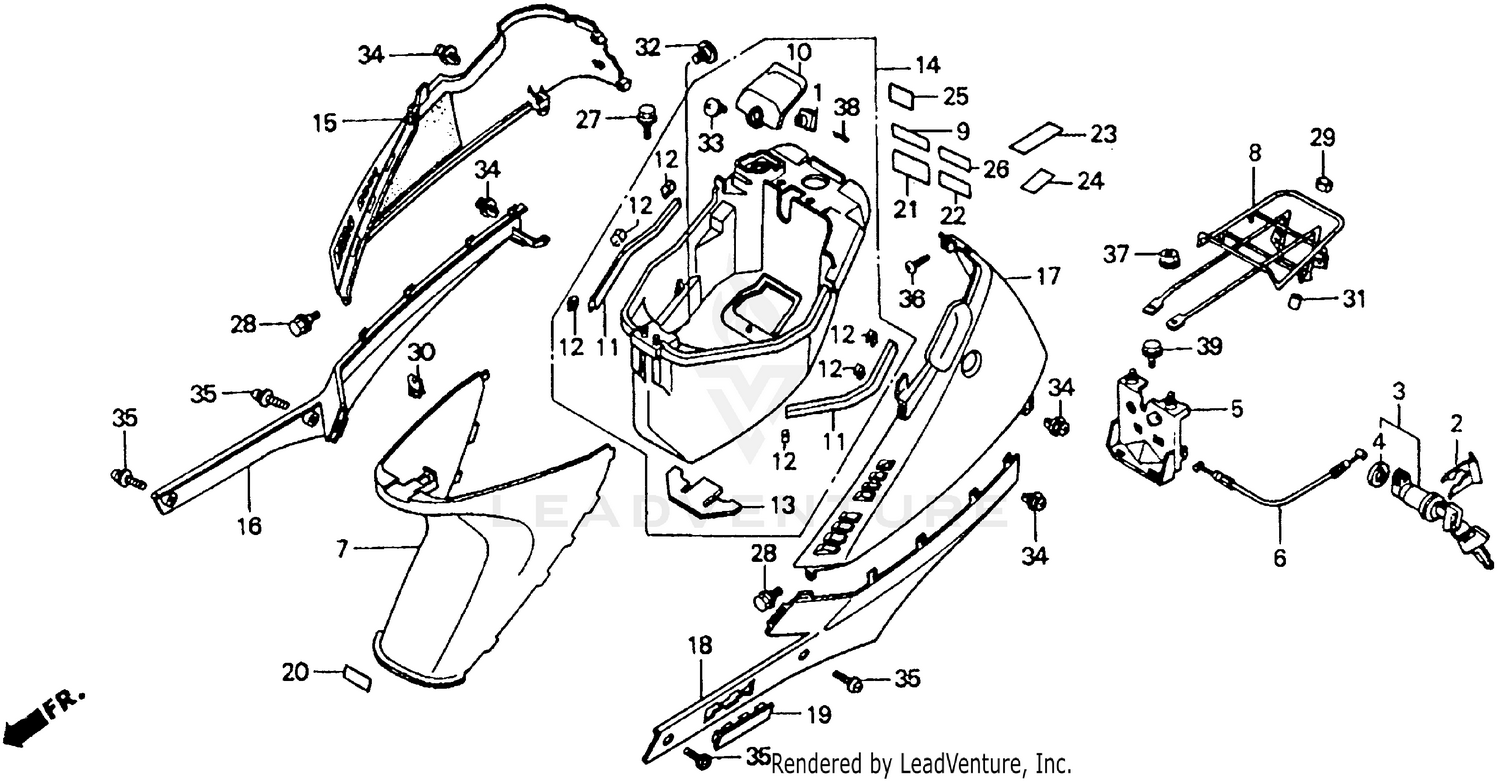

Body Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SPRING, LOCK KEY SETTING
75581-673-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
KEY ASSY., SEAT LOCK
77230-KM1-000
|
$35.45 | ||
|
Unavailable |
|||
|
#4
COLLAR, SEAT LOCK KEY
77231-KM1-000
|
$3.45 | ||
|
Unavailable |
|||
|
#5
CATCH, SEAT
77235-GS7-000
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, SEAT LOCK
77240-GS7-000
|
$7.81 | ||
|
Unavailable |
|||
|
#7
COVER, CENTER BODY *NH154* (TASMAN GRAY)
80150-GS7-000ZB
|
$99.87 | ||
|
Unavailable |
|||
|
#8
CARRIER, LUGGAGE
81200-GS7-670
|
$83.42 | ||
|
Unavailable |
|||
|
#9
LABEL, CENTER COMPARTMENT *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
81218-GS7-670ZA
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, PLUG MAINTENANCE
81251-GS7-670
|
$18.52 | ||
|
Unavailable |
|||
|
#11
SEAL, LUGGAGE BOX
81252-GS7-000
|
$9.73 | ||
|
Unavailable |
|||
|
#12
CLIP, SEAL RUBBER
81253-GS7-000
|
$3.78 | ||
|
Unavailable |
|||
|
#14
BOX ASSY., LUGGAGE
81260-GS7-670
Superseded by 81260-GS7-671
|
$207.45 | ||
|
Unavailable |
|||
|
#15
COVER, R. BODY *NH138* (WOL) (SHASTA WHITE)
83504-GS7-000ZA
|
$110.60 | ||
|
Unavailable |
|||
|
#15
COVER, R. BODY *R134* (WOL) (FIGHTING RED)
83504-GS7-000ZC
|
$118.34 | ||
|
Unavailable |
|||
|
#16
COVER, R. SIDE *NH201R* (WOL) (HUSKY GRAY)
83520-GS7-000ZA
Superseded by 83520-GS7-000ZH
|
$94.54 | ||
|
Unavailable |
|||
|
#16
COVER, R. SIDE *NH201R* (WOL) (HUSKY GRAY)
83520-GS7-000ZH
|
$94.54 | ||
|
Unavailable |
|||
|
#17
COVER, L. BODY *NH138* (WOL) (SHASTA WHITE)
83604-GS7-000ZA
|
$134.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, L. BODY *R134* (WOL) (FIGHTING RED)
83604-GS7-000ZC
|
$118.34 | ||
|
Unavailable |
|||
|
#18
COVER, L. SIDE *NH201R* (WOL) (HUSKY GRAY)
83620-GS7-000ZA
Superseded by 83620-GS7-000ZH
|
$96.41 | ||
|
Unavailable |
|||
|
#18
COVER, L. SIDE *NH201R* (WOL) (HUSKY GRAY)
83620-GS7-000ZH
|
$96.41 | ||
|
Unavailable |
|||
|
#19
LID, SIDE COVER *NH201R* (HUSKY GRAY)
83630-GS7-000ZA
Superseded by 83630-GS7-000ZH
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
LID, SIDE COVER *NH201R* (HUSKY GRAY)
83630-GS7-000ZH
|
$8.23 | ||
|
Unavailable |
|||
|
#20
LABEL, TIRE *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
87505-GS7-670ZB
|
$5.20 | ||
|
Unavailable |
|||
|
#21
LABEL B, CAUTION (TYPEW)
87509-GS7-670ZA
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL, ACCESSORIES & LOADING
87512-GS7-670
|
$5.64 | ||
|
Unavailable |
|||
|
#23
LABEL, FUEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
87512-147-670ZB
|
$2.54 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6MM)
90111-147-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CAP (6MM)
90201-428-900
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CAP
90215-GM0-000
Superseded by 90201-428-900
|
$2.55 | ||
|
Unavailable |
|||
|
#30
NUT, CLIP (6MM)
90305-GK8-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, BODY COVER
90312-GF0-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, SPECIAL (6X14)
90380-GS7-000
|
$3.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCREW, SPECIAL (6X17)
90381-GS7-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SCREW-WASHER (5X16)
93891-05016-07
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW, TAPPING (4X12)
93903-34310
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PIN, COTTER (1.6X25)
94201-15150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PIN, COTTER (1.6X25)
94201-15200
Superseded by 94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#38
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#38
PIN, COTTER (1.6X25)
94201-16180
Superseded by 94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#38
PIN, COTTER (1.6X25)
94201-16200
Superseded by 94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#38
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
