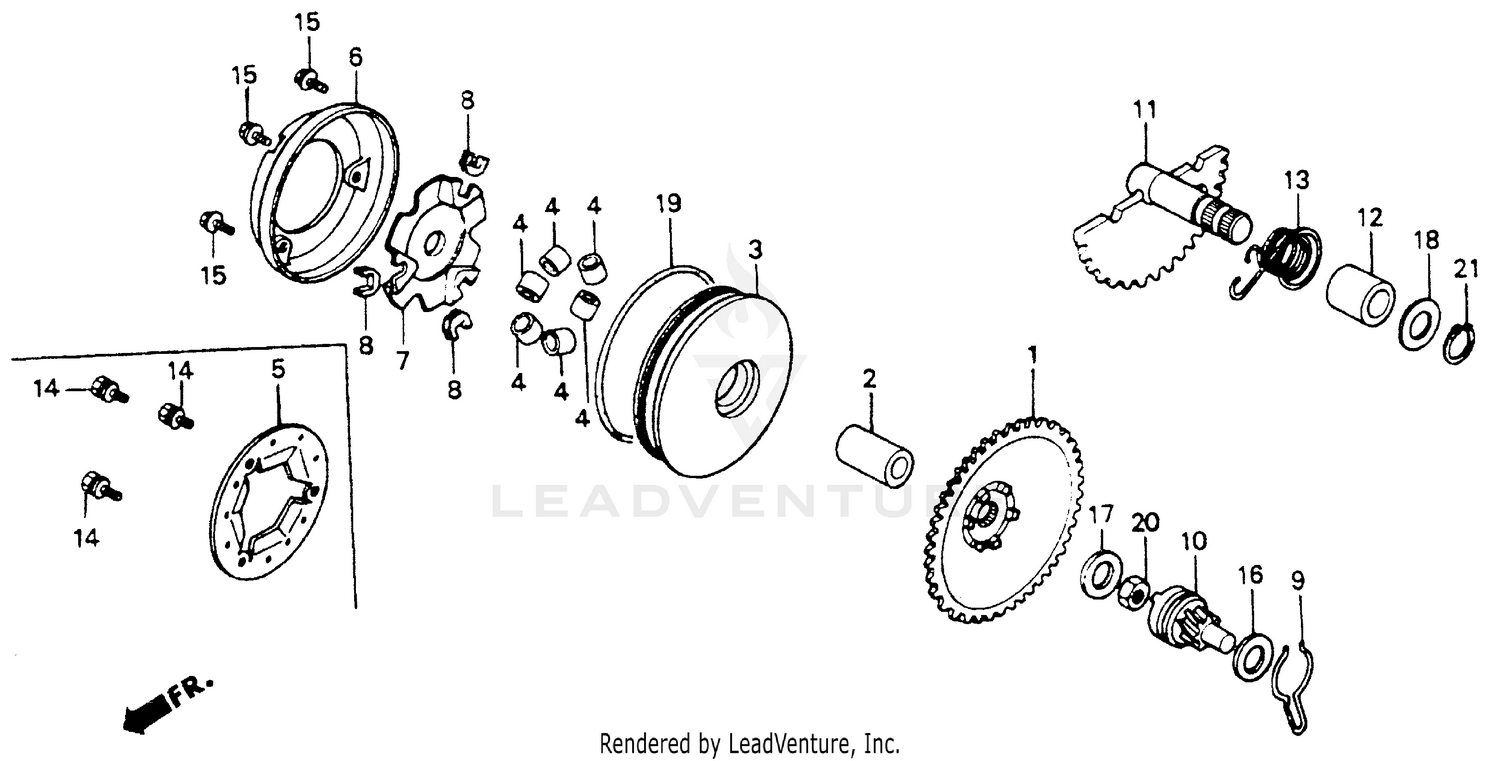

Drive Face Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE, DRIVE (64T)
22102-GR1-000
|
$22.11 | ||
|
Unavailable |
|||
|
#2
BOSS, DRIVE FACE
22105-GR1-000
|
$15.12 | ||
|
Unavailable |
|||
|
#3
FACE, MOVABLE DRIVE
22110-GR1-000
Superseded by 22110-GW0-000
|
$63.86 | ||
|
Unavailable |
|||
|
#3
FACE, MOVABLE DRIVE
22110-GW0-000
|
$63.86 | ||
|
Unavailable |
|||
|
#4
ROLLER, WEIGHT
22121-GR1-010
|
$3.97 | ||
|
Unavailable |
|||
|
#6
SEAL, MOVABLE FACE
22126-GR1-000
Superseded by 22126-GR1-010
|
$10.24 | ||
|
Unavailable |
|||
|
#6
SEAL, MOVABLE FACE
22126-GR1-010
|
$10.24 | ||
|
Unavailable |
|||
|
#7
PLATE, RAMP (S71)
22131-GS7-000
|
$20.86 | ||
|
Unavailable |
|||
|
#8
PIECE, SLIDE
22132-GN2-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, STARTER GEAR FRICTION
28223-GM9-010
|
$4.23 | ||
|
Unavailable |
|||
|
#10
GEAR, KICK DRIVEN (7T)
28230-GN2-600
|
$23.91 | ||
|
Unavailable |
|||
|
#11
SPINDLE, KICK STARTER (42T)
28250-GN2-601
|
$49.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, KICK SPINDLE
28253-GN2-601
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, KICK RETURN (CHUO HATSUJO)
28281-GN2-602
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (4X10)
90005-187-000
Superseded by 90005-GAH-600
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST (10MM)
90412-329-000
Superseded by 90412-KZL-840
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPECIAL (10X18)
90426-GW0-730
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPECIAL (10X18)
90426-001-000
Superseded by 90426-GW0-730
|
$3.98 | ||
|
Unavailable |
|||
|
#18
WASHER (14MM)
90451-GN2-600
Superseded by 90451-GBL-870
|
$3.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING (78X2.5)
91302-187-000
|
$5.39 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (10MM)
94002-10200-0S
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (OUTER) (14MM)
94511-14000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
