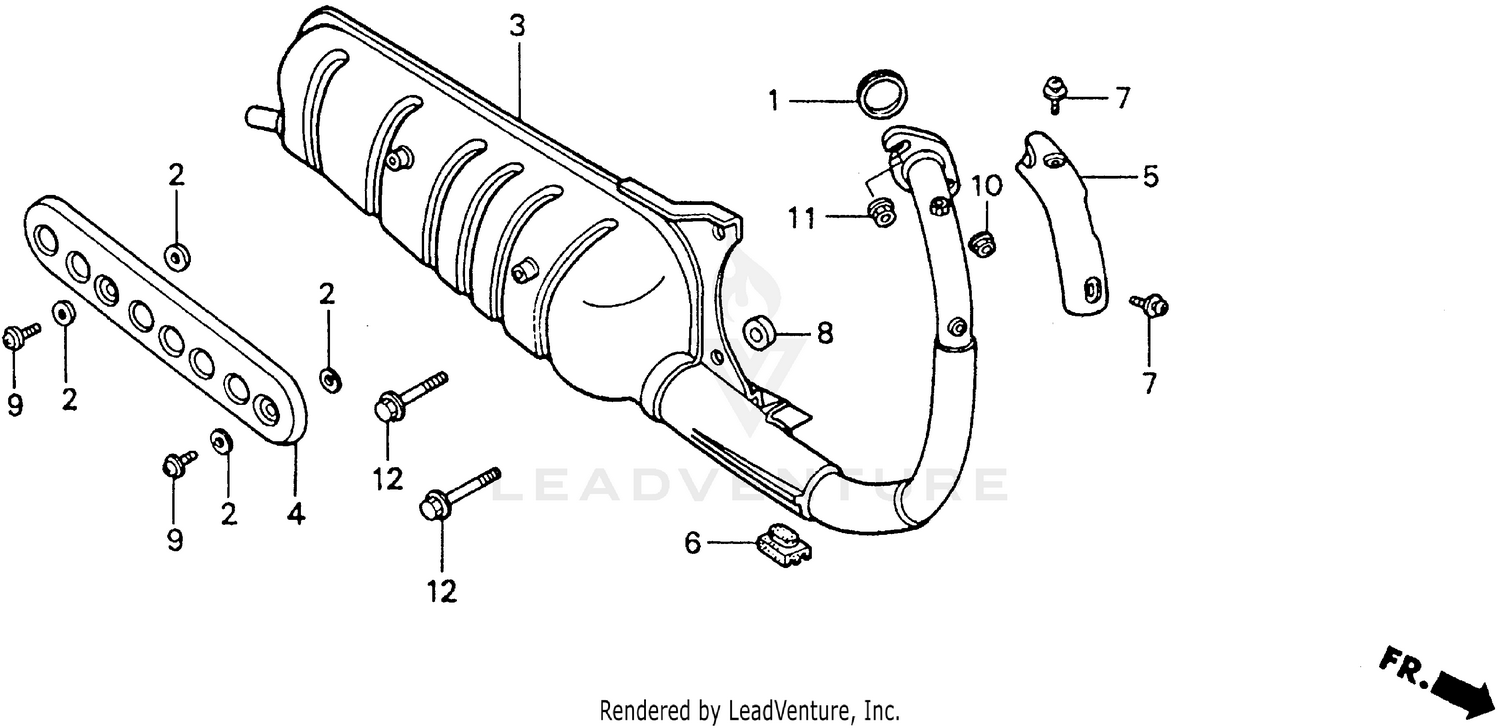

Muffler 88-93 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-GA7-000
Superseded by 18292-GY1-610
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, EX. PIPE
18291-147-000
Superseded by 18292-GY1-610
|
$7.96 | ||
|
Unavailable |
|||
|
#1
GASKET, EX. PIPE
18291-147-306
Superseded by 18292-GY1-610
|
$7.96 | ||
|
Unavailable |
|||
|
#1
GASKET, EX. PIPE
18292-GY1-610
|
$7.96 | ||
|
Unavailable |
|||
|
#2
GASKET, MUFFLER PROTECTOR
18292-GY1-860
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET, MUFFLER PROTECTOR
18292-KS3-920
Superseded by 18292-GY1-860
|
$3.69 | ||
|
Unavailable |
|||
|
#2
GASKET, MUFFLER PROTECTOR
18292-147-000
Superseded by 18292-GY1-860
|
$3.69 | ||
|
Unavailable |
|||
|
#3
MUFFLER, EX.
18300-GS7-670
|
$94.38 | ||
|
Unavailable |
|||
|
#4
PROTECTOR, MUFFLER *NH106* (HEATPROOF BLACK)
18318-GK8-003ZA
|
$9.83 | ||
|
Unavailable |
|||
|
#5
PROTECTOR, EX. PIPE
18325-GR1-003
|
$24.08 | ||
|
Unavailable |
|||
|
#6
RUBBER, STAND STOPPER
50505-GR1-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-WASHER (5X6)
90049-GR1-000
|
$2.10 | ||
|
Unavailable |
|||
|
#8
COLLAR, MUFFLER MOUNTING
90501-GK8-870
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-WASHER (5X10)
93891-05010-07
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, CAP (6MM)
90308-SB0-000
|
$6.08 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (8X28)
95700-08028-07
Superseded by 95701-08028-07
|
$1.42 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (8X28)
95701-08028-07
|
$1.42 | ||
|
Unavailable |
|||
