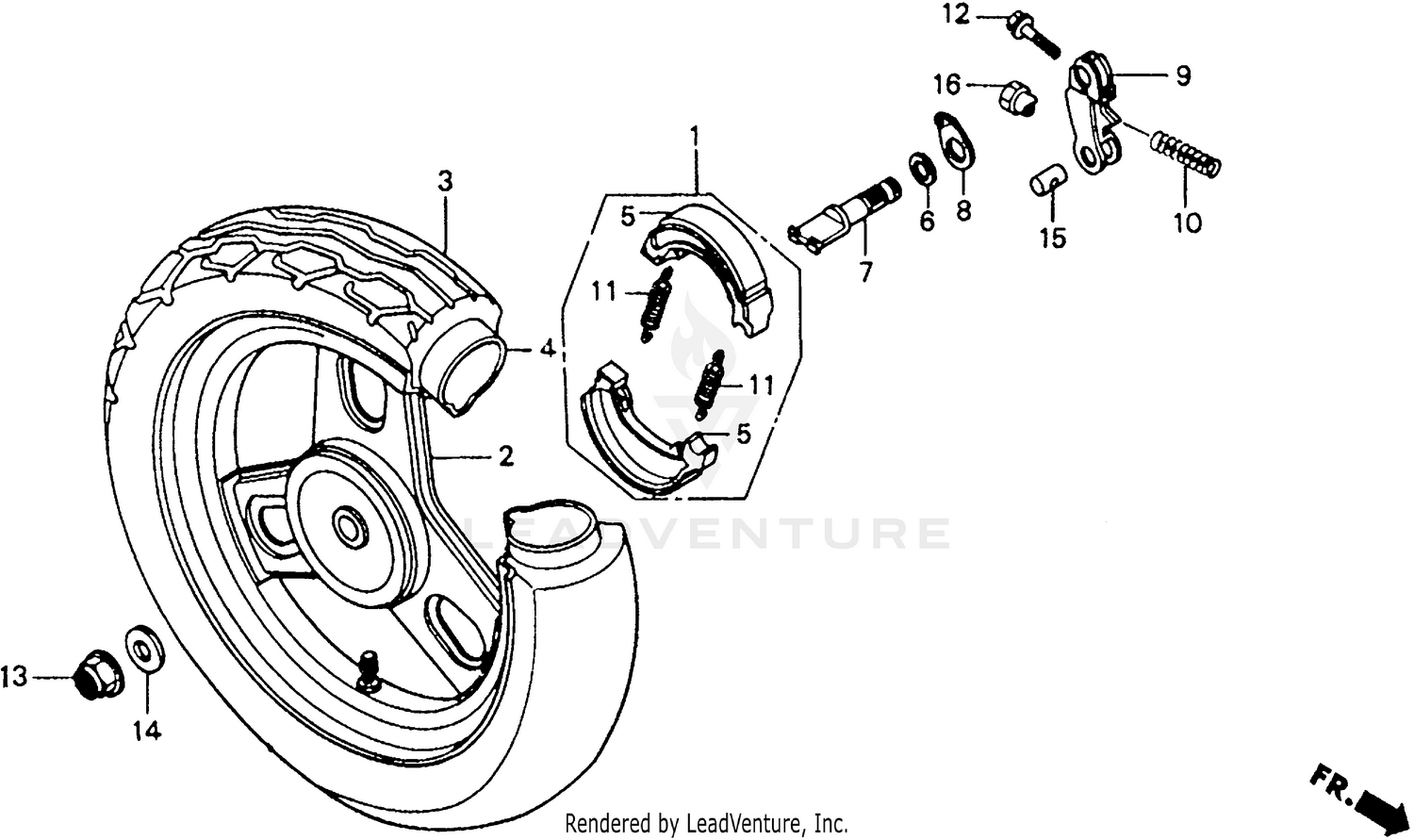

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE KIT, BRAKE
06430-GE8-003
Superseded by 06430-GE8-405
|
$22.82 | ||
|
Unavailable |
|||
|
#NI
SHOE KIT, BRAKE
06430-GE8-405
|
$22.82 | ||
|
Unavailable |
|||
|
#NI
SHOE KIT, BRAKE
431A2-GE8-003
Superseded by 06430-GE8-405
|
$22.82 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH138* (SHASTA WHITE)
42650-GR1-670ZB
Superseded by 42650-GS7-980ZA
|
$163.20 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH138* (SHASTA WHITE)
42650-GR1-671ZB
Superseded by 42650-GS7-980ZA
|
$163.20 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH138* (SHASTA WHITE)
42650-GR1-672ZB
Superseded by 42650-GS7-980ZA
|
$163.20 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH138* (SHASTA WHITE)
42650-GS7-980ZA
|
$163.20 | ||
|
Unavailable |
|||
|
#3
TIRE (3.00-10) (4PR 42J ML24D) (BS)
42711-GS7-671
|
$31.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.00-10) (4PR 42J MB35L) (INOUE)
42711-GS7-672
Superseded by 42711-GS7-673
|
$75.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.00-10) (4PR 42J MB35L) (INOUE)
42711-GS7-673
|
$75.44 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (2.50-10) (INOUE)
42712-GF0-005
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (2.50-10) (INOUE)
42712-GN2-622
Superseded by 42712-GF0-005
|
$10.35 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GN2-623
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GS7-003
Superseded by 42712-GN2-623
|
$11.64 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GW0-006
Superseded by 42712-GN2-623
|
$11.64 | ||
|
Unavailable |
|||
|
#5
SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
43120-GE8-003
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, BRAKE CAM
43134-196-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, RR. BRAKE
43141-GR0-000
Superseded by 43141-GR0-010
|
$16.19 | ||
|
Unavailable |
|||
|
#7
CAM, RR. BRAKE
43141-GR0-010
|
$16.19 | ||
|
Unavailable |
|||
|
#8
INDICATOR, RR. BRAKE
43145-GN2-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RR. BRAKE
43410-GK1-000
Superseded by 43410-GK1-010
|
$13.57 | ||
|
Unavailable |
|||
|
#9
ARM, RR. BRAKE
43410-GK1-010
|
$13.57 | ||
|
Unavailable |
|||
|
#10
SPRING, RR. BRAKE ARM
43472-161-000
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE SHOE
45133-028-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (5X25)
90112-187-000
Superseded by 90112-187-010
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (5X25)
90112-187-010
|
$2.73 | ||
|
Unavailable |
|||
|
#13
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
JOINT A, BRAKE ARM
95015-31001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT A, BRAKE ROD ADJUSTING
95015-41000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
