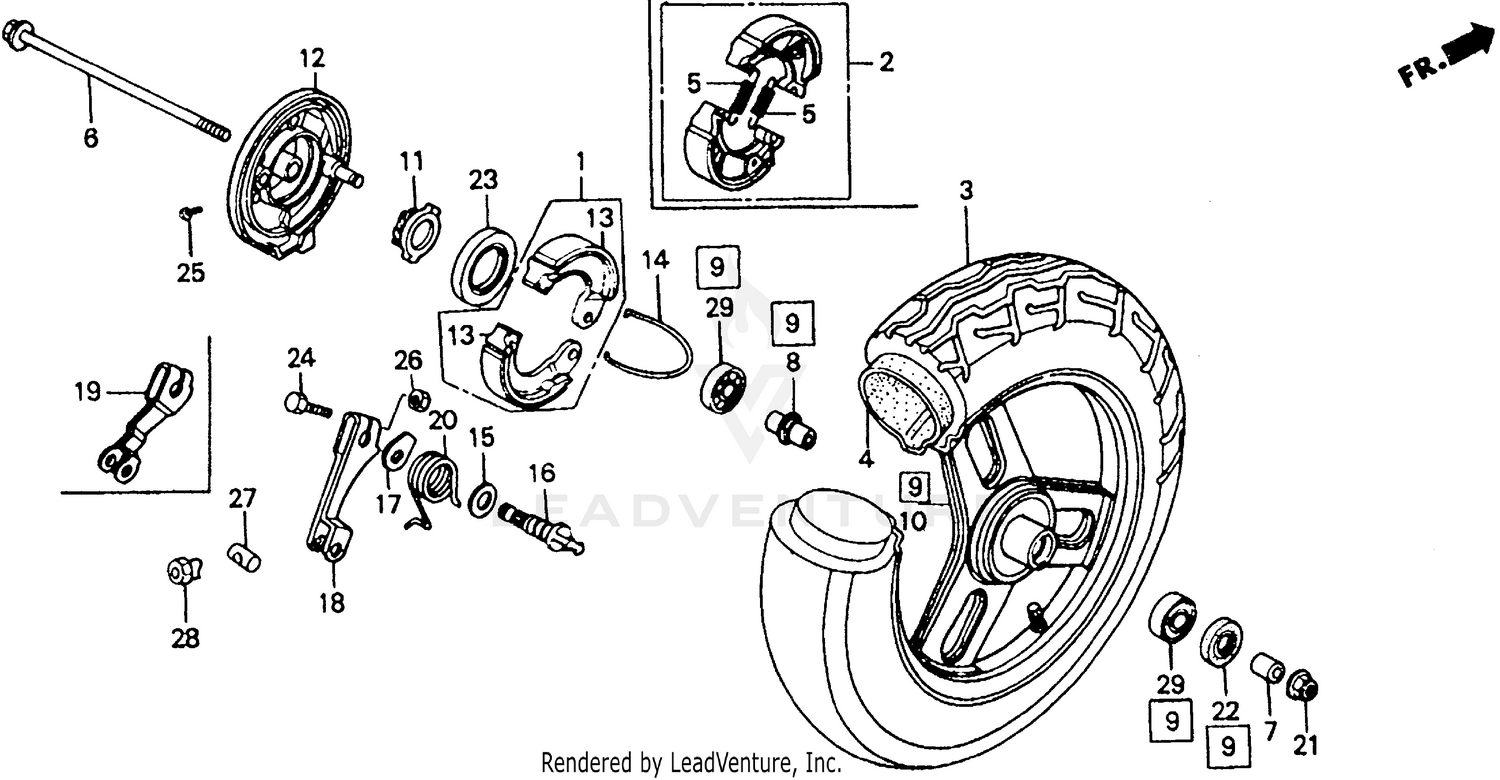

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE
06430-131-405
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE
451A2-147-672
Superseded by 06430-131-405
|
$18.59 | ||
|
Unavailable |
|||
|
#3
TIRE (3.00-10) (4PR 42J ML24D) (BS)
42711-GS7-671
|
$31.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.00-10) (4PR 42J MB35L) (INOUE)
42711-GS7-672
Superseded by 42711-GS7-673
|
$75.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.00-10) (4PR 42J MB35L) (INOUE)
42711-GS7-673
|
$75.44 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (2.50-10) (INOUE)
42712-GF0-005
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (2.50-10) (INOUE)
42712-GN2-622
Superseded by 42712-GF0-005
|
$10.35 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GN2-623
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GS7-003
Superseded by 42712-GN2-623
|
$11.64 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (3.00-10) (INOUE)
42712-GW0-006
Superseded by 42712-GN2-623
|
$11.64 | ||
|
Unavailable |
|||
|
#6
AXLE, FR. WHEEL
44301-GN2-000
|
$10.97 | ||
|
Unavailable |
|||
|
#7
COLLAR, FR. WHEEL SIDE
44311-GM4-000
|
$8.35 | ||
|
Unavailable |
|||
|
#8
COLLAR, FR. DISTANCE
44620-147-000
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WHEEL SET *NH138* (SHASTA WHITE)
44650-GM8-305ZB
|
$113.91 | ||
|
Unavailable |
|||
|
#10
WHEEL SET *NH138* (SHASTA WHITE)
44650-GM8-670ZD
Superseded by 44650-GM8-305ZB
|
$113.91 | ||
|
Unavailable |
|||
|
#10
WHEEL SET *NH138* (SHASTA WHITE)
44650-GM8-671ZD
Superseded by 44650-GM8-305ZB
|
$113.91 | ||
|
Unavailable |
|||
|
#11
GEAR, SPEEDOMETER
44806-GS7-003
|
$22.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL SUB, FR. BRAKE *NH138* (SHASTA WHITE)
45010-GS7-305ZA
|
$95.05 | ||
|
Unavailable |
|||
|
#13
SHOE SET, BRAKE
06430-131-405
|
$18.59 | ||
|
Unavailable |
|||
|
#13
SHOE, FR. BRAKE
43120-GZ9-003
|
$13.15 | ||
|
Unavailable |
|||
|
#13
SHOE, FR. BRAKE
45120-GE8-003
Superseded by 43120-GZ9-003
|
$13.15 | ||
|
Unavailable |
|||
|
#13
SHOE, FR. BRAKE
45120-GE8-505
Superseded by 43120-GZ9-003
|
$13.15 | ||
|
Unavailable |
|||
|
#14
SPRING, BRAKE SHOE
45133-044-000
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, BRAKE CAM
45134-165-890
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CAM, FR. BRAKE
45141-GR1-010
|
$13.81 | ||
|
Unavailable |
|||
|
#17
INDICATOR, FR. BRAKE
45145-GN2-000
|
$3.78 | ||
|
Unavailable |
|||
|
#18
ARM, FR. BRAKE
45410-GE8-000
Superseded by 45410-GT8-600
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, FR. BRAKE
45410-GT8-600
|
$16.18 | ||
|
Unavailable |
|||
|
#20
SPRING, BRAKE ARM RETURN
45435-GC3-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL SEAL (19X30.5X7) (ARAI)
90754-147-003
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
OIL SEAL (34X42X5)
91252-GF0-003
Superseded by 91252-GF0-004
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (34X42X5)
91252-GF0-004
|
$7.73 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (34X42X5)
91252-GK1-004
Superseded by 91252-GF0-004
|
$7.73 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (5X25)
92101-05025-0A
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (4X6)
93500-04006-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
JOINT A, BRAKE ARM
95015-31001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT A, BRAKE ROD ADJUSTING
95015-41000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (6200U)
96140-62000-10
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
