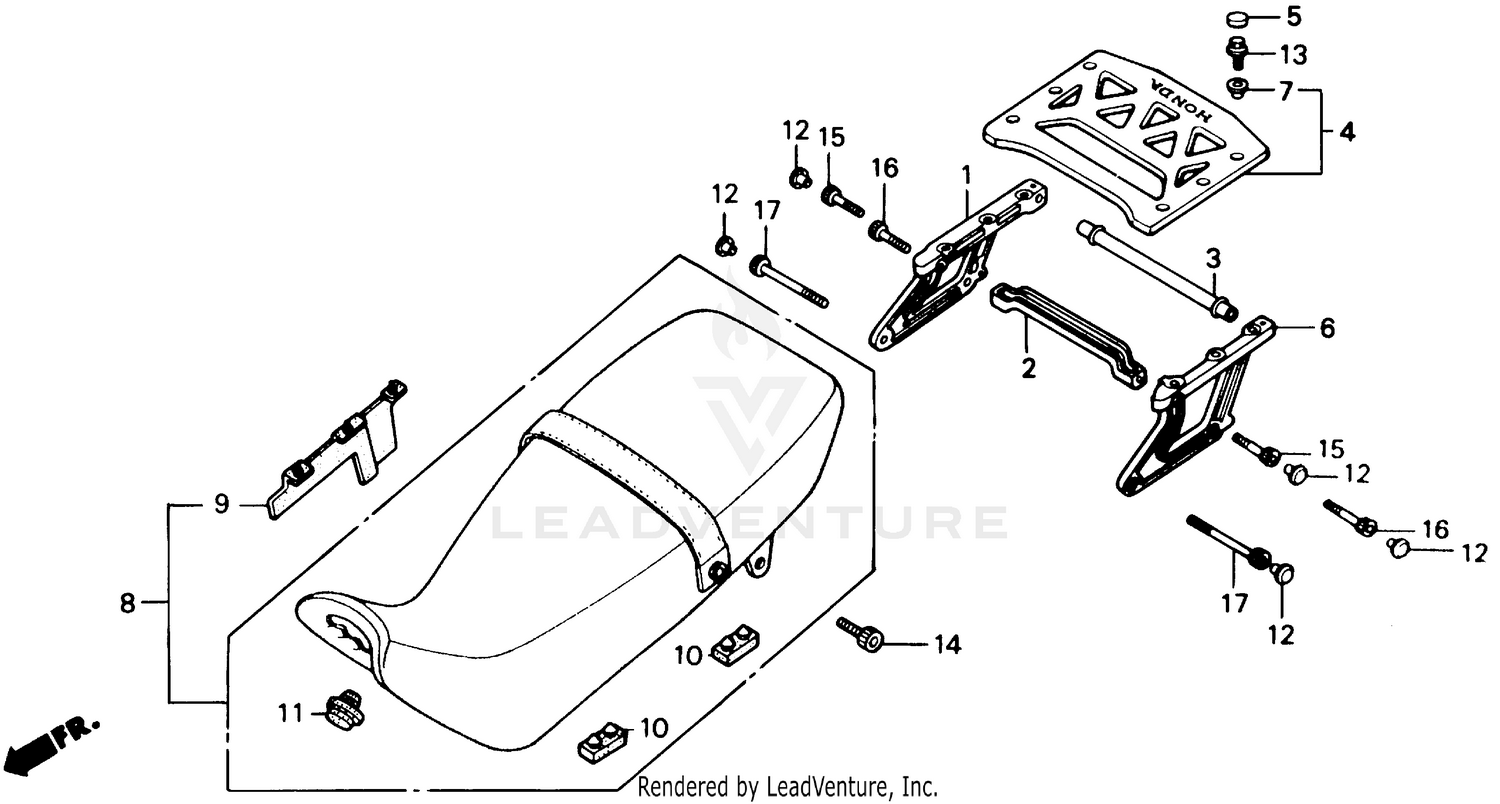

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARRIER, R. RR.
50310-MN9-000
|
$94.37 | ||
|
Unavailable |
|||
|
#2
GRIP, PASSENGER
50311-MN9-000
|
$36.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, CARRIER CROSS
50313-MK5-000
|
$19.86 | ||
|
Unavailable |
|||
|
#4
BASE, RR. CARRIER
50315-MK5-000
|
$32.40 | ||
|
Unavailable |
|||
|
#5
CUP, CARRIER BASE
50316-MK5-000
|
$3.17 | ||
|
Unavailable |
|||
|
#6
CARRIER, L. RR. (NOT AVAILABLE)
50320-MN9-000
|
$93.23 | ||
|
Unavailable |
|||
|
#7
COLLAR, FR. FENDER SETTING
61101-KB7-910
|
$3.47 | ||
|
Unavailable |
|||
|
#8
SEAT COMP,DOUBLE
77200-MN9-670ZA
Superseded by 77200-MW2-506
|
$310.38 | ||
|
Unavailable |
|||
|
#9
RUBBER, WATERPROOF
77201-MN9-300
|
$43.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, SEAT SETTING
77204-312-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, SEAT STOPPER
77211-MB0-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, SOCKET BOLT
91456-371-770
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (8X16)
96600-08016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (8X20)
96600-08020-07
|
$3.78 | ||
|
Unavailable |
|||
|
#16
BOLT, SOCKET (8X25)
96600-08025-07
|
$1.40 | ||
|
Unavailable |
|||
|
#17
BOLT, SOCKET (8X65)
96600-08065-07
|
$1.58 | ||
|
Unavailable |
|||
