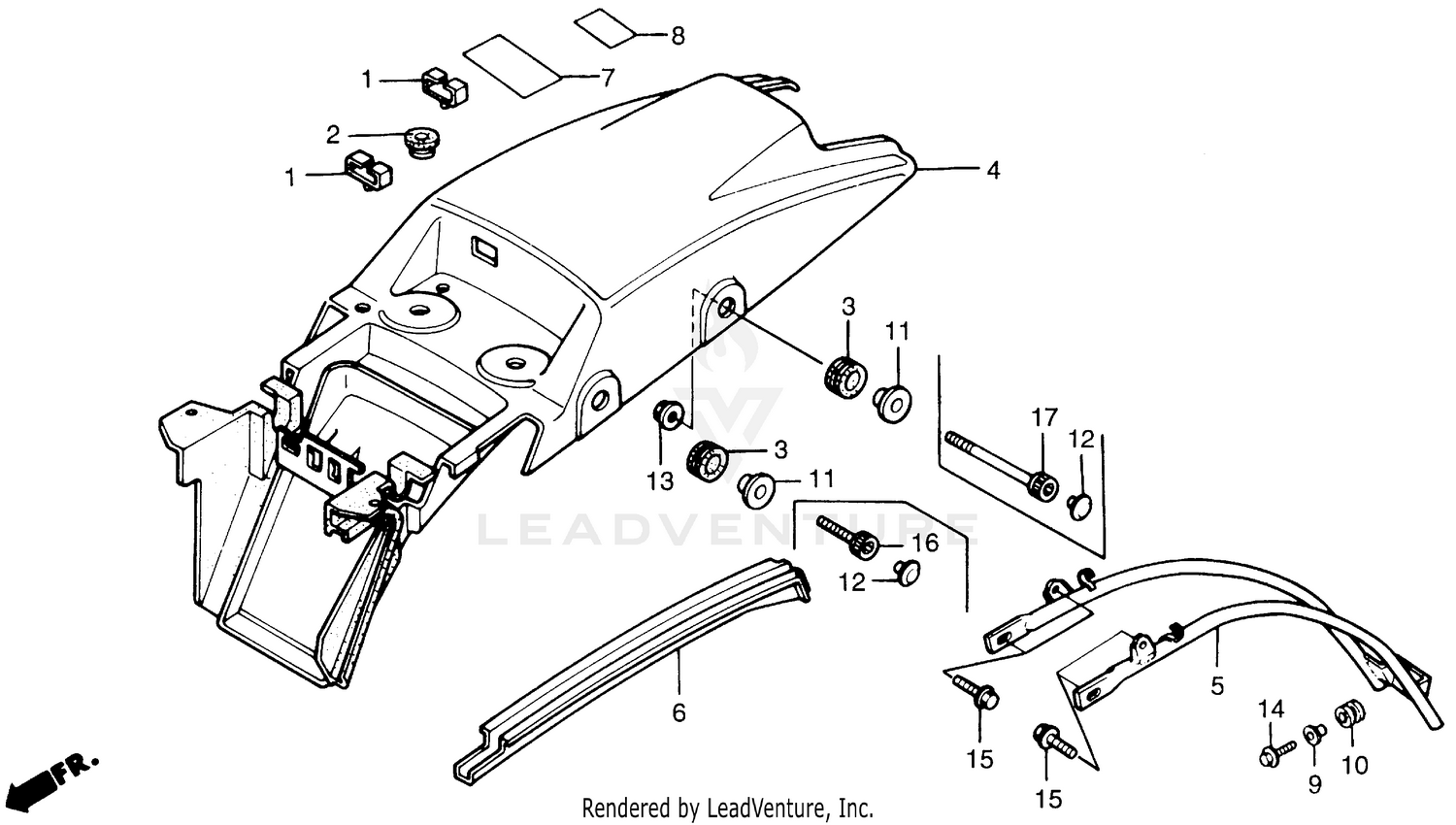

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, CABLE (NOT AVAILABLE)
32985-MG2-000
|
$2.92 | ||
|
Unavailable |
|||
|
#2
RUBBER, BATTERY BOX SETTING
50329-HA6-000
|
$3.38 | ||
|
Unavailable |
|||
|
#3
RUBBER, BATTERY BOX MOUNTING
50329-HA7-670
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER ASSY., RR. *B123MU* (ASTRO BLUE METALLIC-U)
80100-MN9-000ZE
|
$124.68 | ||
|
Unavailable |
|||
|
#5
PIPE, RR. FENDER SUPPORT
80110-MN9-870
Superseded by 80110-MN9-871
|
$87.07 | ||
|
Unavailable |
|||
|
#5
PIPE, RR. FENDER SUPPORT
80110-MN9-871
|
$87.07 | ||
|
Unavailable |
|||
|
#6
GUARD, WIRE HARNESS
80201-MN9-000
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, ACCESSORIES & LOADING
87512-MN9-870
|
$5.57 | ||
|
Unavailable |
|||
|
#8
LABEL, RR. CARRIER
87513-MN9-870
|
$3.33 | ||
|
Unavailable |
|||
|
#9
COLLAR, COVER MOUNTING
83505-HB7-000
Superseded by 83505-MN0-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, SIDE COVER
83504-HB7-000
|
$3.56 | ||
|
Unavailable |
|||
|
#11
COLLAR, MUFFLER MOUNTING
90555-MN9-670
Superseded by 18423-KR3-600
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X16)
96300-06016-07
|
$3.78 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X22)
96500-06022-07
Superseded by 96300-06022-07
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X12)
96300-08012-07
|
$3.78 | ||
|
Unavailable |
|||
