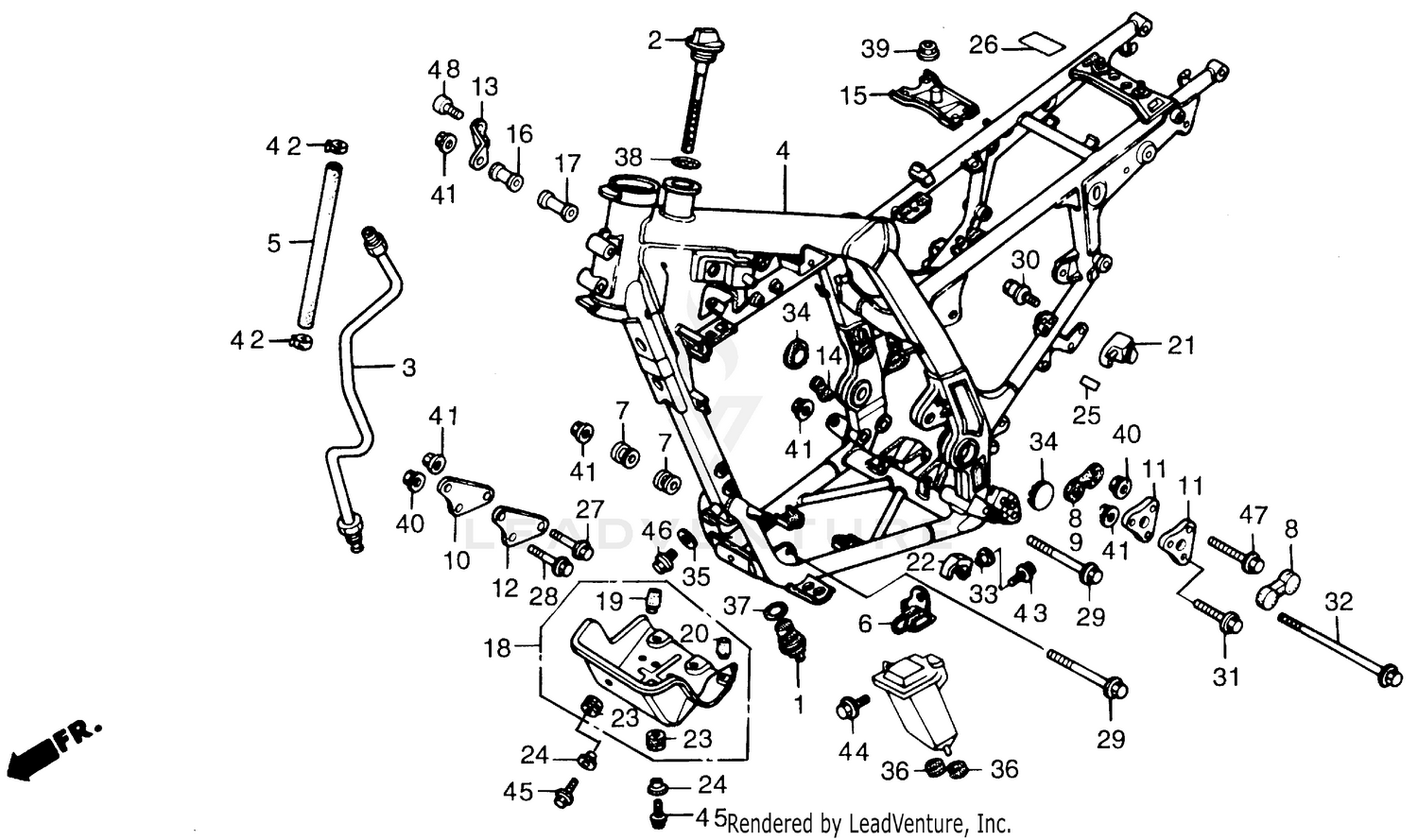

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STRAINER, OIL
15500-MG3-000
|
$51.32 | ||
|
Unavailable |
|||
|
#2
DIPSTICK, OIL
15650-MN9-000
|
$18.48 | ||
|
Unavailable |
|||
|
#3
PIPE C, OIL
15710-MN9-000
|
$42.28 | ||
|
Unavailable |
|||
|
#4
FRAME *NH146M* (ACCURATE SILVER METALLIC)
50100-MN9-870ZA
|
$2,083.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, BREATHER
50190-MN9-000
|
$18.31 | ||
|
Unavailable |
|||
|
#6
CLAMP, BREATHER TUBE
50197-MN9-000
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, ENGINE HANGER
50198-MN9-000
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, R. TANK GUARD
50211-KN5-670
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, R. FR. ENGINE HANGER
50221-MN9-000
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, ENGINE HANGER (UPPER)
50222-MN9-650
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, L. FR. ENGINE HANGER
50223-MAN-600
|
$33.18 | ||
|
Unavailable |
|||
|
#12
PLATE, L. FR. ENGINE HANGER
50223-MN9-000
Superseded by 50223-MAN-600
|
$33.18 | ||
|
Unavailable |
|||
|
#13
PLATE, RR. ENGINE HANGER (UPPER)
50224-MN9-000
|
$21.27 | ||
|
Unavailable |
|||
|
#14
PLATE, RR. ENGINE HANGER
50228-MN9-000
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, RR. FUEL TANK SETTING *NH146M* (ACCURATE SILVER METALLIC)
50230-MN9-000ZE
|
$20.43 | ||
|
Unavailable |
|||
|
#16
COLLAR, R. ENGINE MOUNTING
50250-HA0-000
|
$13.51 | ||
|
Unavailable |
|||
|
#17
COLLAR, L. ENGINE MOUNTING
50252-HA0-000
|
$13.41 | ||
|
Unavailable |
|||
|
#18
PLATE, SKID *B123MU* (ASTRO BLUE METALLIC-U) (NOT AVAILABLE)
50351-MN9-670ZA
|
$190.78 | ||
|
Unavailable |
|||
|
#19
RUBBER A, STOPPER
50352-434-000
|
$6.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RUBBER B, STOPPER
50354-434-000
|
$6.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOLDER ASSY., HELMET
50710-382-671
|
$82.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
SLIDER, CHAIN (LOWER)
52175-HB9-005
|
$22.93 | ||
|
Unavailable |
|||
|
#23
RUBBER, RR. FENDER CUSHION
80101-283-000
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, TAILLIGHT MOUNTING
84706-163-670
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#25
LABEL, HELMET HOLDER
87511-323-670
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL, COLOR (B123MU) (TYPE1)
87565-MN9-870ZA
|
$1.84 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (10X80)
90101-MN9-000
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X80)
90112-KT0-670
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (10X110)
90105-MG3-000
Superseded by 90115-HA0-770
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT B, SPECIAL (6MM)
90107-195-860
|
$3.59 | ||
|
Unavailable |
|||
|
#30
BOLT B, SPECIAL (6MM)
90107-428-000
Superseded by 90107-195-860
|
$3.59 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (10X65)
90108-KL4-000
|
$8.02 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (10X239)
90117-KK0-000
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (10X242)
90117-KK0-010
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR, REFLECTOR SETTING
90129-MA2-000
|
$3.05 | ||
|
Unavailable |
|||
|
#34
CAP, PIVOT
90302-MN9-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
GROMMET A, AIR CLEANER HOUSING
90505-MC4-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (25X3)
91305-384-750
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (28X3)
91307-MK5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP, TUBE (D12.5)
95002-41250-04
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE (10X16)
96300-10016-00
|
$1.59 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE (8X65)
96300-08065-00
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (8X65)
96500-08065-00
Superseded by 96300-08065-00
|
$2.73 | ||
|
Unavailable |
|||
|
#48
BOLT, SOCKET (8X35)
96600-08035-17
|
$1.59 | ||
|
Unavailable |
|||
