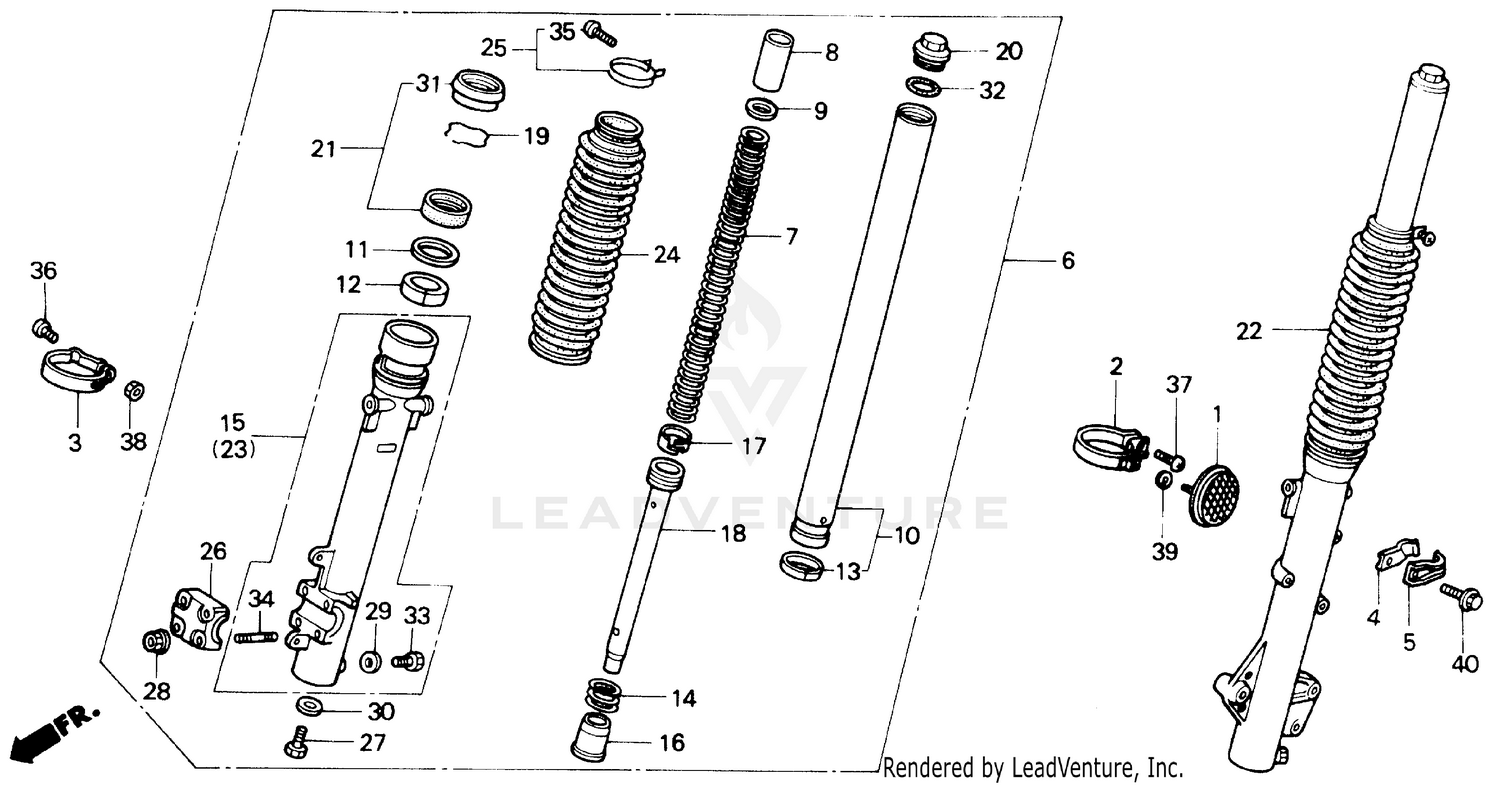

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX (NOT AVAILABLE)
33742-MN9-670
Superseded by 33741-KJ2-670
|
$21.01 | ||
|
Unavailable |
|||
|
#2
BAND, REFLEX REFLECTOR
33743-MN9-670
|
$19.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, SPEEDOMETER CABLE
44832-MAN-620
|
$3.71 | ||
|
Unavailable |
|||
|
#3
CLAMP, SPEEDOMETER CABLE
44832-MN9-000
Superseded by 44832-MAN-620
|
$3.71 | ||
|
Unavailable |
|||
|
#4
CLAMP A, BRAKE HOSE
45464-MM9-000
|
$4.32 | ||
|
Unavailable |
|||
|
#5
CLAMP B, BRAKE HOSE
45465-MM9-000
|
$4.32 | ||
|
Unavailable |
|||
|
#6
FORK ASSY., R. FR. *NH146M/B72L* (SHOWA) (ACCURATE SILVER/NEBULA BLUE)
51400-MN9-671ZA
|
$825.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, FR. FORK (SHOWA)
51401-MN9-702
|
$65.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SPRING
51402-MG2-701
|
$11.90 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING
51403-KF0-003
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, FR. FORK (SHOWA)
51410-MN9-701
|
$305.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, BACK-UP
51412-KF0-003
|
$8.17 | ||
|
Unavailable |
|||
|
#12
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, GUIDE (SHOWA)
51414-MN5-003
Superseded by 51414-KCR-003
|
$16.98 | ||
|
Unavailable |
|||
|
#13
BUSH, SLIDER
51415-MG2-701
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FR. REBOUND
51416-KF0-003
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
CASE, R. (LOWER) *NH146M* (SHOWA) (ACCURATE SILVER METALLIC)
51420-MN9-671ZA
|
$318.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIECE, OIL LOCK (SHOWA)
51432-MN9-701
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, PISTON
51437-KF0-003
|
$7.63 | ||
|
Unavailable |
|||
|
#18
PIPE, SEAT (SHOWA)
51440-MN9-701
|
$50.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FR. FORK
51455-MM9-003
|
$51.27 | ||
|
Unavailable |
|||
|
#21
SEAL SET, FR. FORK
51490-KAE-003
|
$43.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL SET, FR. FORK
51490-KF0-305
Superseded by 51490-KAE-003
|
$43.51 | ||
|
Unavailable |
|||
|
#22
FORK ASSY., L. FR. *NH146M/B72L* (SHOWA) (ACCURATE SILVER/NEBULA BLUE)
51500-MN9-671ZA
|
$825.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE, L. (LOWER) *NH146M* (SHOWA) (ACCURATE SILVER METALLIC)
51520-MN9-671ZA
|
$318.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT, FR. FORK *B72L* (NEBULA BLUE) (NOT AVAILABLE)
51611-MM9-013ZC
|
$35.37 | ||
|
Unavailable |
|||
|
#25
BAND, FR. FORK BOOT
51612-KF0-003
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, AXLE *NH146M* (ACCURATE SILVER METALLIC)
51634-MK5-003ZC
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (8X27)
90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
DUST SEAL, FR. FORK
91254-KF0-003
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (33.2X2.4)
91356-KF0-003
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (3X20)
93500-03020-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
