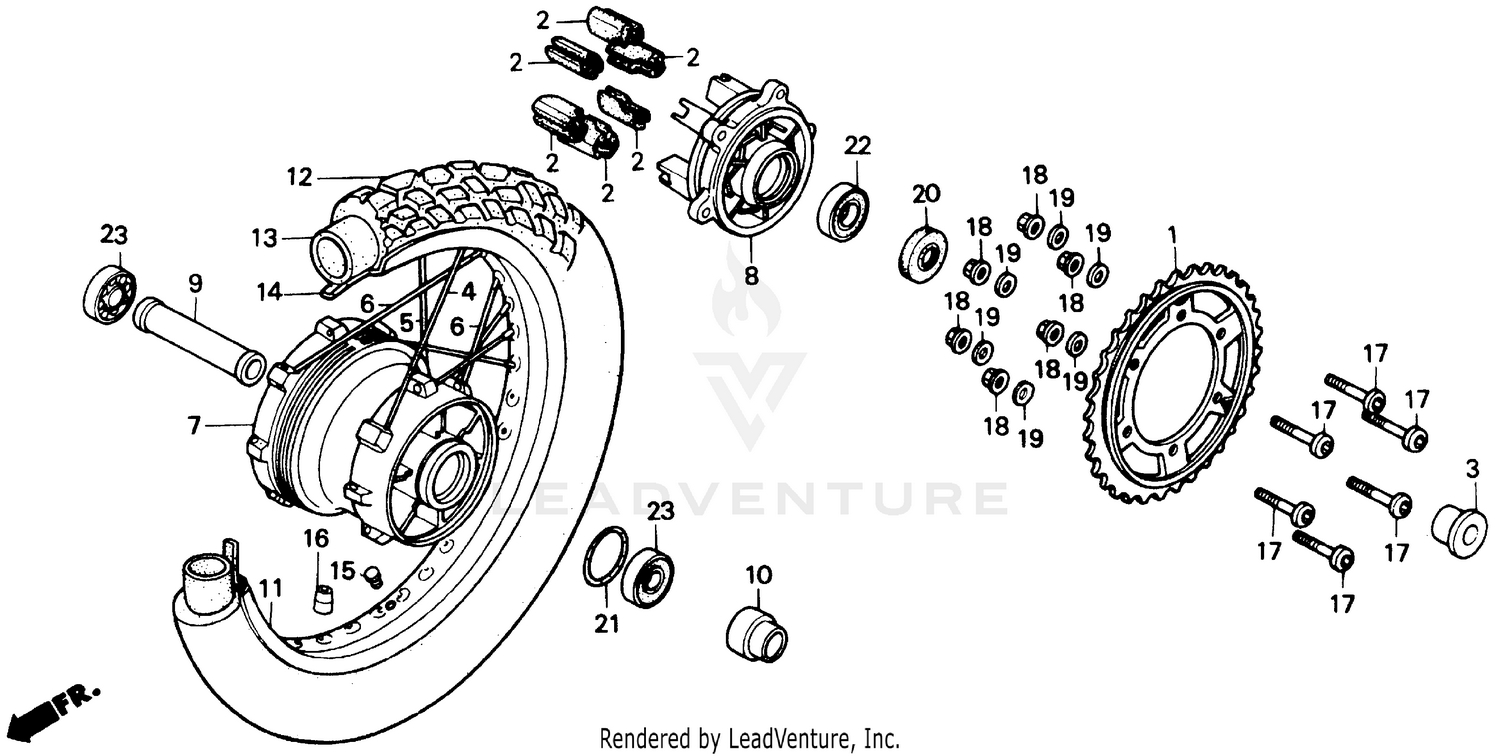

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (45T)
41200-MN9-000
Superseded by 41200-MN9-505
|
$91.40 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (45T)
41200-MN9-505
|
$91.40 | ||
|
Unavailable |
|||
|
#2
RUBBER, RR. WHEEL DAMPER
41241-MC4-010
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, RR. WHEEL SIDE
42311-KE7-010
|
$18.22 | ||
|
Unavailable |
|||
|
#4
SPOKE SET A, RR. (A9X212)
426A0-MN9-000
Superseded by 42610-MN9-405
|
$3.70 | ||
|
Unavailable |
|||
|
#4
SPOKE SET A, RR. (A9X212)
42610-MN9-405
|
$3.70 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, RR. (A9X214)
426A0-MN9-670
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET B, RR. (A9X210)
426B0-MN9-000
Superseded by 42611-MN9-405
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET B, RR. (A9X210)
42611-MN9-405
|
$3.87 | ||
|
Unavailable |
|||
|
#7
HUB, RR. WHEEL *NH129M* (MAX GRAY METALLIC)
42601-MN9-670ZA
|
$518.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, FINAL DRIVEN
42611-MN9-670
|
$209.80 | ||
|
Unavailable |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42620-KZ9-000
|
$18.62 | ||
|
Unavailable |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42620-MN9-671
Superseded by 42620-KZ9-000
|
$18.62 | ||
|
Unavailable |
|||
|
#10
COLLAR B, RR. AXLE DISTANCE
42625-MC4-000
Superseded by 42625-MAN-620
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIM, RR. WHEEL
42701-MN9-671
|
$366.11 | ||
|
Unavailable |
|||
|
#12
TIRE, RR. (120/90-17) (64S TW42A) (BS)
42711-MN9-013
|
$73.51 | ||
|
Unavailable |
|||
|
#12
TIRE, RR. (120/90-17) (64S K560) (DUNLOP) (NOT AVAILABLE)
42711-MN9-005
|
$86.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE, RR. (120/90-17) (64S K560) (DUNLOP) (NOT AVAILABLE)
42711-MN9-023
Superseded by 42711-MN9-005
|
$86.70 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (5.10-17) (INOUE)
08400-37100
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, TIRE (5.10-17) (INOUE)
42712-KB7-902
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (5.10-17) (INOUE)
42712-MA0-003
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (5.10-17) (INOUE)
42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (120/90-17) (BS)
42712-MN9-003
|
|||
|
Unavailable |
|||
|
#14
FLAP, TIRE (2.15-17) (BS)
42713-MG7-003
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAP, TIRE (2.15-17) (BS)
42713-425-772
Superseded by 42713-MG7-003
|
$9.75 | ||
|
Unavailable |
|||
|
#15
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER (20G)
44606-283-000
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPROCKET FIXING
90128-MM9-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (10MM)
90465-MM9-000
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (28X47.2X7) (ARAI)
91252-MC4-003
Superseded by 91252-MC4-013
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL SEAL (28X47.2X7) (ARAI)
91252-MC4-005
Superseded by 91252-MC4-013
|
$8.76 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (28X47.2X7) (ARAI)
91252-MC4-013
|
$8.76 | ||
|
Unavailable |
|||
|
#21
O-RING (54X2)
91302-317-700
Superseded by 91307-MB0-003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (54X2)
91307-MB0-000
Superseded by 91307-MB0-003
|
$4.05 | ||
|
Unavailable |
|||
|
#21
O-RING (54X2)
91307-MB0-003
|
$4.05 | ||
|
Unavailable |
|||
|
#22
BEARING, RADIAL BALL (6204UU)
96150-62040-10
|
$22.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6203UU)
96150-62030-10
|
$18.27 | ||
|
Unavailable |
|||
